Magnetrol eclipse Enhanced Model 705 User Manual

43

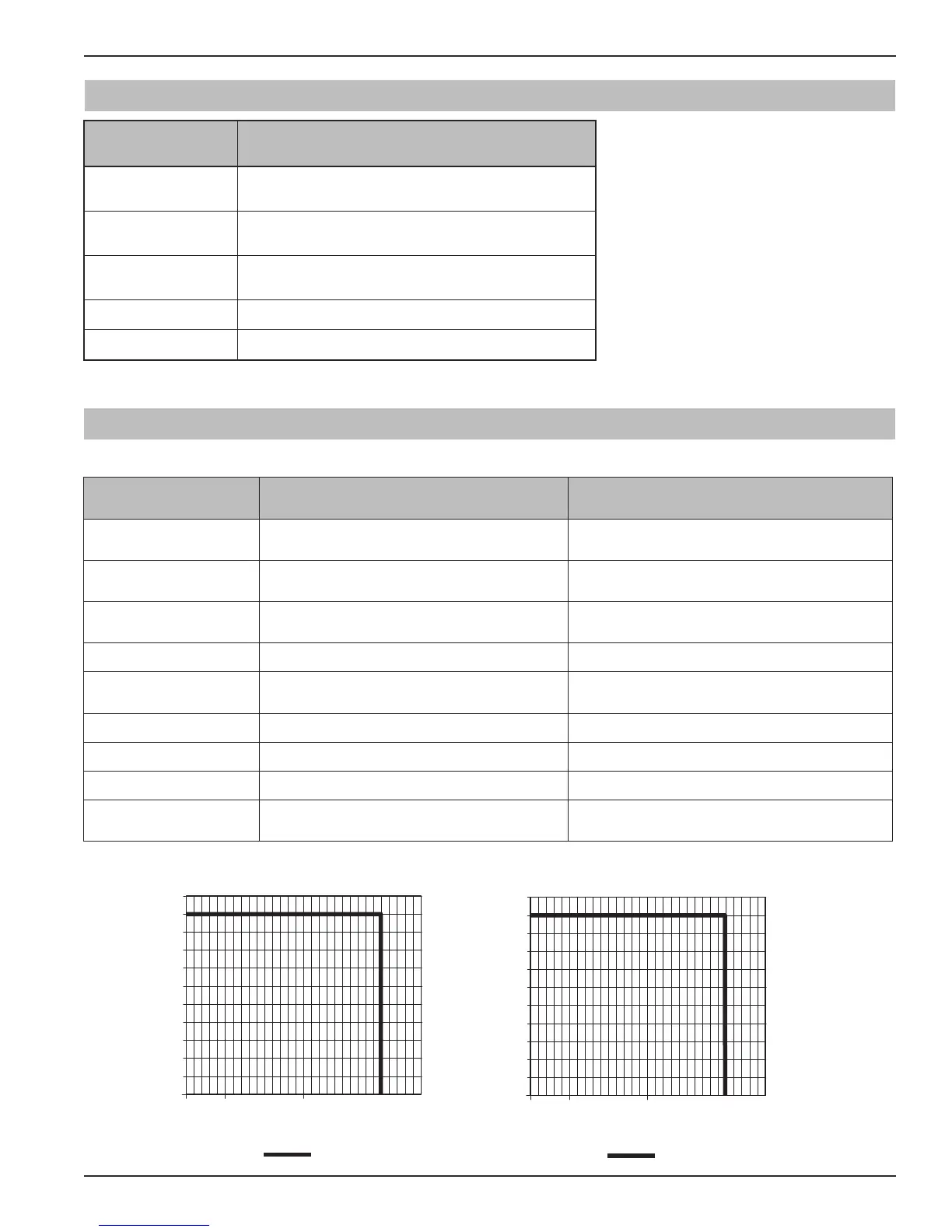

57-642 ECLIPSE Model 705 Guided Wave Radar Transmitter for Hygienic Industries
Model
Hygienic
(7xF-E or 7xH-x)
Maximum
Process Temperature
+300° F @ 200 psig
(+150° C @ 13.7 bar)
Maximum
Process Pressure
200 psig @ +300 °F
(13.7 bar @ 150 °C
Maximum Viscosity
10,000
(consult factory if severe agitation/turbulence)
Dielectric Range
≥1.9
Hermeticity
N/A
7.3 Process Conditions
Single Rod Probes
7.4 Probe Specifications
Temperature/Pressure Charts
0
100
200
50 100 300200
Process Pressure (psig)
Process Temperature (
°
F) (max. 300)
7XF/7XH
Model 7xF–E 7xH–x
Wetted Metallic Parts
316L SS, <15 R
a
max. electropolished finish
(Optional: Hastelloy C, AL6XN SS)
316L SS, <15 R
a
max. electropolished finish
(Optional: Hastelloy C, AL6XN SS)
Elastomer and Polymeric
Wetted Parts
TFE (GRAS 21CFR177-1550 and USP <88>
Class VI at 121° C)
PEEK and O-ring (Viton or EPDM) (GRAS 21CFR177
and USP <88> Class VI at 121°C
Diameter
0.5" (13 mm)
0.25" (7 mm) for
3
⁄4” tri-clamp
0.5" (13 mm)
Blocking Distance – Top
0–36" (0–91 cm)–Probe length dependent (adjustable) 0–36" (0–91 cm)–Probe length dependent (adjustable)
Process Connection
3
⁄4" – 4" Tri-clamp
flange
3
⁄4" – 4" Tri-clamp
flange
Transition Zone (Top)
Application Dependent Application Dependent
Transition Zone (Bottom)
1" (2.5 cm) @ ε
r
>10
1" (2.5 cm) @ ε
r
>10
Pull Force/Tension
N/A N/A
Side Load
Not more than 3" deflection at
end of 72" (183 cm) probe
Not more than 3" deflection at
end of 72" (183 cm) probe
0
6.9
13.8
10 38 15093
Process Pressure (bar)
Process Temperature (
°
C) (max. 150)
7XF/7XH
