5
57-642 ECLIPSE Model 705 Guided Wave Radar Transmitter for Hygienic Industries
1.1.2 Configuration Information
Some key information is needed to configure the
ECLIPSE transmitter. Complete the following operating
parameters table before beginning configuration.
D
isplay Question Answer
P
robe Model What probe model is listed on the
model information?
(first four digits of probe model number) _____________
Probe Mount Set to flange when using tri-clamp
mounting Flange
Measurement What is the desired measurement? Choices
Type are: Level only, volume, interface level
or interface level and volume. _____________
Level Units What units of measurement will be
used? (inches, centimeters, feet or meters)
(AI block parameter. Not selectable at
t
ransmitter on Model 705 Fieldbus)
_____________
Probe Length What is the probe length?
(Note that the original probe may have been
s
hortened by the skid or vessel manufacturer
to fit the vessel.)
_____________
Level Offset The desired level reading when the
liquid is at the end of the probe. _____________
Dielectric What is the dielectric constant range
of the process medium? (Upper layer
dielectric for interface applications) _____________
Loop Control Is the output current to be controlled
by level or volume? _____________
Set 4.0 mA What is the 0% reference point for the
4.0 mA value? (EU_0 value for
F
OUNDATION fieldbus) _____________
Set 20.0 mA What is the 100% reference point for
the 20.0 mA value? (EU_100 value for
F
OUNDATION fieldbus) _____________
(Top 6" (152 mm) of Single Rod probes is within
Blocking Distance)
1.2 QuickStart Mounting
NOTE: Confirm the configuration style and process connection
size/type of the ECLIPSE transmitter. Ensure it matches the
requirements of the installation before continuing with the
QuickStart installation.

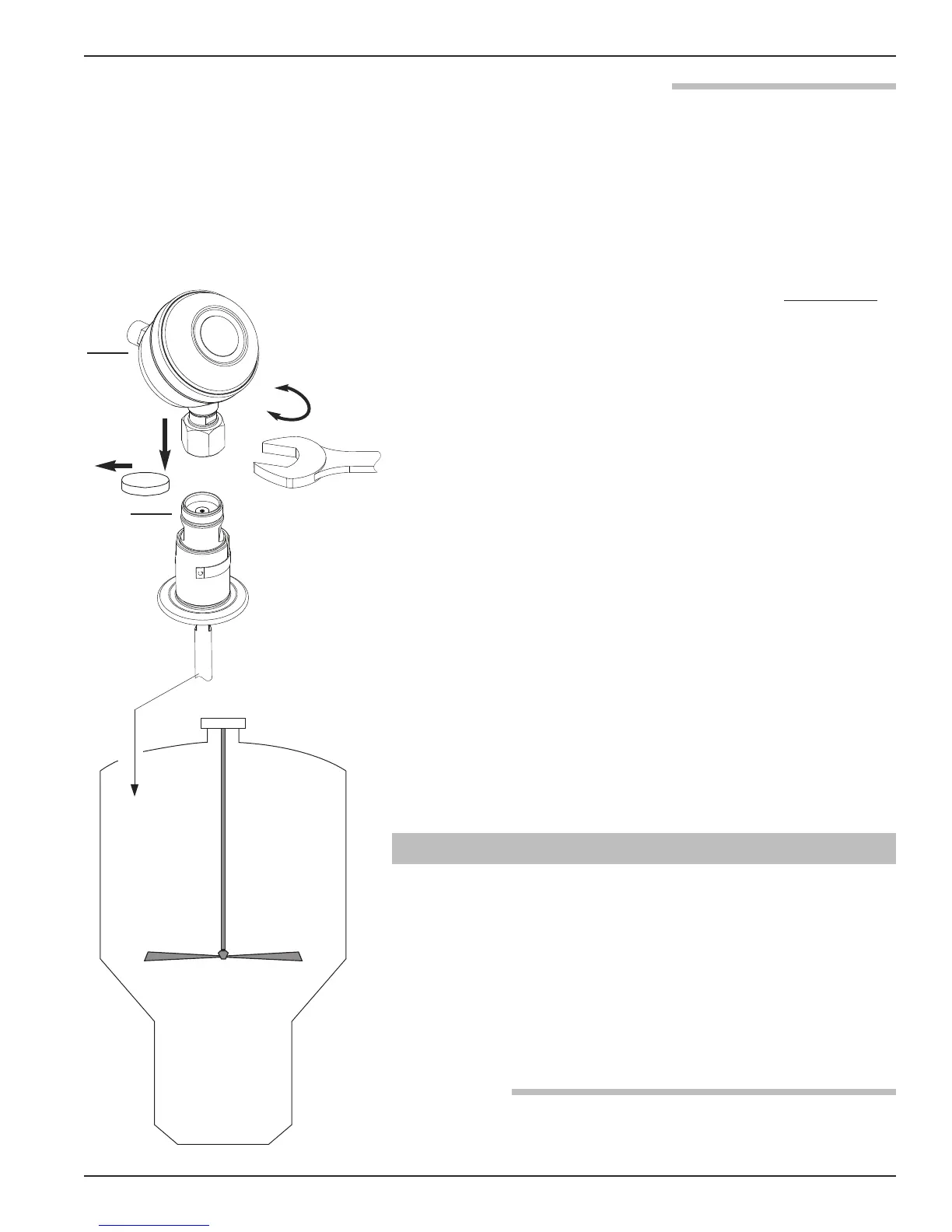

① Confirm the model and serial numbers on the nameplates
of the ECLIPSE probe and transmitter are identical.
NOTE: For optimum performance, it is highly recommended to keep
the transmitter and probe matched as a set.
1.2.1 Probe
② Attach probe rod to process connection using soft jaw
wrench [tighten to 20–25 inch-lbs. (2.25–3 Nm)].
②
Æ
±
①
∞
Ø
≤
①
