3. If necessary, add the proper mix of
pure water and anti-freeze.
Cool-
ing system drain cocks are located
at the bottom of the radiator and
on the side of the engine. They
must be closed securely during
operation.
(If there is any leakage,
refer to pages 5-9.)

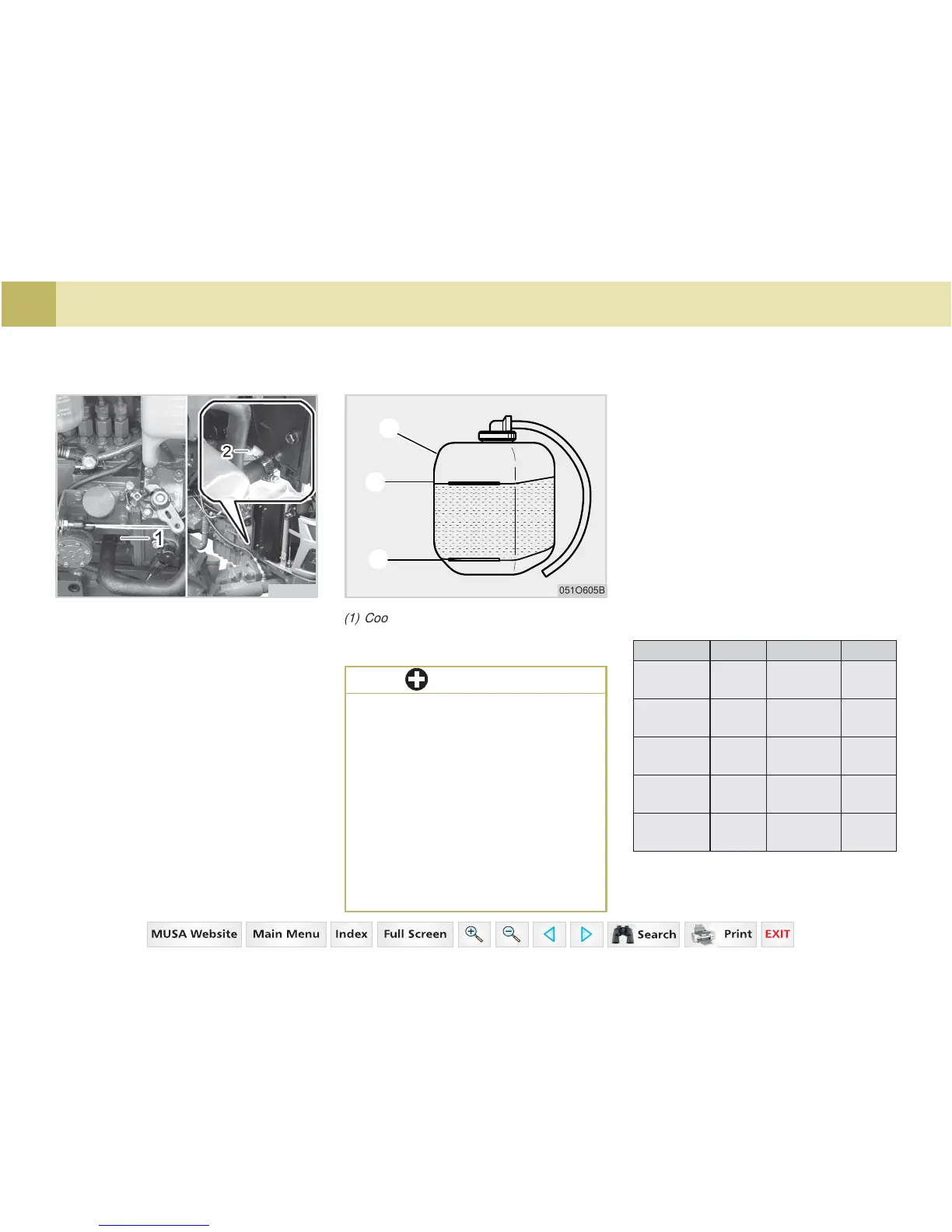

051O604B
(1) Coolant Drain Plug
(2) Coolant Drain Cock
1
A
B
051O605B
(1) Coolant Reserve Tank
(A) Full (B) Low
Do not use dirty water or sea-
water for coolant.
Check radiator cap condition
and tighten securely after ser-
vice.
Do not overfill the reserve
tank, if equipped.
When coolant is added, start
the engine and check again be-
fore it gets hot. It may require
additional coolant.
1. To discharge coolants, always
open plugs for discharge that are
located on the side of the crank
case and lower part of radiator,
and open the radiator cap, too.
You cannot discharge coolant ful-
ly when the cap is closed. (To dis-
charge coolant from reservoir tank,
separate the overflow pipe from
the radiator cap.)
2. COOLANT QUANTITY
Model
Quantity
Model
Quantity
3C093LW
3C100LW
1.6ℓ 4A200LW 3.9ℓ
3A150LW 3.3ℓ 4A200TLW 4.0ℓ
3A139LW 3.3ℓ 4A220LW 3.6ℓ
3A165LW 2.8ℓ 4A220TLW 3.8ℓ
3B183LW 3.0ℓ 4B243LW 3.9ℓ
CHANGING COOLANT
※ The coolant mentioned above is
applied only for the engine.
IMPORTANT
