5
-12
DIESEL ENGINE

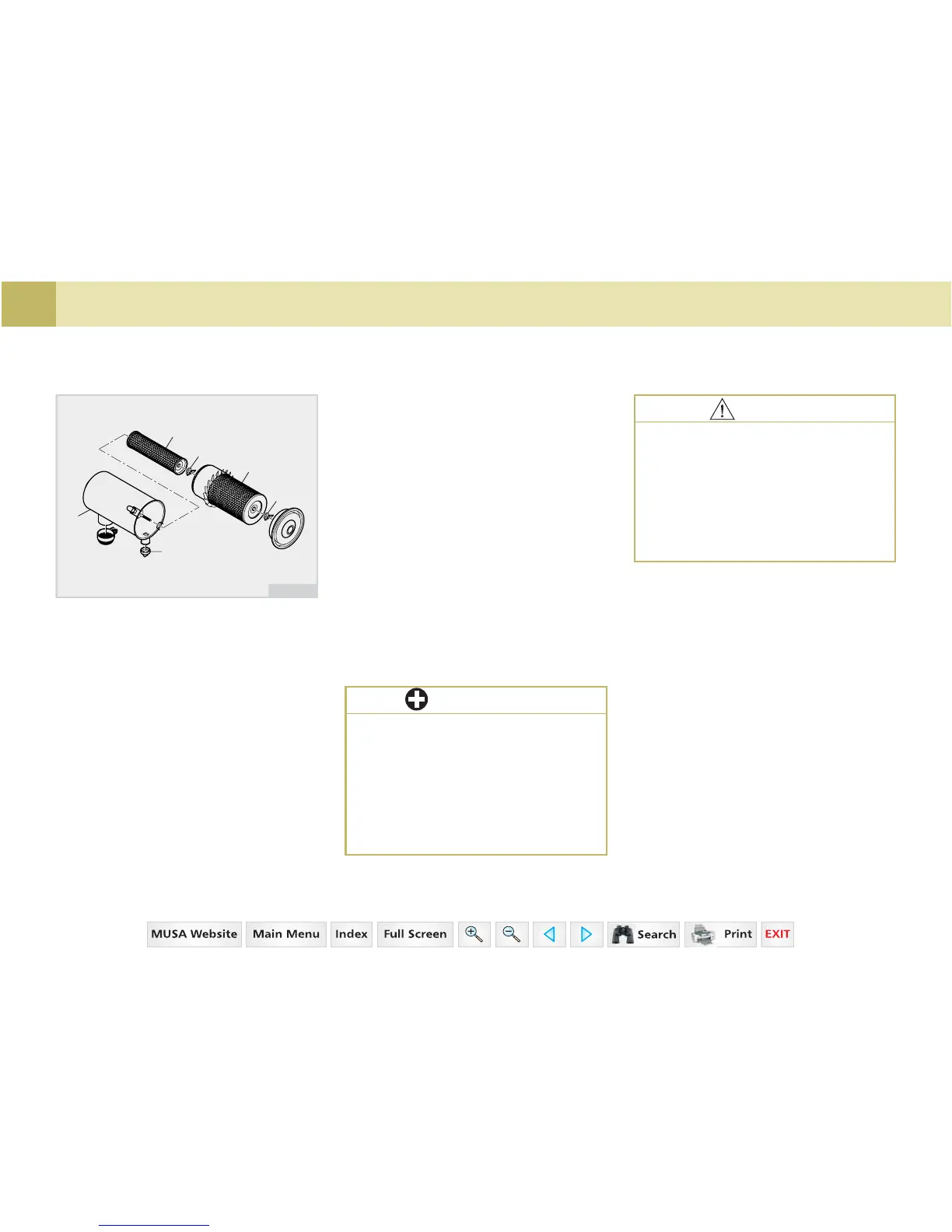

AIR CLEANER (OPTIONAL)
1. Never use oil in a dry-element type
air fi lter.
2. Squeeze the evacuator valve open
to ensure that larger dust particles
are expelled from the air cleaner
body (canister) – at least weekly;
daily under dusty conditions.
3. Wipe the inside of the air cleaner
body with a clean cloth when ser-
vicing the air cleaner.
(1) Aircleaner Body (3) Wing-Head Bolt
(2) Element (4) Evacuator Valve
4. Dust can be cleaned from the fil-
ter element with compressed air.
Always blow from the inside out,
and never use air pressure greater
than 100 PSI.
5. Oily or extremely dirty filters may
be cleaned by soaking the ele-
ment in a detergent for 15 minutes.
Rinse thoroughly and allow to air
dry completely. Inspect the ele-
ment for damage before reinstall-
ing.
6. Replace the element yearly or af-
ter 6 cleanings.
2
2
3
3
1
4
051O607B
Ensure that the wing nut for
the filter element is tight. A
loose element or loose cover
will allow dust ingestion that
can severely damage the en-
gine. Always check air intake
clamps for tightness.
BATTERY (OPTIONAL)
To avoid personal injury:
Avoid contact with battery
electrolyte. Sulfuric acid will
burn the skin and destroy
clothing. If contact occurs,
flush thoroughly with clean
water. Wear eye protection.
The battery may be damaged due to
improper treatment. Please charge
the battery fully with the proper meth-
od.
1. Keep the battery fully charged to
avoid downtime.
2. Check the electrolyte level during
routine service. Add distilled water
when the level is low. Do not over-
fill. Flush any spillage with clean
water to prevent injury or equip-
ment damage.
3. When recharging the battery, con-
nect the charger and the battery
with positive to positive and nega-
tive to negative.
IMPORTANT
CAUTION
To Next Page
