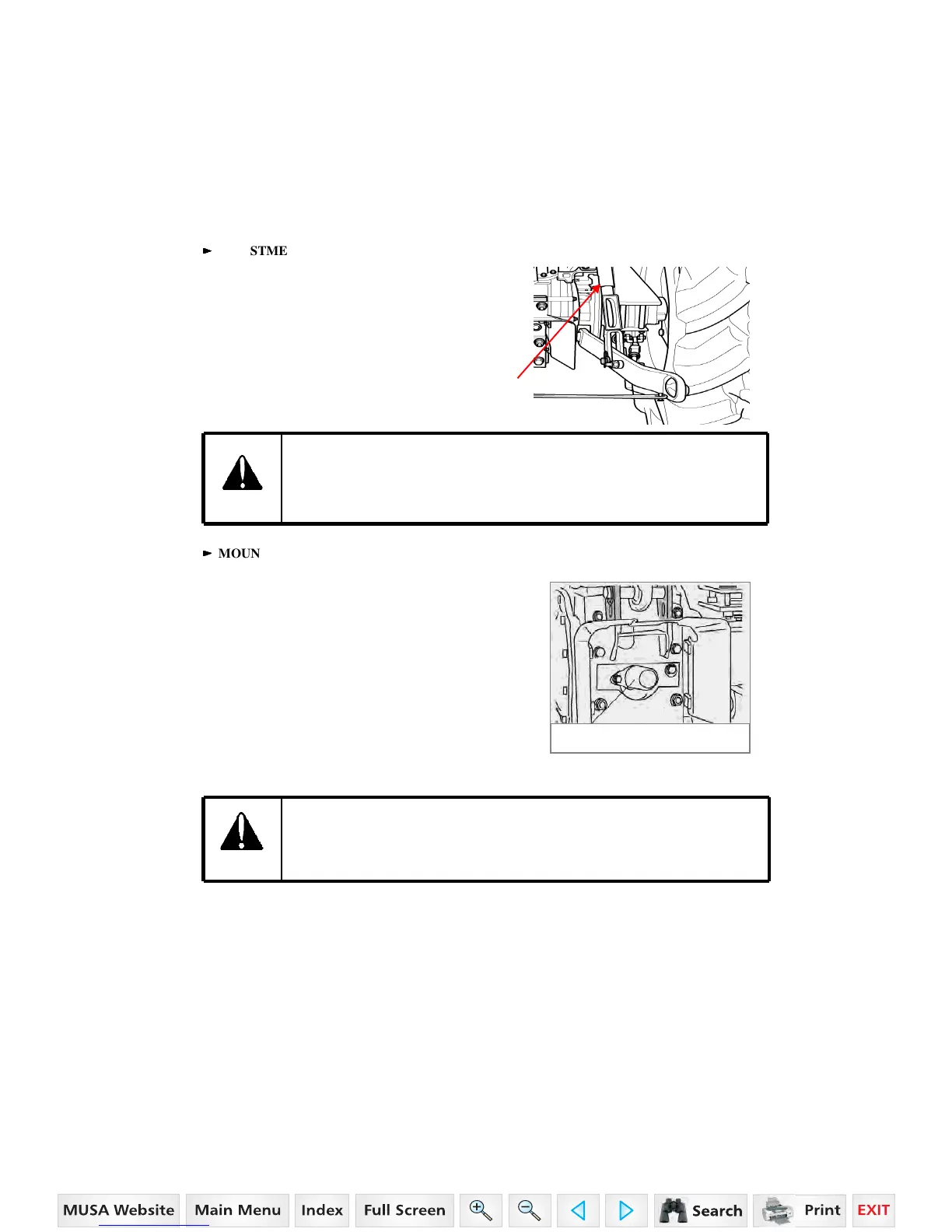

Mahindra 4010 HST - Adjustment of the Yoke Rod on the Lower Link; Mounting Implement

Do not attach a PTO shaft with the engine running and ensure all safety shields are
in place.
Only use drawbar to tow and keep the 3 point linkage in raised position when
toeing with the drawbar.
Position can create unbalance causing the Tractor to roll-over & Result the death
or serious injury.
Danger
►
►
►
► MOUNTING IMPLEMENT
If the PTO is used, remove the safety cover off the PTO shaft.
Adjust the yoke rod on the lower links to suit the implement
in use. Attach the left lower link, then attach the right lower
link using the adjusting handle on the leveling box if required.
Attach the top link. Attach the PTO shaft to the tractor if used,
making sure that it is locked in place.
Adjust the check chains to suit the implement and tighten the
locknuts. To remove an implement reverses the procedure
►
►►
► ADJUSTMENT OF THE YOKE ROD ON THE LOWER LINK
For different applications change the position of the
Yoke rod on the lower link holes as shown and insert
the pin in the direction of the arrow.
Caution
Rear PTO Shaft Cover
49
Lift Rod
