UNIVERSAL SYMBOLS

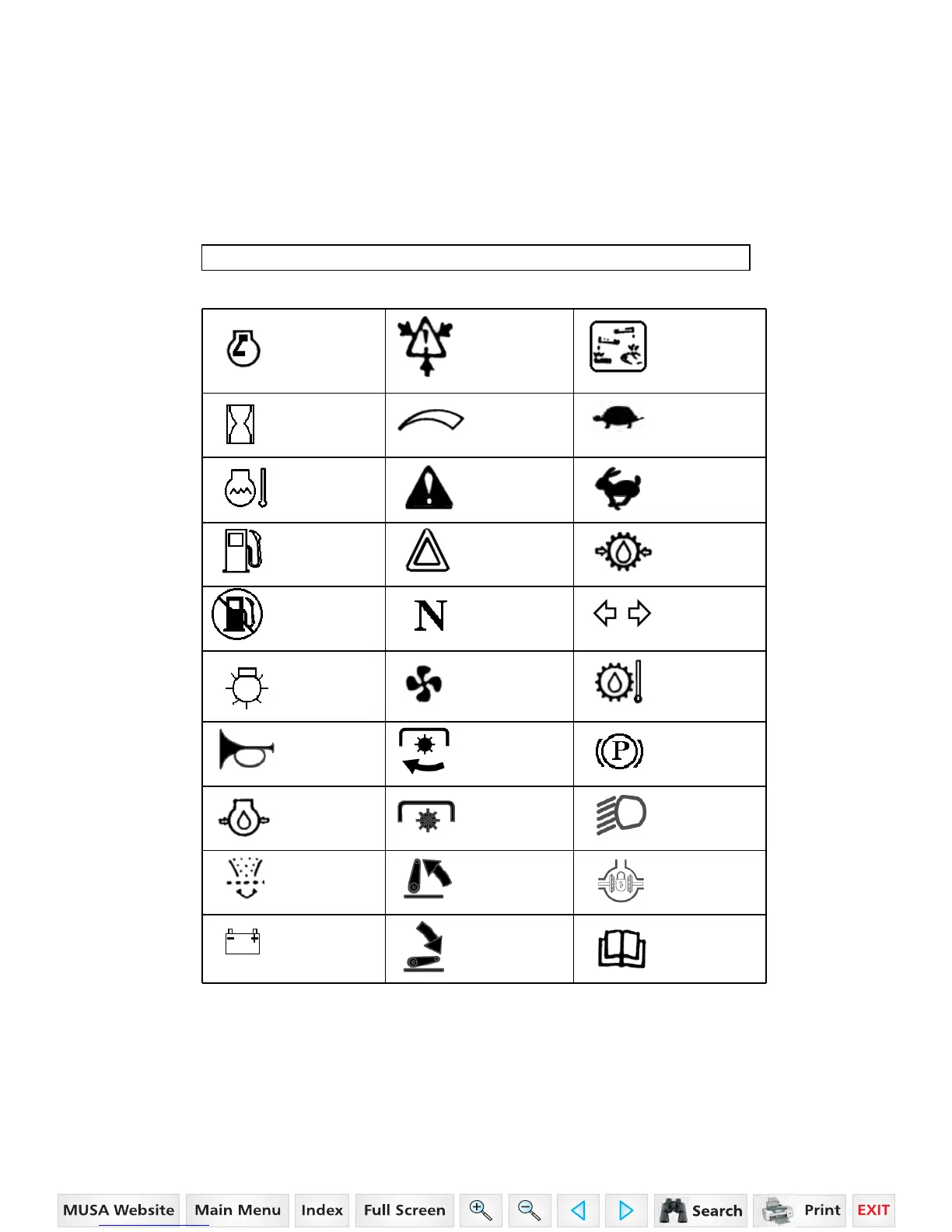

Some of the universal symbols have been shown below with an indication of their meaning
Engine speed
rev/minX100)
Pressured-
open slowly
Corrosive
substance
Hours,
recorded
Continuous
variable
”Tortoise”
Slow or
minimum Setting
Engine
coolant
temperature
Warning
”Hare” fast or
maximum
setting
Fuel level
Hazard
warning
Transmission
oil pressure
Engine
Stop
control
Neutral Turn signal
Lights Fan
Transmission
oil temperature
Horn
Power take
off engaged
Parking brake
Engine oil
pressure
Power
take off
disengaged
Work lamps
Air filter
Lift arm/raise
Differential
lock
Battery charge Lift arm/lower
See
operator’s
manual
