Mahindra 4010 HST User Manual

►
►
►

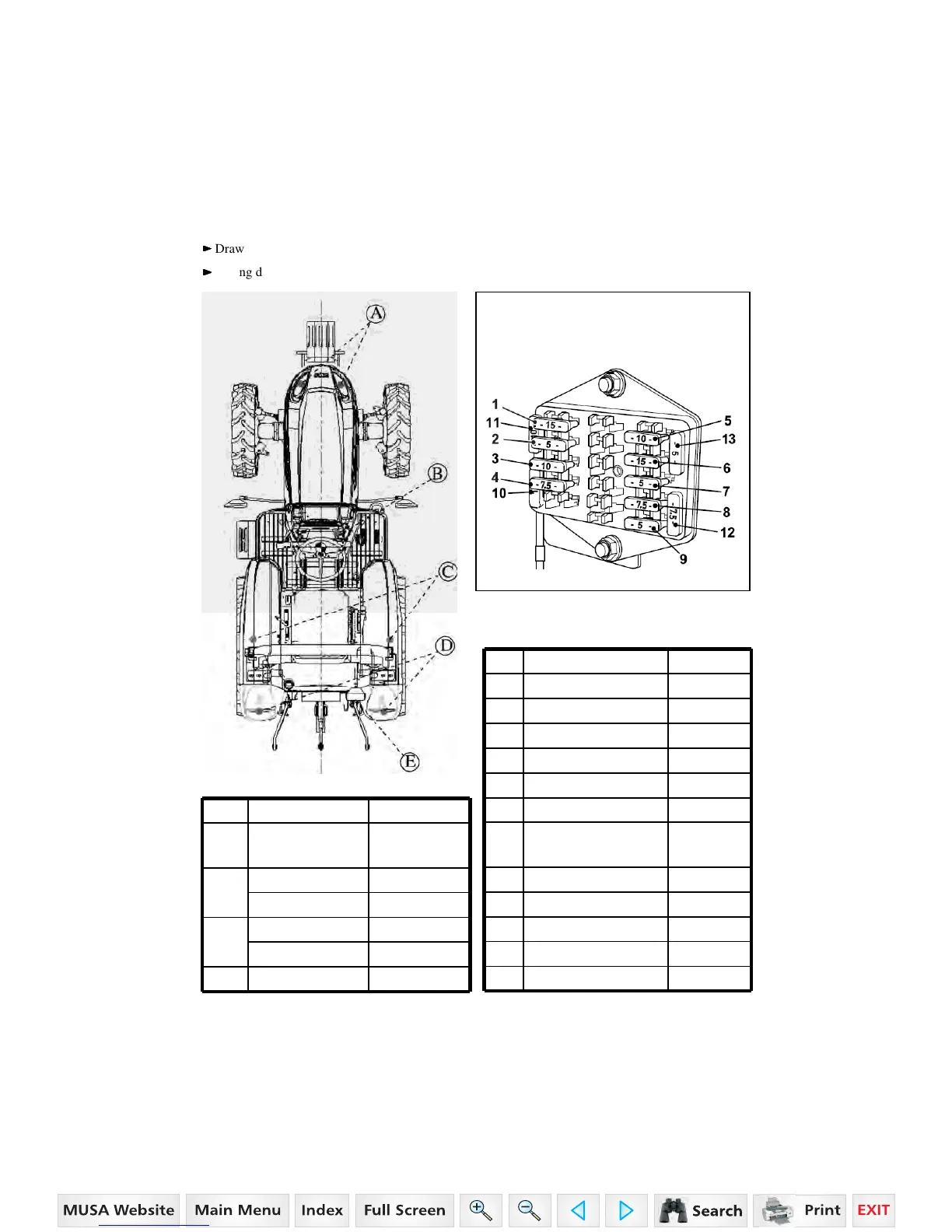

► Drawing for fixing position of the fuse
►
►►
► Wiring diagram of the electric instrument
A Head lamp 12V/55W/60W
B
Meta panel Light
(Instrument)
12V/3.4W
C
Turn Signal Lamp 12V/21W
Tail Lamp) 21/5W
D
Stop Lamp 21/5W
Turn Signal Lamp 12V/21W
E Working Lamp 12V/25W
* Main Fuse
1
Light / Horn 15A
2
Panel 5A
3
Turn Signal Lamp 10A
4
Working Light 7.5A
5
Hazard 10A
6
Coupler 15A
7
Controller Glow Timer 5A
8
PTO, Cruise,
Engine Stop
7.5A
9
Stop Lamp 5A
10
Spare -
11
Sp
are -
12
Spare -
13
Spare -
86
