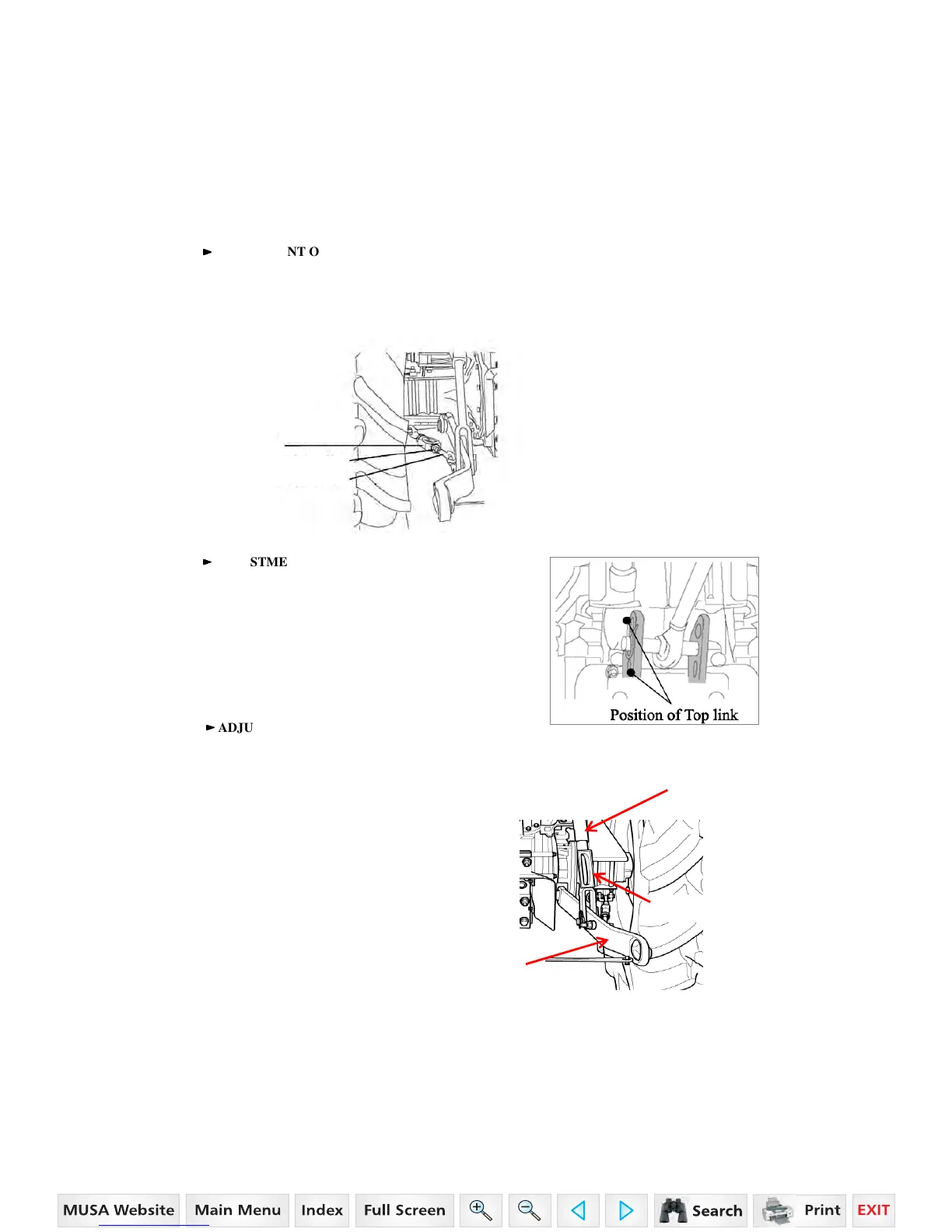

► ADJUSTMENT OF THE LIFT ROD
Adjust the length of the lift rod by screwing the Adjusting
Handle (Turnbuckle) in or out. Adjust the length of the lift rod
as necessary to set the implement in its working position parallel
to the ground.
►
►►
► ADJUSTMENT OF THE TOP LINK
Lengthening or shortening the top link will change the angle of
the implement. The locating hole of the top link varies with the
type of implement used. The most common locations are the 2
nd
and 3
rd
hole from the top.
►
►►
► ADJUSTMENT OF THE CHECK CHAIN
To adjust the check chain turn the turnbuckle to lengthen or shorten the chain and tighten the
lock nut when the correct adjustment is achieved.
Turn buckle
Fixing Nut
Check chain
48
Lift Rod
Adjusting Handle
Lower Link
