LOWERING SPEED CONTROL KNOB FOR THE 3 POINT HITCH
This knob controls the downward speed of the
hydraulics three point linkage and is located below the Seat.
After finishing the work, always lower the implement to the ground and switch off
the engine, Set the parking brake to avoid injuries and accidents .
To raise the implement : Pull the lever backward.
To lower the implement : Push the lever forward.
►
►►
►

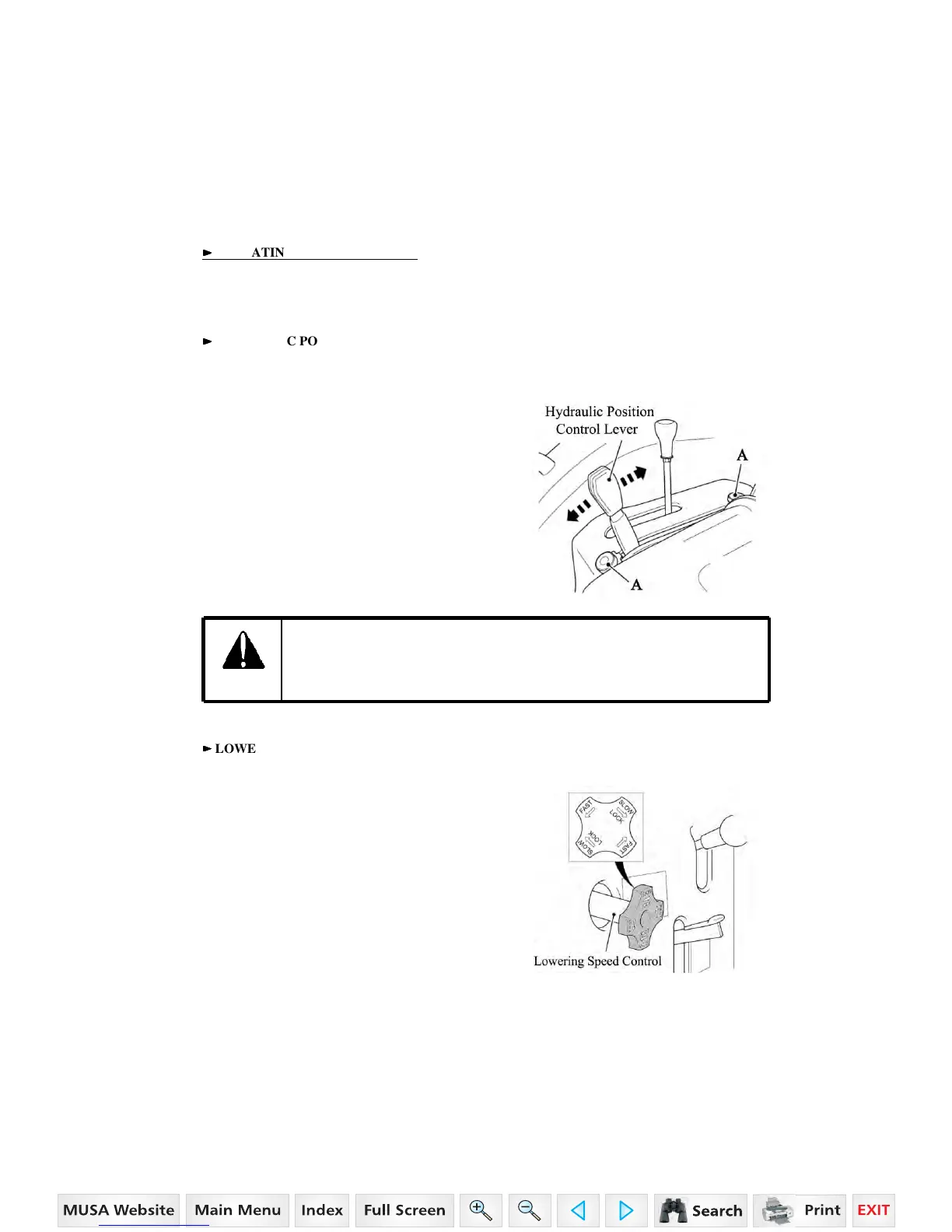

OPERATING THE HYDRAULICS
The hydraulics are powered with an engine driven hydraulic pump and controlled with a position
control lever mounted beside the driver.
►
►►
►
HYDRAULIC POSITION CONTROL LEVER
Hydraulic Position Control Lever is located on the RHS of operator.
Implements can be raised and lowered with the hydraulic
position control lever and can be stopped at any position
by stopping the lever.
To ensure a consistent working depth the adjustable stop (A)
can be set to ensure that the implement returns to the same
depth every time.
To slow the downward speed- Turn the knob clockwise.
To increase the downward speed, turn the knob anticlockwise.
To lock the knob clockwise.
Do not over tighten the knob.
