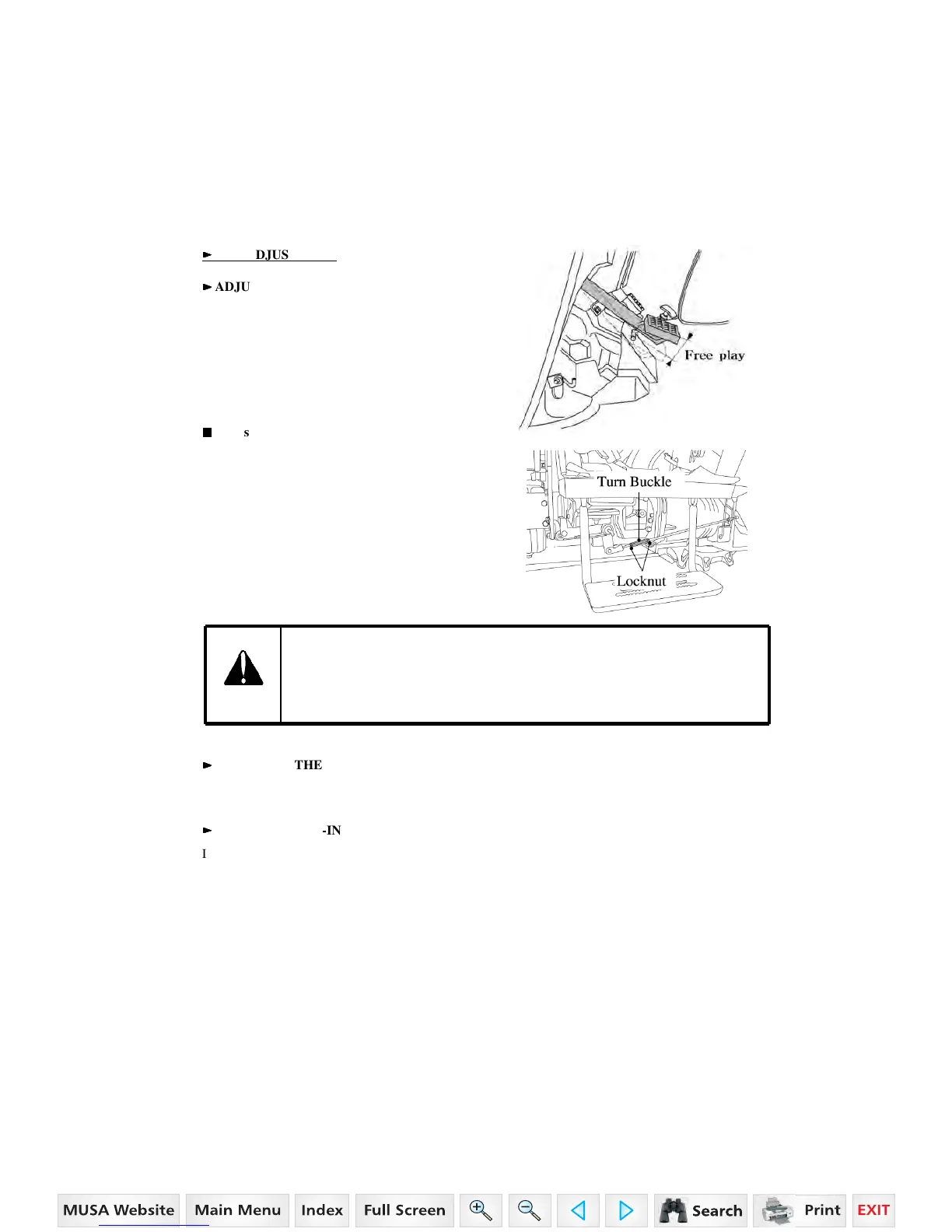

ADJUSTING THE BRAKES
Use of the brakes will change the pedal free play and
the balance between right and left pedal.
The correct pedal free play is 1.18~ 1.57 in
■
Adjusting Method
Loosen the locknuts to adjust the brake.
Turn the Turnbuckle counterclockwise to increases the
free play, or turn the Turnbuckle clockwise to decreases.
Tighten the locknut and confirm to fix the Nuts.
Check that the free play is correct and the same on both
pedals to ensure even braking .
►
►
►
►
GAP ADJUSTMENT
Uneven adjustment of the left and right pedal will result in one sided braking
when the pedals are connected and can cause serious accidents, especially at high
speeds.
Double check to ensure free play is the same on both pedals
Caution
►
►
►
►
ADJUSTING THE THROTTLE LEVER
If this lever is either loose or difficult to move please consult your dealer for rectification of the problem.
►
►►
►
ADJUSTING TOE-IN
If the toe-in adjustment is incorrect it can cause severe shaking of both the steering wheel and the entire
tractor. The correct toe in is 0.08~0.24in.
We recommend that this adjustment is made by the dealer.
70
