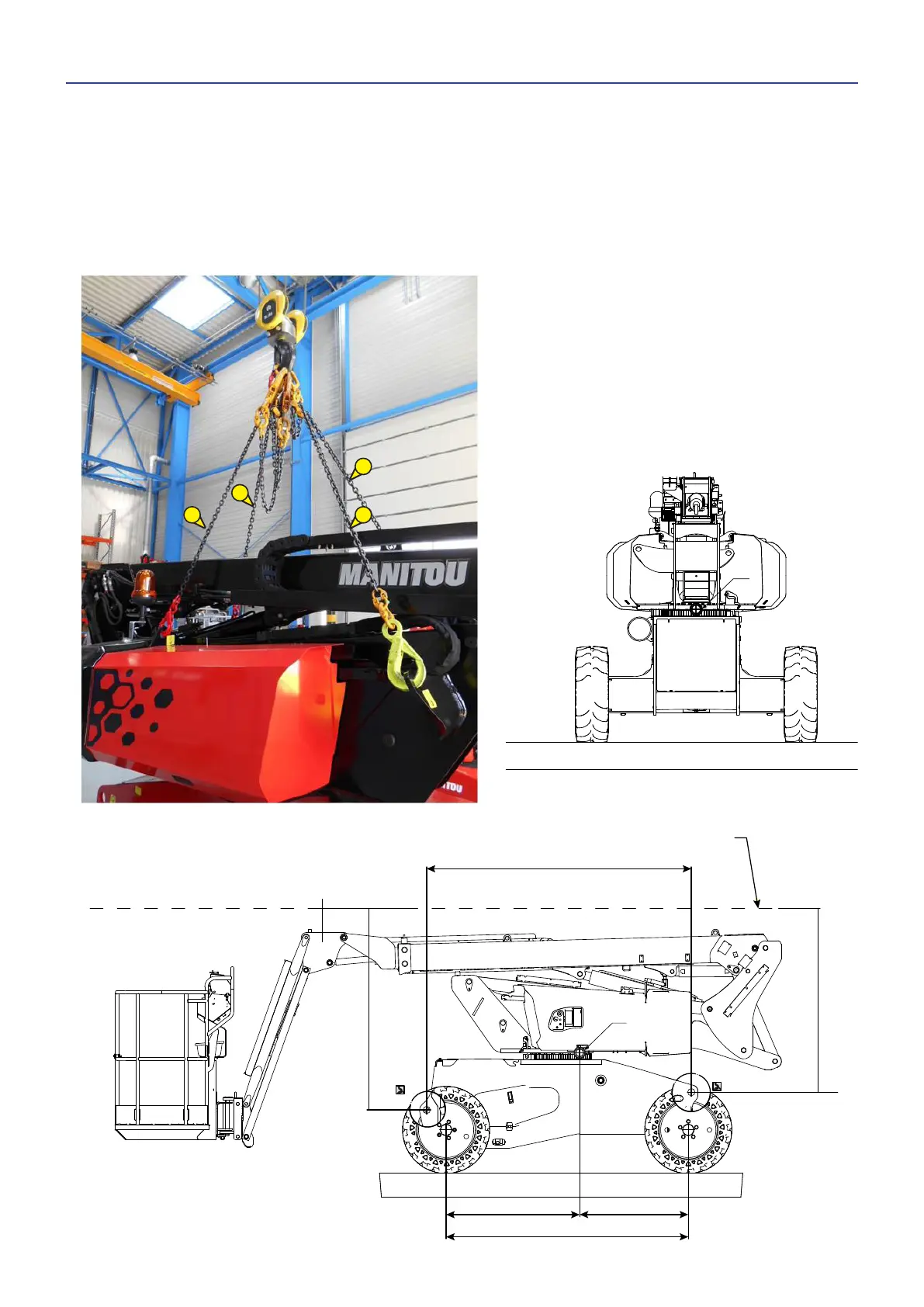

G5 –
LIFTING PLA
TFORM
HOISTING WITH A SLING
Note the position of the lifting platform
’
s centre of gr
avity for lifting it.
Place hooks on the anchoring points pro
vided for this purpose.
Chain 4 legs : 2 legs 1720mm long on the front of the lifting platform 1. 2 legs 1520mm long on the r
ear of the platform.
(A) C
entre of gravity
(B) Axis line slinging rings
3 - 36
2
2
1
1
200
2185
2000
897
1103
A
A
B
200
2185
2000
897
1103
A
A
B
647533 (09/10/2015)
MAN'GO 12
107
Table of Contents
English
6
Operating and Safety Instructions
5
Table of Contents
6
Instructions to the Company Manager
8
Preamble
8
The Site
8
The Operator
8
The Platform
8
The Instructions
9
The Maintenance
9
Instructions for the Operator
10
Preamble
10
General Instructionsa - Operator's Manual
10
B - Authorisation for Use in France
10
C - Maintenance
10
D - Modification the Platform
10
E - IC Platform Axles
11
Driving Instructions
11
A - before Starting the Platform
11
B - Driver's Operating Instructions
11
C - Environment
12
D - Visibility
14
E - Starting the Platform
14
F - Driving the Platform
15
G - Stopping the Platform
15
Instructions for Welding and Blow Torch Work on the External Structure
16
A - with Electric Welding Equipment
16
B - with a Blow Torch
16
Platform Maintenance Instructions
18
General Instructions
18
Maintenance
18
Lubricant and Fuel Levels
18
Level of Electrolyte in the Battery
18
Hydraulic
18
Electricity
18
Welding on the Access Platform
19
Washing the Platform
19
If the Platform Is Not to be Used for a Long Time
20
Introduction
20
Preparing the Platform
20
Protecting the I.C. Engine
20
Charging the Batteries
20
Protecting the Platform
20
Bringing the Platform Back into Service
21
Scrapping the Platform
22
Unknown
25
2 - Description
26
Ec" Declaration of Conformity
26
Safety Plates and Stickers
28
Lifting Platform ID
36
Characteristics
38
Dimensions
42
Lifting Platform Operation
44
Base Control Instrumentation
46
Basket Control Instrumentation
48
Ground Maintenance and Emergency Station
50
Basket Control Station
55
Screen Display - Description of the Pages
62
Description of the Sub-Menus
64
Using the Lifting Platform
66
Rescue Procedure
70
Description and Use of the Options
72
Original Manitou Spare Parts and Equipment
76
Filters Cartridges and Belts
77
Lubricants and Fuel
78
Maintenance Table
80
A - Daily or Every 10 Hours of Operation
82
B - Every 50 Hours of Operation
86
C - Every 250 Hours of Operation
90
D - Every 500 Hours of Operation
96
E - Every 1000 Hours of Operation
102
F - Every 2000 Hours of Operation or Two Years
104
G - Occasional Maintenance
106
