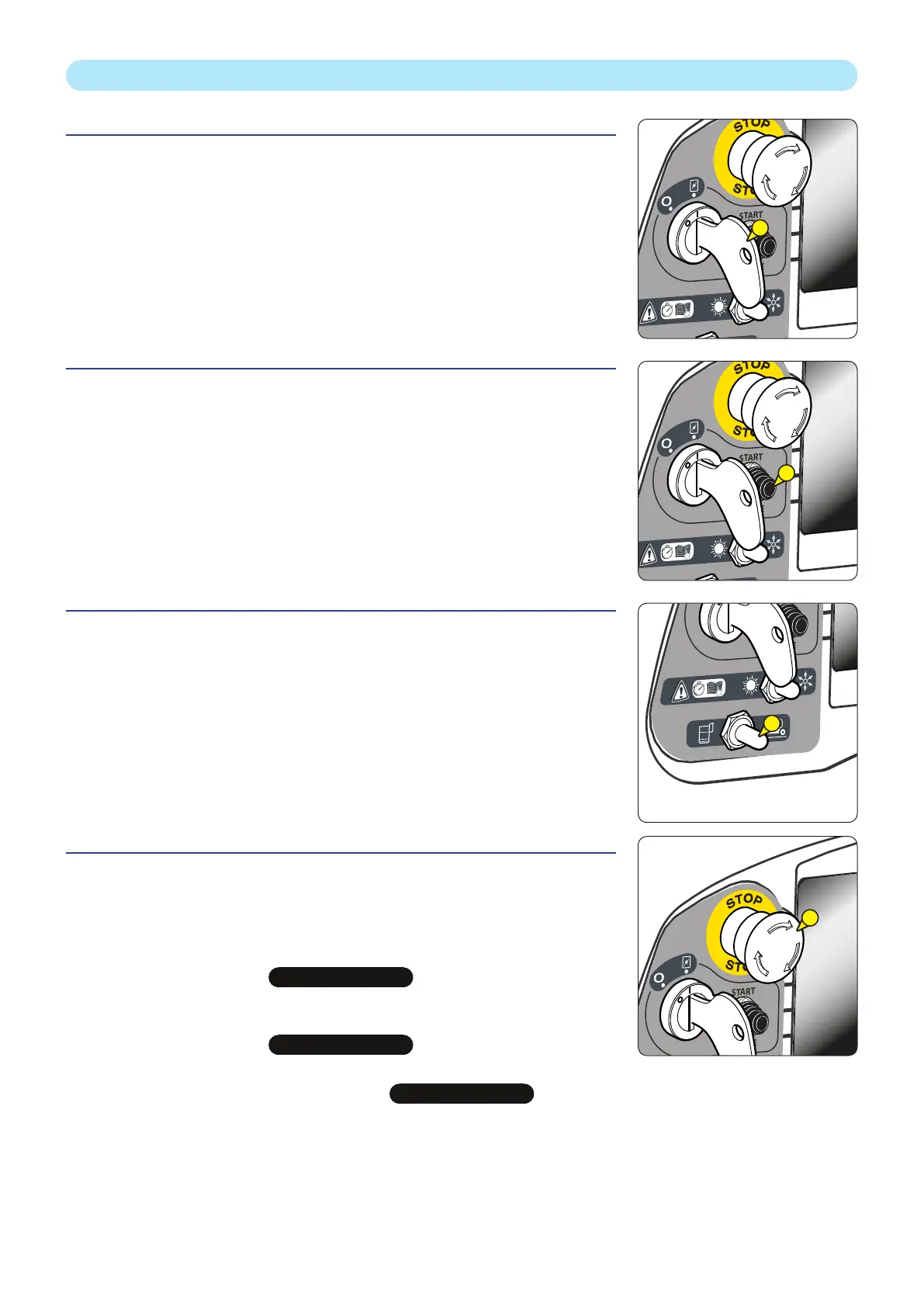

GROUND MAINTENANCE AND EMERGENCY STATION
1 - KEY-OPERATED IGNITION SWITCH
This key-operated contactor has two positions.
POSITION 1
- Engine stop and electrical circuit supply off.
POSITION 2
- Electrical circuit supply on and automatic engine preheating.
1
2 - STARTER BUTTON
Engine start-up.
3 GROUND OR PLATFORM CONTROL SELECTION SWITCH
This contactor has two positions.
POSITION 1
- The commands are given from the basket.
POSITION 2
- The commands come from the ground (base control). The button must be held
down in position 2 (dead Man’s system) to provide power to the base control.
Releasing it prevents any movements from being made.
4 - EMERGENCY STOP
This red mushroom-headed switch cuts off all the machine’s movements in the event
of an anomaly or any danger.
- Press the knob to cut off the movements.
- Turn the knob a quarter turn to the right to restore the power supply (the switch
automatically returns to its initial position).
t
IMPORTANT
t
In all cases, this command takes precedence, even when the movements are being controlled from the basket
control station.
t
IMPORTANT
t
If the Emergency Stop is activated, the movements may stop very suddenly.
t
IMPORTANT
t
Do not use the emergency stop to simply shut down the lifting platform. Otherwise, rearm it immediately as no action can be performed on the control panels at
ground level or in the basket.
2
3
4
2 - 28
647533 (09/10/2015)
MAN'GO 12
