Manitou MAN'GO 12 User Manual

2 - 20

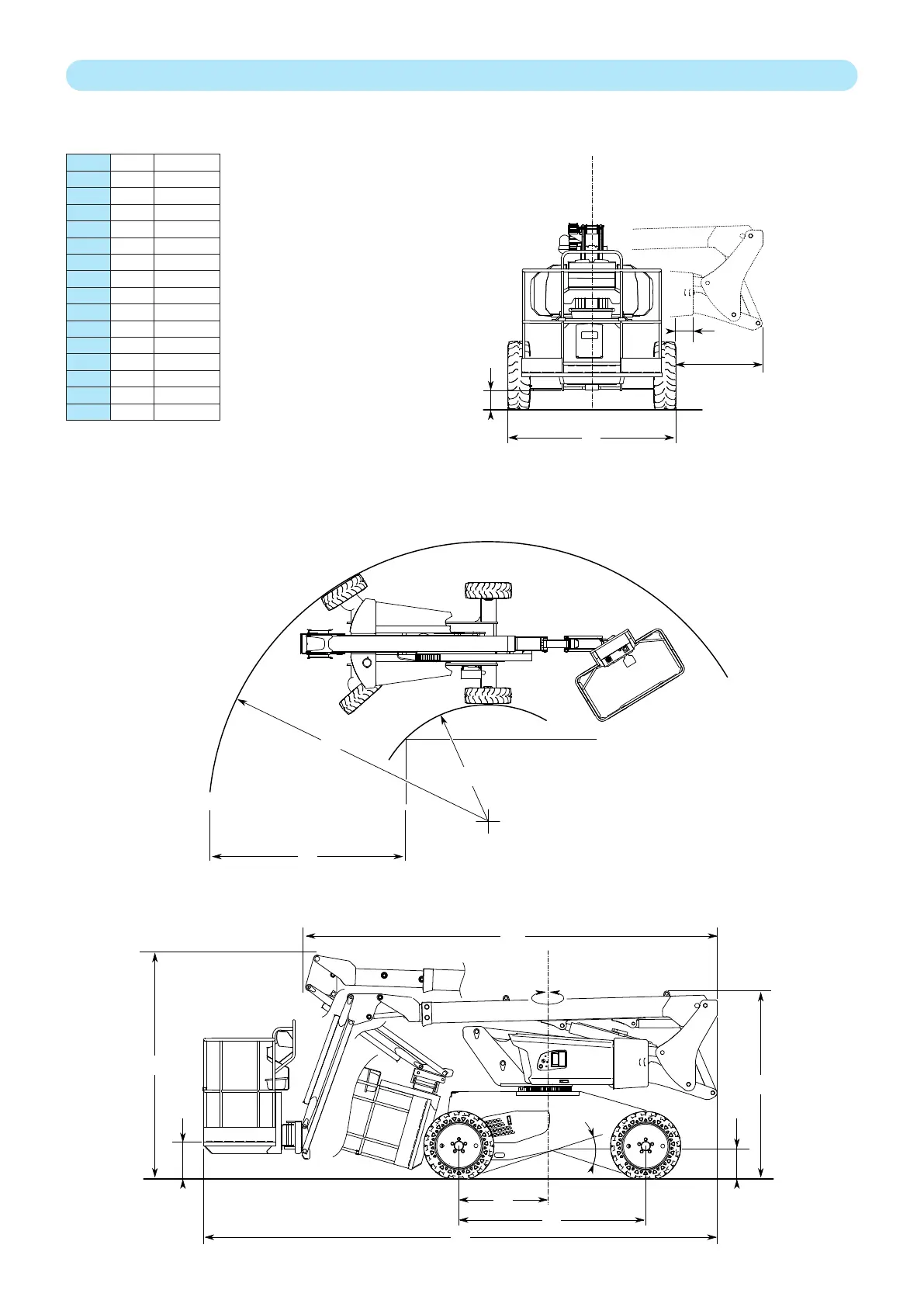

DIMENSIONS
J
B
A
C1
C
D
A1
E1
E
F
G
G1
K
B1
I
H
A mm 5500
A1
mm 4500
B
mm 2000
B1
mm 950
C
mm 2015
C1
mm 2495
D
mm 1800
E
mm 200
E1
mm 320
F
mm 395
G
mm 1715
G1
mm 4115
H
mm 920
I
mm 190
J
mm 2900
K
° / % 36/73
647533 (09/10/2015) MAN'GO 12

Manitou MAN'GO 12 Specifications

General

Brand	Manitou
Model	MAN'GO 12
Category	Boom Lifts
Language	English
