Manitou MAN'GO 12 User Manual

2 - 21

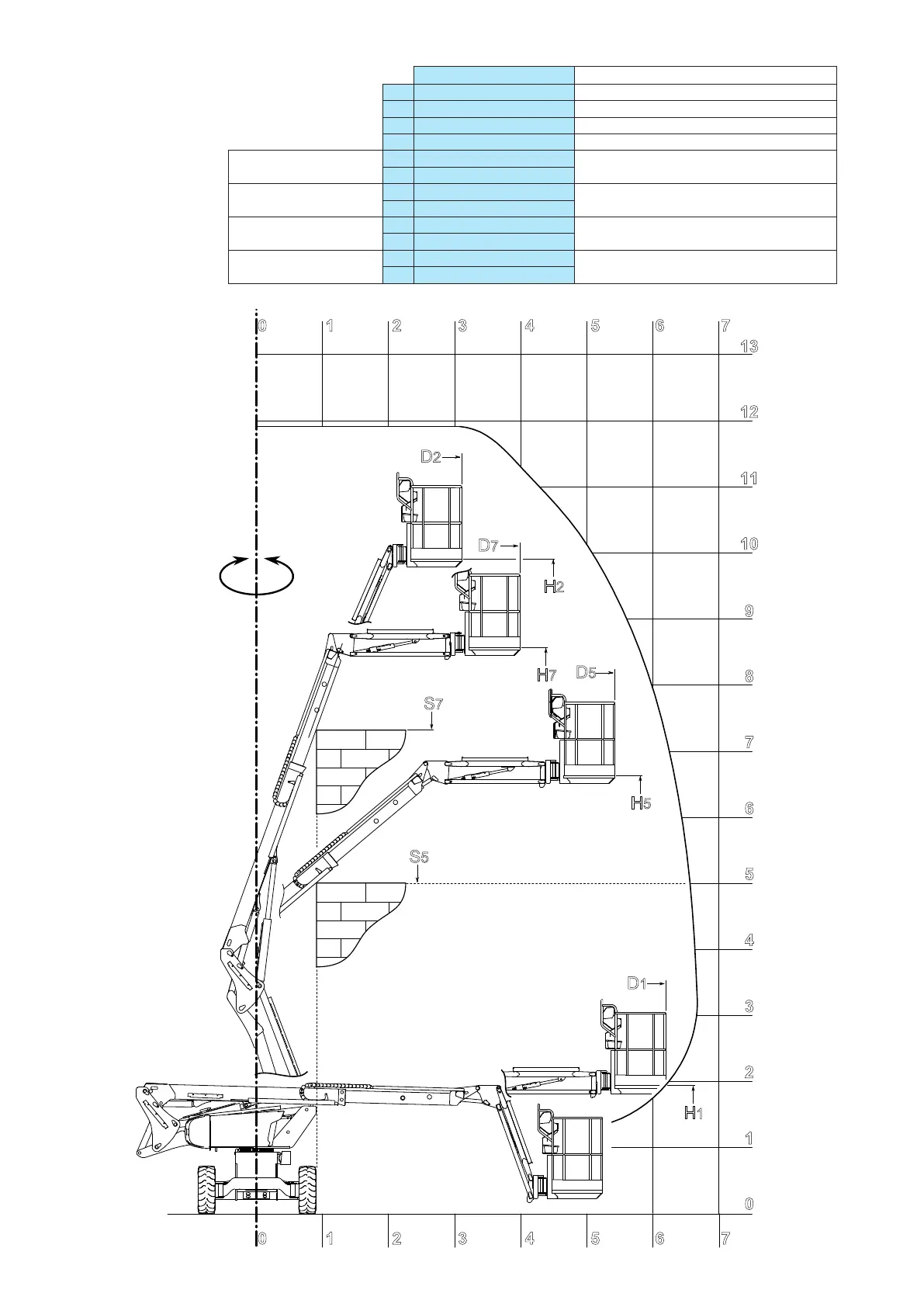

Theorical Dimensions Designation
H1 1940 mm
Overhang max offset (dimension measured on the floor)
D1 6190 mm Max offset
H2 9905 mm Max height (dimension measured on the floor)
D2 3100 mm Max offset height
S4 = 4 m
H4 5220 mm
Platform offset and height for a building height = 4m
D4 5830 mm
S5 = 5 m
H5 6620 mm
Platform offset and height for a building height = 5m
D5 5410 mm
S6 = 6 m
H6 7850 mm
Platform offset and height for a building height = 6m
D6 4720 mm
S7 = 7,31 m
H7 8565 mm
Platform offset and height for a building height = 7,31m
D7 3950 mm
H 1
D 1
H 7
D 7
H 2
1
2
3
0
4
5
6
7
8
9
10
11
12
13
D 2
0 1 2 3 4 5 6 7
S 7
0 1 2 3 4 5 6 7
H 5
D 5
S 5
647533 (09/10/2015) MAN'GO 12
