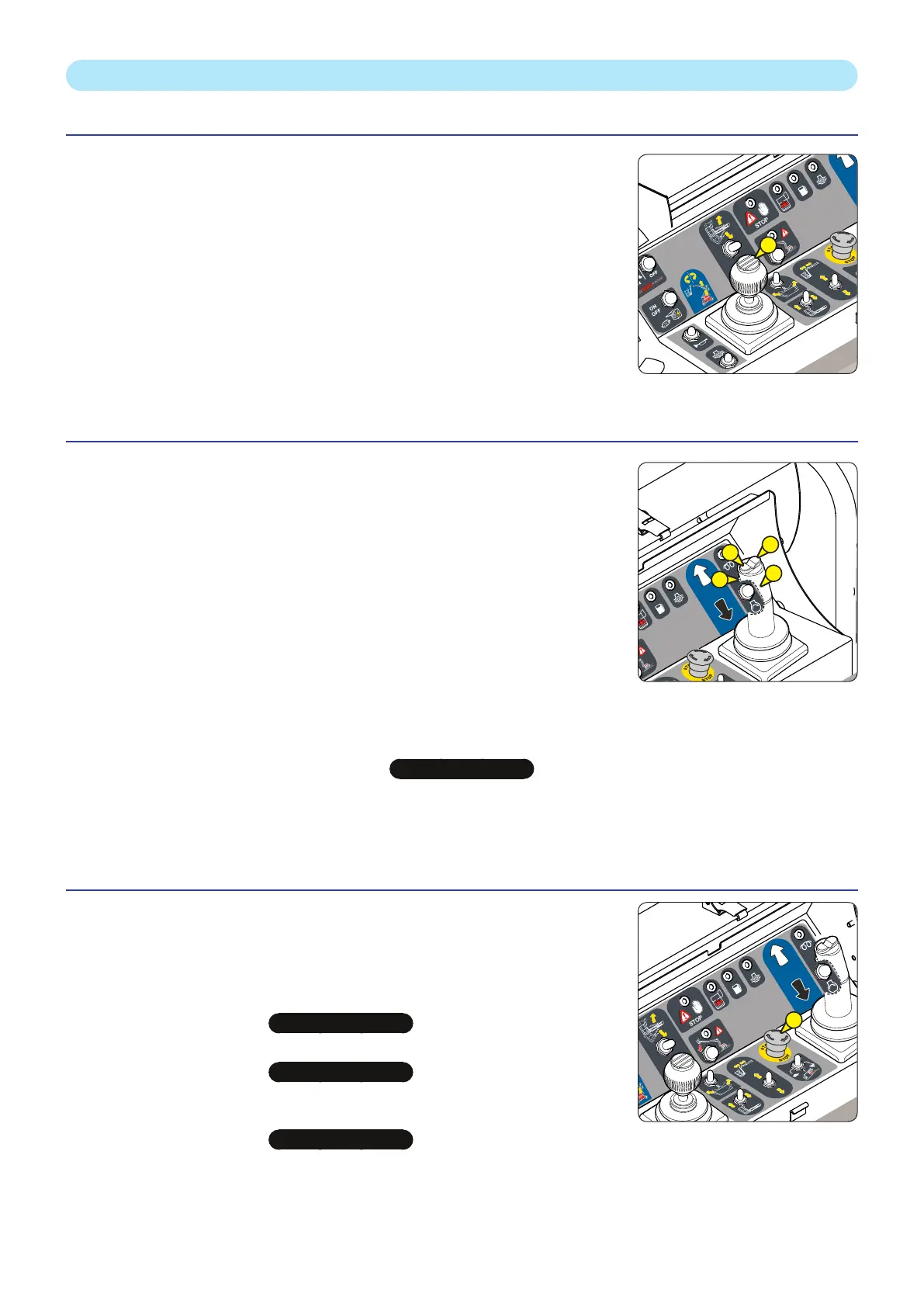

BASKET CONTROL STATION
19 - UPPER ARM UP / DOWN AND TURRET ROTATION CONTROL LEVER
Lever 19 enables you to raise the upper arm and rotate the turret.
NB: This is a progressive control lever, which provides you with great accuracy in
approach. It must be manipulated flexibly, without jerking.
RAISING THE UPPER ARM
- Push the lever upwards.
LOWERING THE UPPER ARM
- Pull the lever downwards.
ROTATING RIGHT
- Push the lever to the right.
ROTATING LEFT
- Push the lever to the left.
20 - LIFTING PLATFORM FORWARD / REVERSE AND RIGHT / LEFT MOVEMENT CONTROL JOYSTICK
Lever 23 enables you to move the lifting platform.
- You must press trigger A together with the Dead Man’s pedal (see 36) to perform
movements from the lifting platform’s control box.
- When the pedal or trigger A is released, no commands can be issued.
NB: This is a progressive control lever, which provides you with great accuracy in
approach. It must be manipulated flexibly, without jerking.
FORWARD TRANSLATION
- Push the lever forwards.
REAR TRANSLATION
- Pull the lever backwards.
STEER RIGHT
- Press button D.
STEER LEFT
- Press button G.
t
IMPORTANT
t
When the turret / arm structure is rotated more than 90° with respect to the chassis, there is a correspondence between the direction of translation shown by the
arrows affixed to the chassis and those on the basket control console (white and black arrows). Always refer to the arrows shown on the machine’s chassis to know
the direction of movement.
21 - EMERGENCY STOP
This switch enables you to cut off all the machine’s movements in the event of an
anomaly or danger arising.
Press the knob to cut off all movements.
Turn the knob a quarter turn to the right to deactivate it (the switch will automatically
return to its initial position).
t
IMPORTANT
t
In all cases, this control has priority; except when movements are being made from the base control station.
t
IMPORTANT
t
Do not use the emergency stop to simply shut down the nacelle, otherwise, rearm it immediately as no action can
be performed on the control panel in the basket.
t
IMPORTANT
t
To obtain a return to the ground in spite of this engaged basket emergency stop, use the emergency controls (see § Rescue procedure).
19
20
A
D
G
21
2 - 33
647533 (09/10/2015) MAN'GO 12
