Manitou MAN'GO 12 User Manual

2 - 12

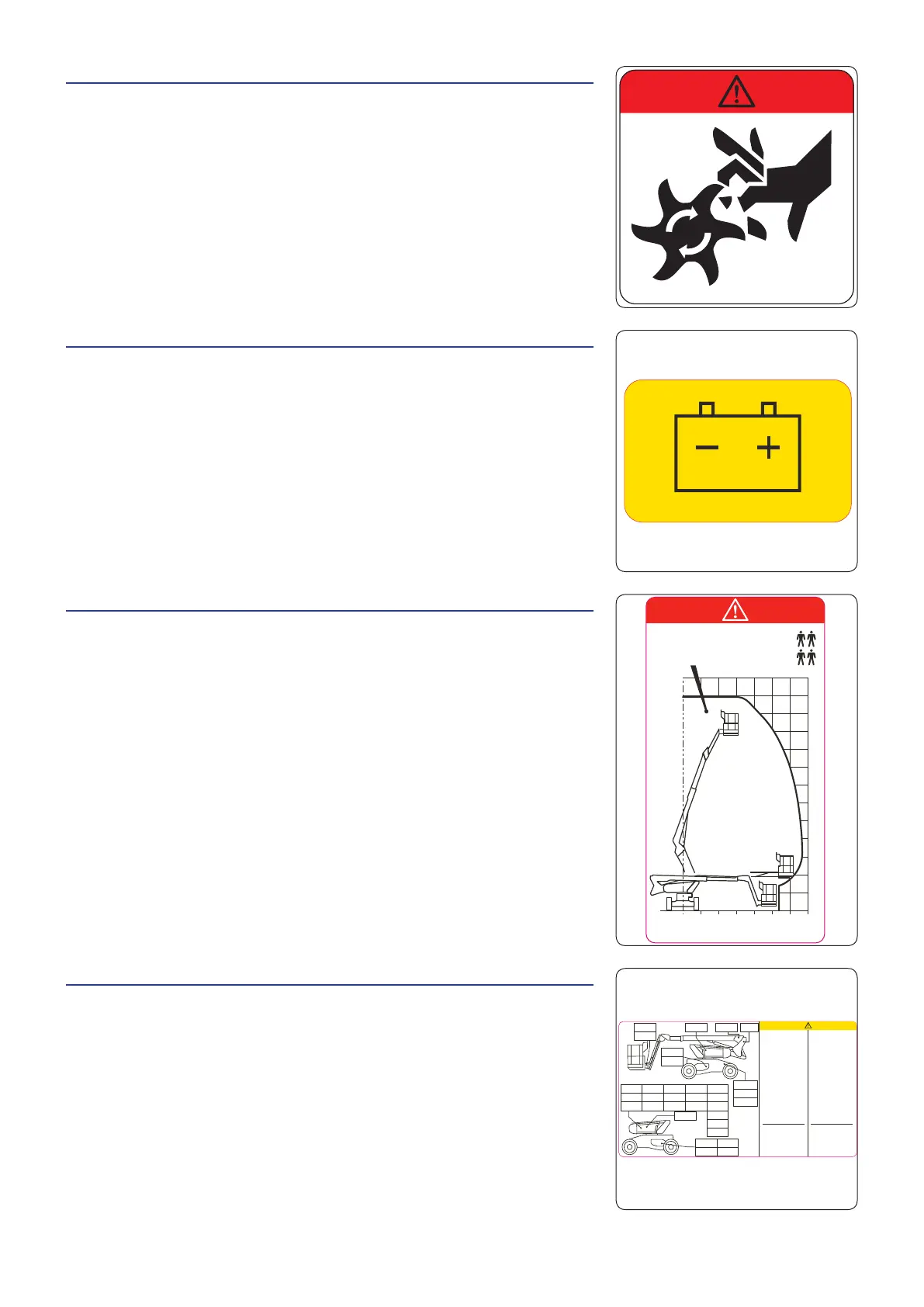

21 - Moving parts
This sticker shows the hazard relating to locating hands or fingers at this place;
cutting of fingers in the blades of the cooling fan.
683108-A
22 - Battery location
This sticker shows the location of the battery.
52509705--
23 - Diagram of stability
This sticker shows the platform capcity for inside and external use.
0 1 2 3 4 5 6
0 1 2 3 4 5 6 7
1
2
3
4
5
6
7
8
9
10
11
12
52530106-B
500 Lbs = 150 Lbs + 2
230 Kg = 70 Kg + 2
24 - Sensors and coils
This adhesive shows the fault codes and the location of the electrical components,
suchas sensors (DS, AS, IS), the solenoid valves (EV) and the solenoid coils (EW).
CODES DÉFAUTS
A- Short circuit at starting
before power to compo-
nent
B- Out neutral
movement at starting
D- Short circuit (To +)
E- Redundant sensor
failure
(TOR or ANA)
F- Out range valve
G- High level default
H- Low level default
S- Communication default
T- Memor y default
U- Functional warning
V- Activating default
C- Open circuit
(wire cut)
DEFAULT CODE
A- Court-circuit au
démarrage avant
alimentation du
composant
B- Hors neutre mouve-
ment au démarrage
C- Circuit ouvert
(Fil coupé)
D- Court-circuit (au +)
E- Incohérence capteurs
redondants
(TOR ou ANA)
F- Valeur hors plage
G- Défaut niveau haut
H- Défaut niveau bas
S- Défaut communication
T- Défaut mémoire
V- Défaut asservissement
U- Alerte fonctionnelle
IS200
IS207
TS100
DS301
DS302
EW103
52536099
EW105
EW106
EW108
EV101
EV106
EV107
EV108
EV109
EV110
EV111
EV112
EV113
EV114
EV115
EV118
EV119
EV120
EV121
EW100
EW101
EV100
EV103a
EV103b
EW102
EV102
DS100
DS101
647533 (09/10/2015) MAN'GO 12
