Manitou MC 18-2 D K ST5 S1 User Manual

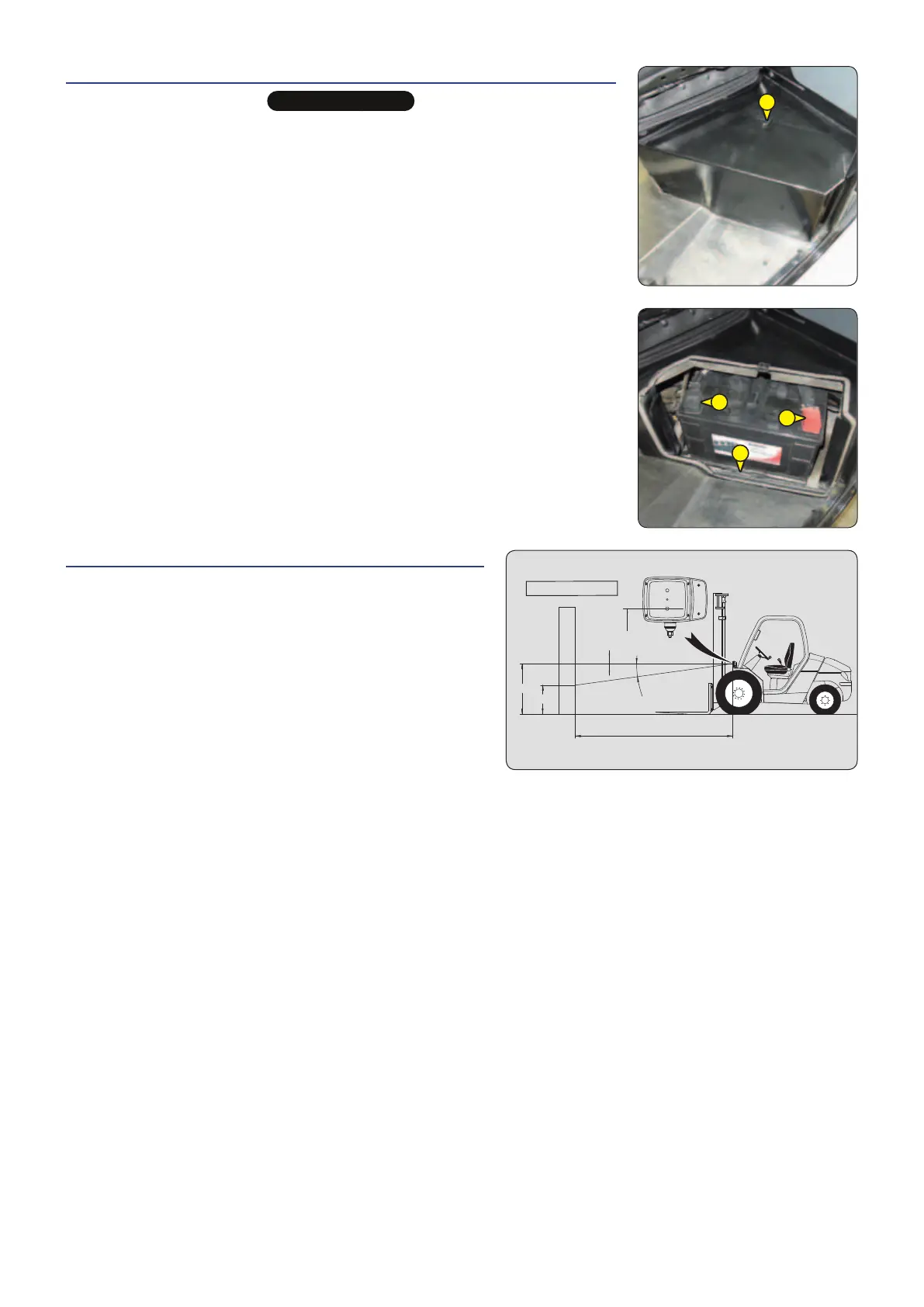

REPLACE Battery

IMPORTANT

Handling and servicing a battery can be dangerous, take the following precautions:
- Wear protective goggles.
- Keep the battery horizontal.
- Never smoke or work near a naked flame.
- Work in a well-ventilated area.
- In the event of electrolyte being spilled onto the skin or splashed in the eyes, rinse thoroughly with cold water for15
minutes and call a doctor.
- Turn off the power to the battery cut-off.
- Open the battery access flap 1.
- Unscrew the battery fastener 2.
- Disconnect terminal 3 (+) then terminal 4 (-).
- Replace the battery.
NOTE: A large-capacity battery is available as an OPTION.
ADJUST Front headlights
RECOMMENDED SETTING
(according to standard ECE-76/75676/761 ECE20)
Adjustment of -2 % of the dipped beam harness relative to the
horizontal axis of the headlight.
ADJUSTMENT PROCEDURE
- Place the unladen lift truck in the transport position and
perpendicular to a white wall on flat, level ground.
- Check the tyre pressures (
2-DESCRIPTION: TYRES).
- Place the forward/reverse selector in neutral.
CALCULATING THE HEIGHT OF THE DIPPED BEAM (H2)
• h1 = Height of the dipped beam in relation to the ground.
• h2 = Height of the adjusted beam.
• l = Distance between the dipped beam and the white wall.
3 - 37
1
4
2
3
h1
+%
-%
h1
h2
-2%
h2 = h1 - (l x 2 / 100)
l
647837 M1 (A052020) MC 18-2/18-4 D K ST5 S1
