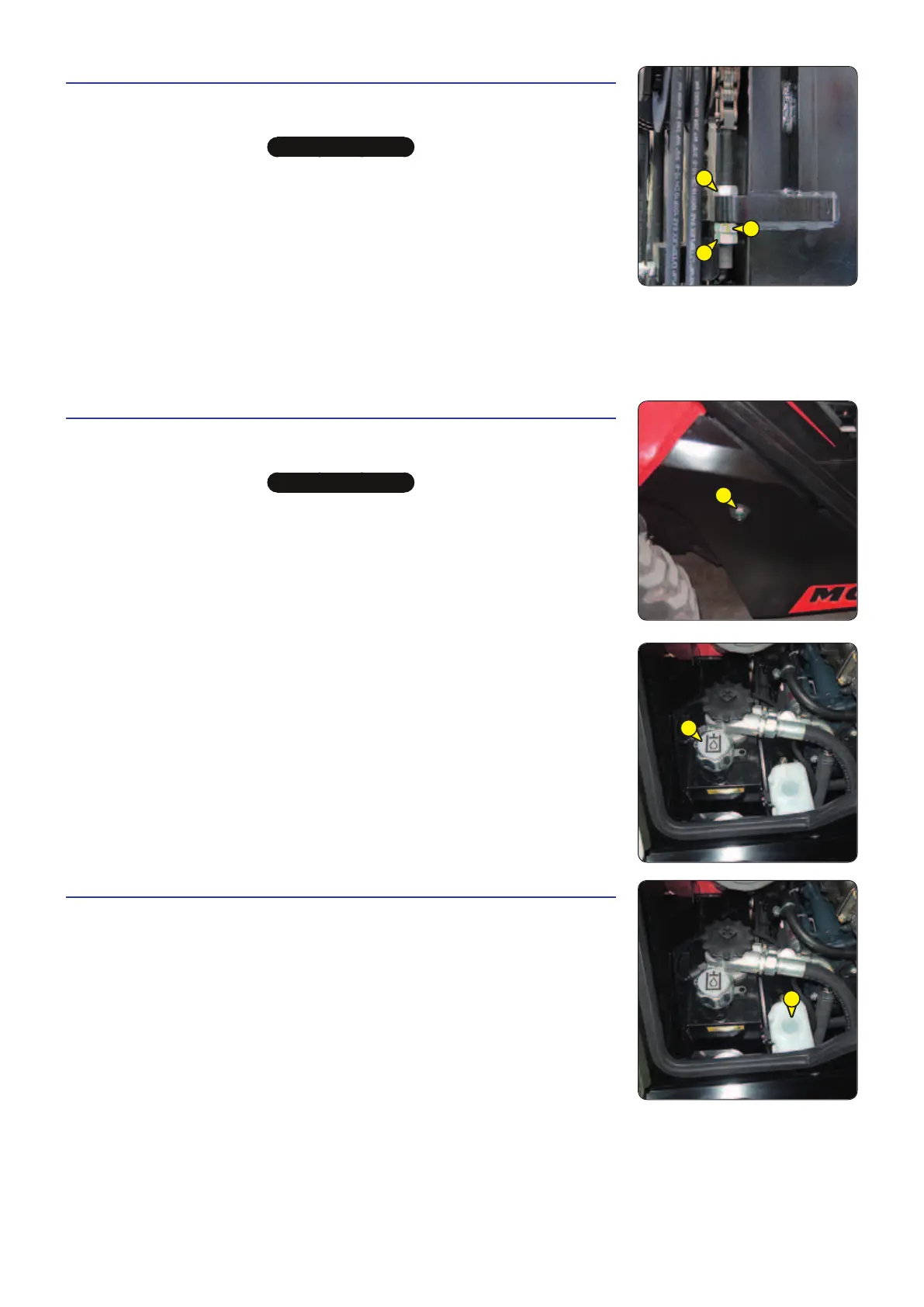

CHECK Tension and alignment of mast lifting chains
Place the lift truck on level ground with the mast in a vertical position and the forks
raised approximately 200mm.

IMPORTANT

These checks are important to ensure correct mast operation.
In case of technical faults, consult your dealer.
- Check the alignment of the mast lifting chains between the carriage chain fasteners
and the chain rollers.
- Manually inspect the chain tension and, if necessary, adjust as indicated below
while ensuring that the carriage is perpendicular to the mast.
- Loosen nut 1.
- Loosen the chain tensioner locknut 2.
- Adjust the tension by tightening or loosening the nut 3 while checking the alignment
of the lifting chains.
- Then tighten locknut 2 and nut 3.
- Retighten the nut 1.
CHECK Hydraulic oil level
Place the lift truck on level ground with the engine stopped, the mast tilted backwards
and lowered as far as possible.

IMPORTANT

Use a clean funnel and clean the underside of the oil drum before filling.
- Check dipstick1, the correct level must be at the level of the red dot.
- If necessary, add oil (LUBRICANTS AND FUEL).
- Open the engine cover (2-DESCRIPTION-INSTRUMENTS AND CONTROLS).
- Remove the cap2.
- Add oil through the filler port (2).
- Refit the cap.
- Check for leaks.
1
2
CHECK Windscreen washer liquid level (OPTION)
- Open the engine cover (2-DESCRIPTION-INSTRUMENTS AND CONTROLS).
- Visually check the level in the tank.
- If necessary, add windscreen washer liquid ( LUBRICANTS AND FUEL) through
the filling hole 1.
3 - 15
1
2
3
1
647837 M1 (A052020) MC 18-2/18-4 D K ST5 S1
