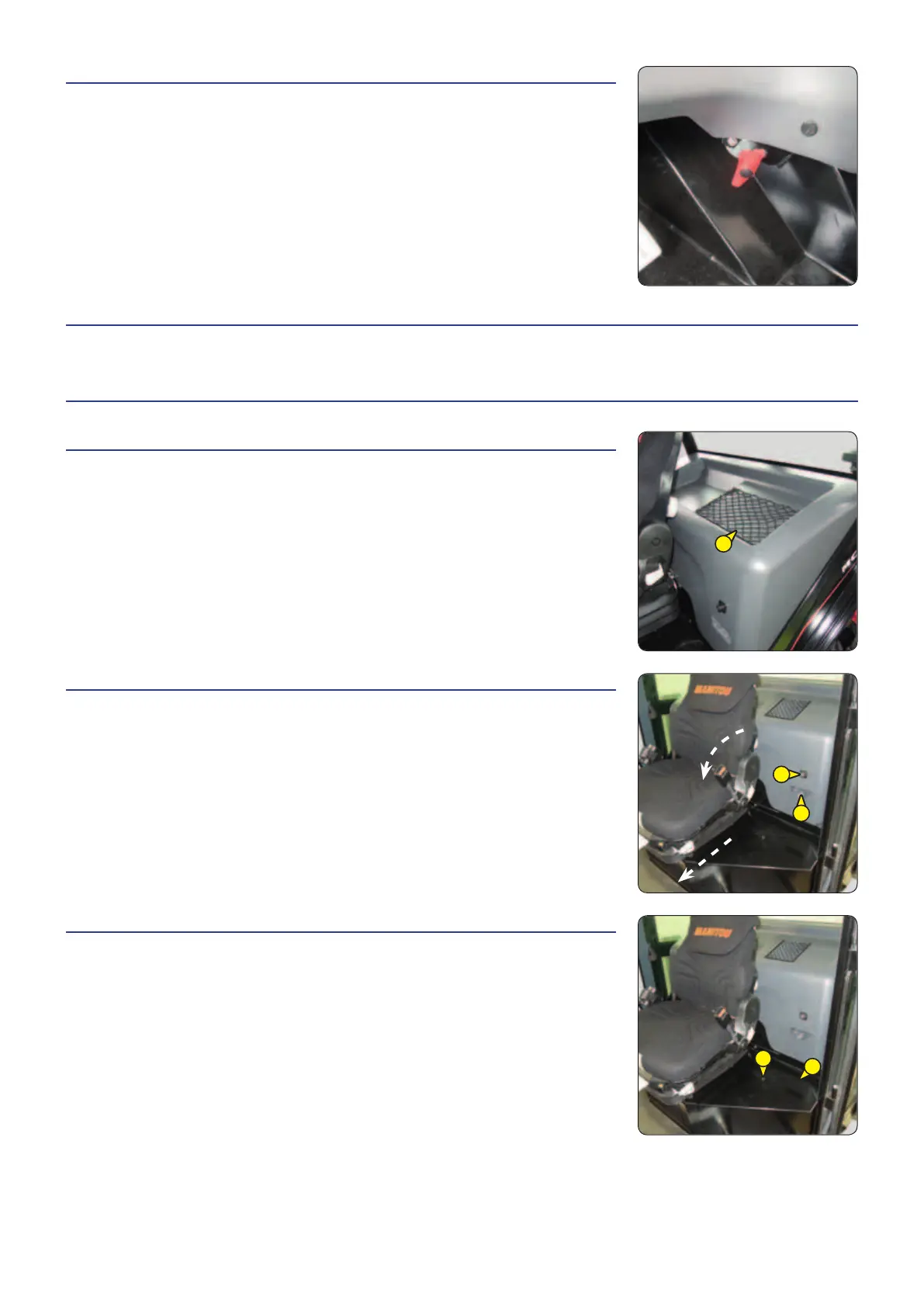

21 - MOTOR COVER PANEL
NOTE: Cab option, open the side doors before opening the engine cover.
To open the engine cover:
- Fold the seat backrest onto the seat.
- Move the seat forward as far as possible.
- Press the button (1) and lift the cover using the handle (2).
- Gain access to the engine compartment to service the lift truck, as well as to the
fuses and relays.
22 - BATTERY COVER
- Turn the thumb wheel (1).
- Remove the battery cover (2).
18 - 12V SOCKET
NOTE: As an option there is a reading light for a 12 V socket.
19 - DOCUMENT CLIP
20 - DOCUMENT STORAGE NET
Make sure that the operator’s manual is in the right place, i.e. in the document holder net.
NOTE: As an option there is a waterproof document holder.
17 - BATTERY CUT-OFF
Enables the battery to be rapidly cut off from the electric circuit in the event of a short
circuit or a fire.
2-29
2
1
1
2
647837 M1 (A052020) MC 18-2/18-4 D K ST5 S1
