Manitou MC 18-2 D K ST5 S1 - Lighting, Horn and Indicator Light Control; Road Lights

31 - ROAD LIGHTS

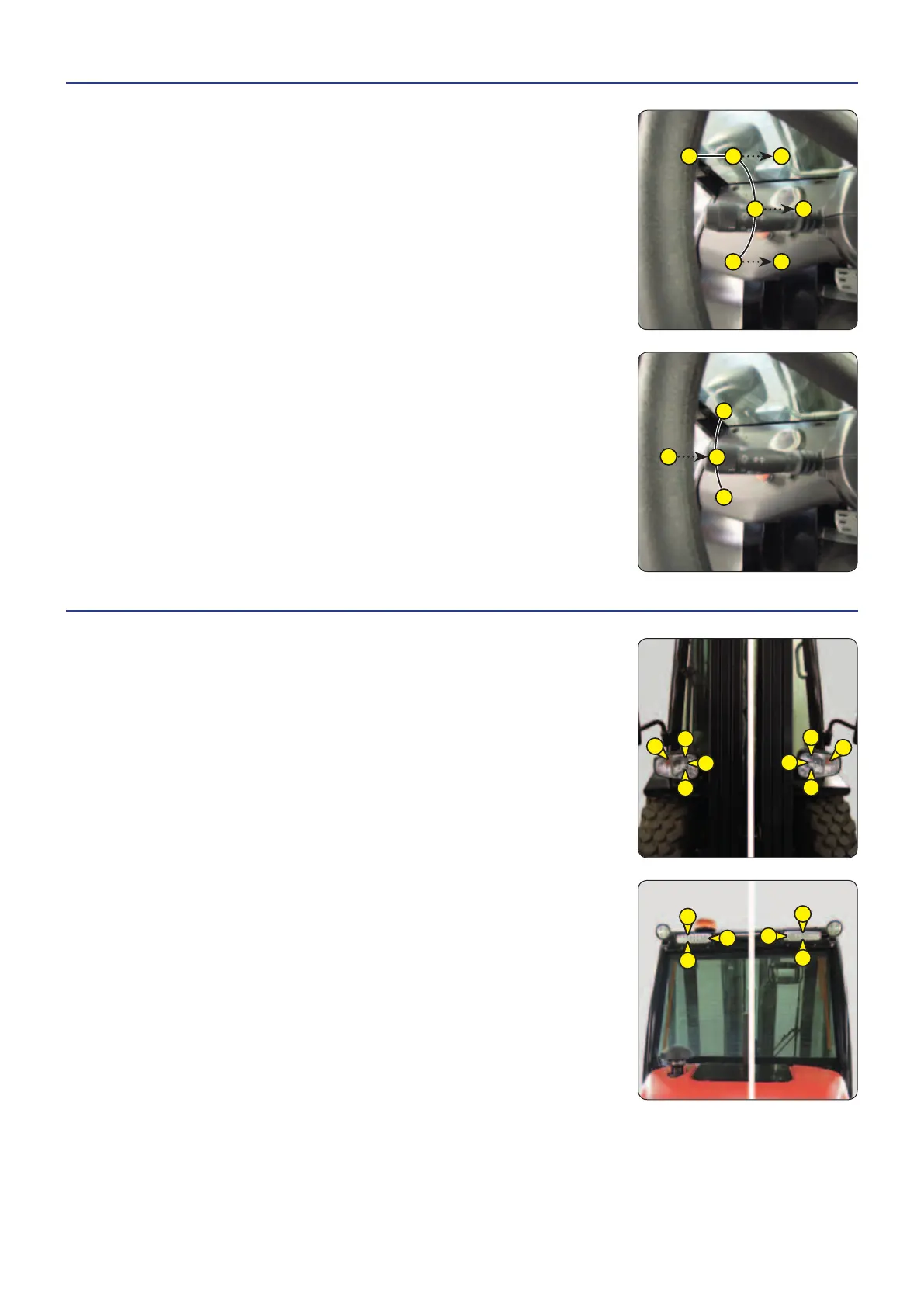

FRONT HEADLIGHTS
• A - Indicator lights.
• B - Dipped beam headlights.
• C - Main beam headlights.
• D - Sidelights.
NOTE: As an option there is a guard for the main beam headlights.
REAR LIGHTS
• A - Indicator lights.
• B - Brake lights.
• C - Sidelights.
NOTE: As an option there is a guard for the main beam headlights.
30 - LIGHTING, HORN AND INDICATOR LIGHT CONTROL
ROAD LIGHTS
The road lights can be used without the ignition key.
• A - Off.
• B - Front and rear side lights.
• C - Dipped beam headlights.
• D - Main beam headlights.
• E - Headlight flasher (push).
INDICATOR LIGHTS AND SOUND ALARM
• F - Off.
• G - Right indicator lights.
• H - Left indicator lights.
• I - Horn (push).
