REPLACE Engine oil **
REPLACE
Engine oil filter **
** Only for the first 50 hours of service, and then every 500 hours of service or1 year.
NOTE: When the lift truck is first put into service, the maintenance key is lit up. The
oil and oil filter must be replaced after the first 50 hours of service to abide
by the guarantee.
Place the lift truck on level ground, let the engine run at idle for a few minutes, then
stop the engine.

IMPORTANT

Dispose of the drain oil in an ecological manner.

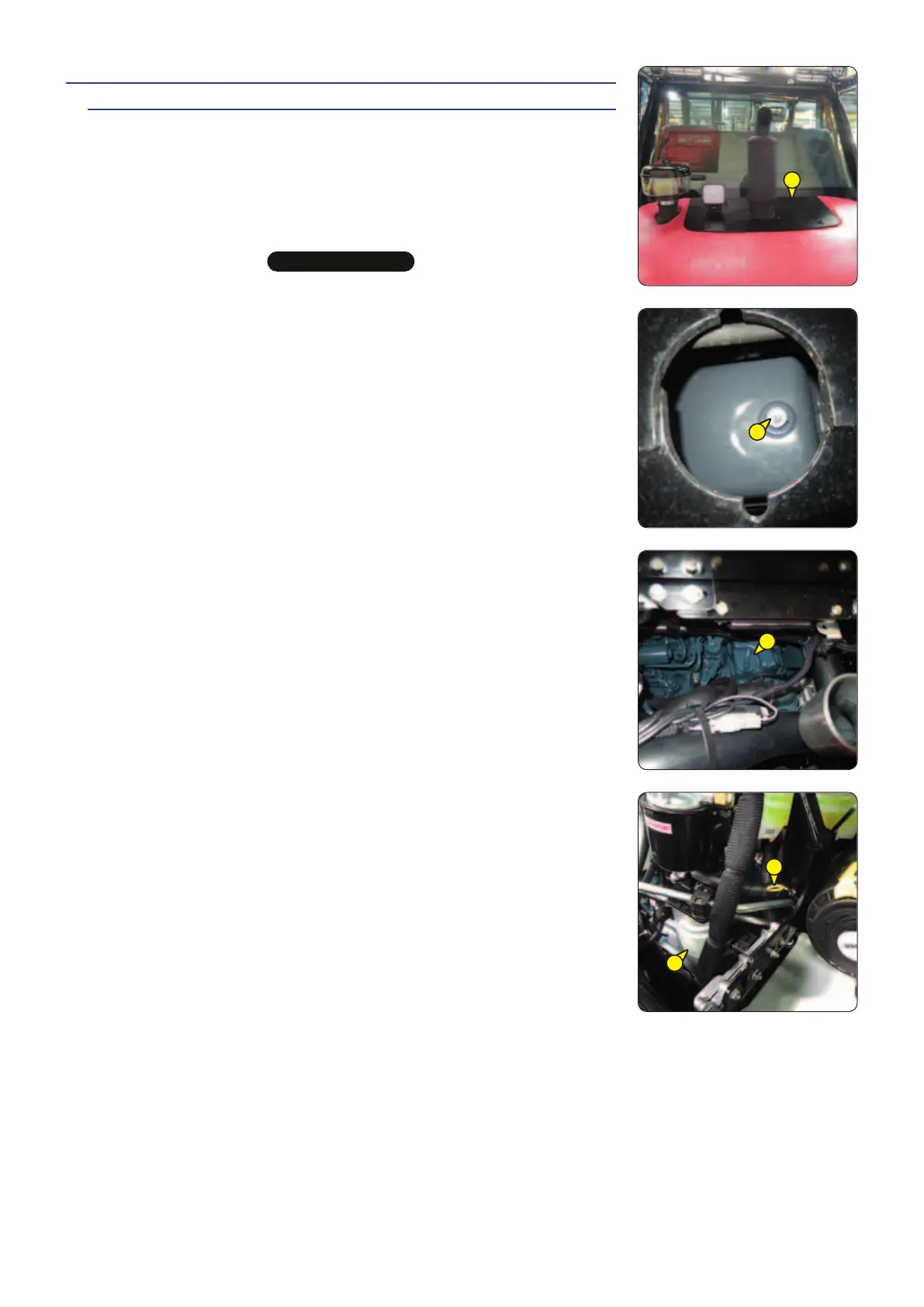

- Open the engine cover (2-DESCRIPTION-INSTRUMENTS AND CONTROLS).
- Remove the access panel 1.
- Clean the areas around the plugs and oil filter.
DRAINING THE OIL
- Place a container under the drain port 2 and unscrew the plug.
- Remove the filler plug 3 to ensure that the oil is drained properly.
REPLACEMENT OF THE FILTER
- Clean the filter bracket with a clean, lint-free cloth.
- Unscrew and recycle the engine oil filter 4, together with its seal.
- Lightly grease the seal before refitting the new oil filter ( FILTER CARTRIDGES
AND BELTS) on its bracket.
- Tighten the oil filter by hand pressure only and lock the filter in place by a quarter
turn.
FILLING WITH OIL
- Refit and tighten the drain plug2 (tightening torque 32,4-37,2 N.m).
- Fill up with oil (LUBRICANTS AND FUEL) through filler hole3.
- Wait a few minutes to allow the oil to flow into the sump.
- Start the engine and let it run for a few minutes.
- Check for possible leaks from the drain plug and the oil filter.
- Stop the engine; wait a few minutes
- Check the correct level between the two notches on the dipstick 5.
- Top up if necessary.
- Refit the filler plug3.
- Refit access panel1.
3 - 18
4
5
1
3
2
647837 M1 (A052020) MC 18-2/18-4 D K ST5 S1
