Manitou MC 18-2 D K ST5 S1 User Manual

LUBRICATE General lubrication
To be carried out weekly, if the lift truck has been operated for less than50 hours during the week.

IMPORTANT

In the event of prolonged use in an extremely dusty or oxidising atmosphere, reduce this interval to every10 hours of service or every day.
- Clean, then lubricate the following points with grease (LUBRICANTS AND FUEL) and remove the surplus.

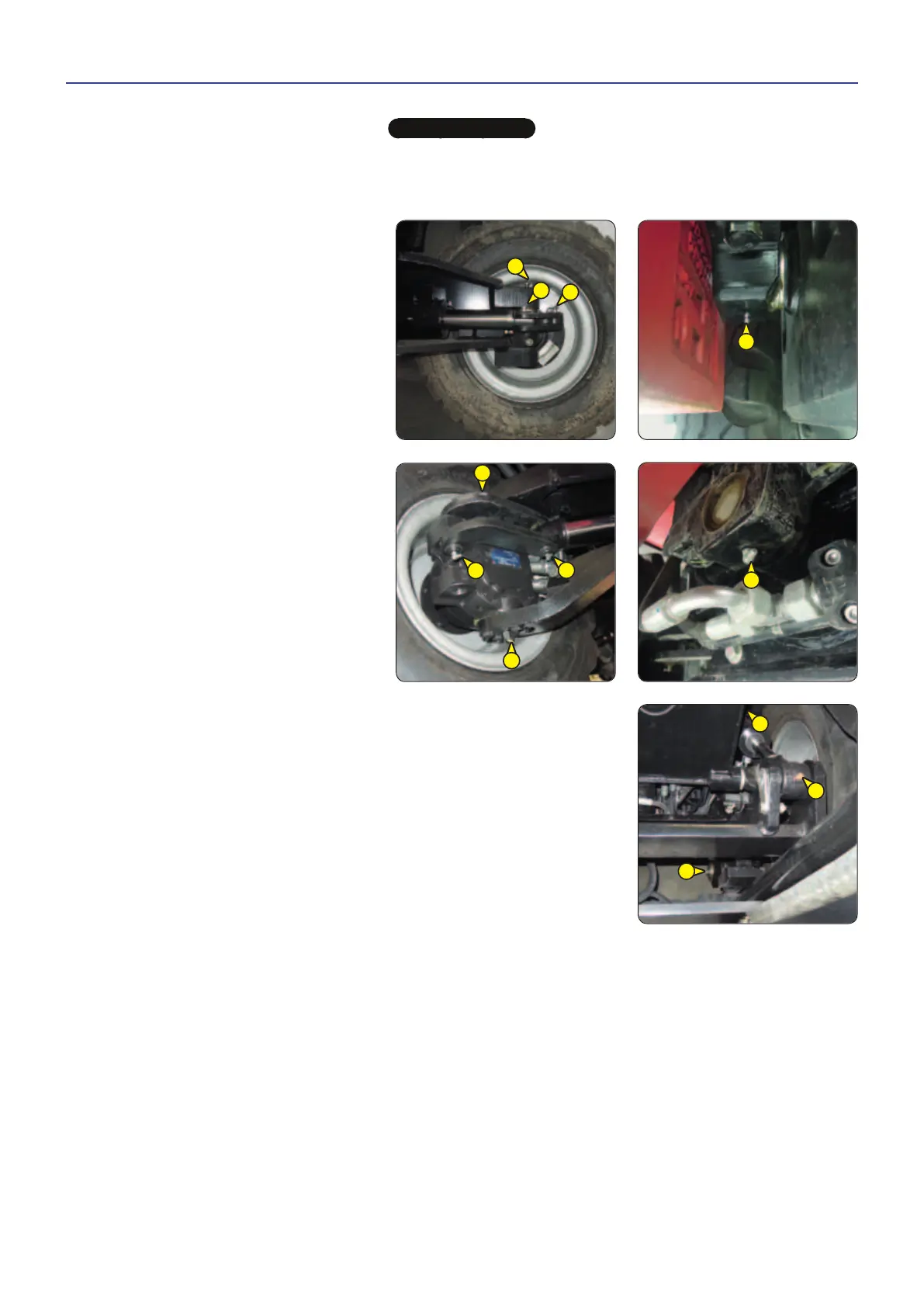

REAR AXLE
MC . . -2
1 - Lubricators for the swivel pins (2 lubricators).
2 - Lubricators for the tie-rods (4 lubricators).
3 - Rear axle oscillation lubricators
(2lubricators).
MC . . -4
4 - Wheel motor pivot lubricators (4 lubricators).
5 - Lubricators for the tie-rods (4 lubricators).
6 - Rear axle oscillation lubricators
(2lubricators).
MAST
7 - Mast foot hinge pins (2 lubricators).
8 - Tilt cylinder foot axles (2 lubricators).
9 - Tilt cylinder head axles (2 lubricators).
3 - 17
9
8
7
2
2
1
4
5
5
4
3
6
647837 M1 (A052020) MC 18-2/18-4 D K ST5 S1
