5 - DASHBOARD HANDSET

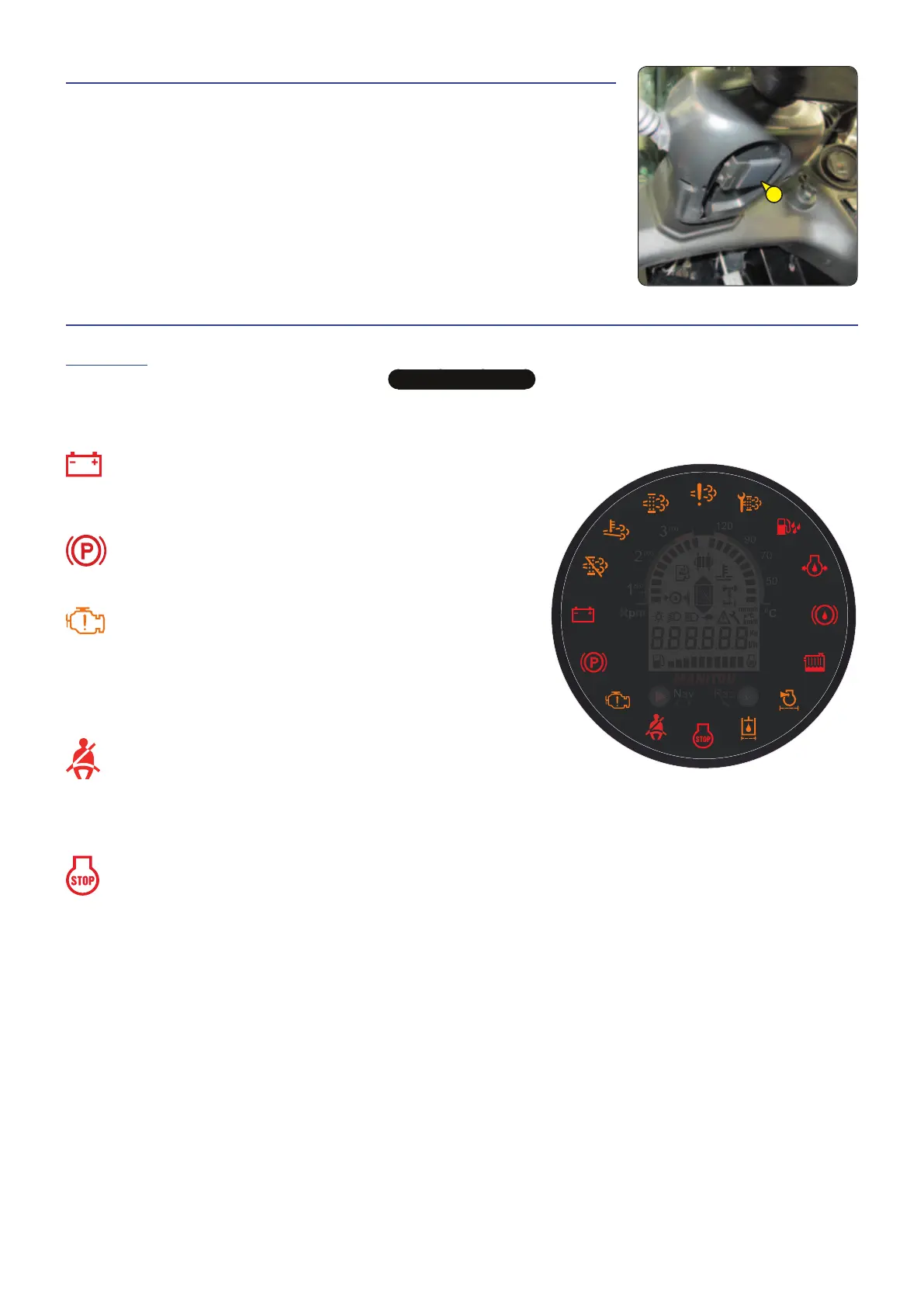

SIGNAL LIGHTS

IMPORTANT

With the engine running, a permanently lit or flashing warning lamp is the sign of an operating fault.
If any of the warning lamps comes on while the lift truck is in motion, stop the lift truck under the safest possible conditions.
The lighting of some lamps may be accompanied by an audible signal. Do not ignore this warning, consult your dealer without delay.
BATTERY CHARGE INDICATOR LAMP
If the indicator lamp comes on, switch off the engine and check the
electrical circuit and the alternator belt.
PARKING BRAKE INDICATOR LAMP
This indicator lamp comes on when the parking brake is applied.
ENGINE FAULT INDICATOR LAMP
If the indicator lamp comes on, switch off the engine and look for the
cause (possible leak, request for regeneration of the particle filter, etc.).
NOTE: This lamp comes on the moment the ignition key is in position
I and remains lit until the engine starts.
SEAT BELT INDICATOR LAMP
Depending on legislation in force in the country
The light accompanied by a buzzer indicates that the operator has not
fastened the seat belt.
ENGINE SHUT DOWN INDICATOR LAMP
If the indicator lamp comes on, switch off the engine immediately and look for the cause (possible leak, request for regeneration
of the particle filter, etc.).
Rpm
°C
Raz
Nav
1
2
3
000
000
000
120
90
70
50
R
p
m
°
C
R
a
z
N
a
v
1
2
3
0
0
0
0
0
0
0
0
0
1
2
0
9
0
7
0
5
0
4 - STEERING WHEEL ADJUSTMENT LEVER
- Pull the handle (1) to adjust the steering wheel.
- Push in the handle (1) to lock the steering wheel in the desired position.
