Manitou MC 18-2 D K ST5 S1 User Manual

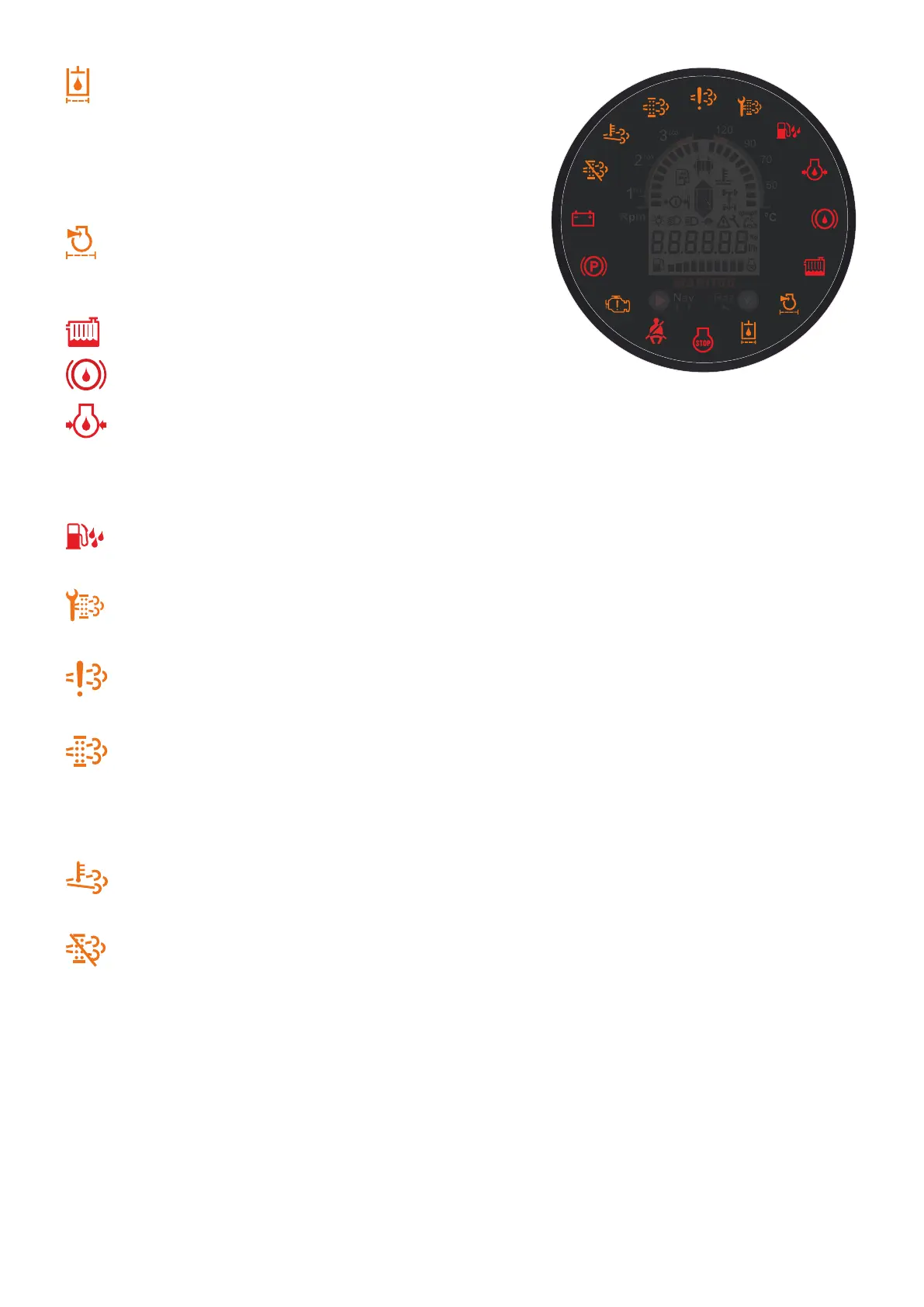

HYDRAULIC RETURN OIL FILTER CLOGGING LAMP
If the indicator lamp comes on, switch off the engine and replace the filter
cartridge (
3-MAINTENANCE).
NOTE: This lamp may come on when starting the forklift truck, and
it should go off when the hydraulic oil reaches its operating
temperature.
AIR FILTER CLOGGING INDICATOR LAMP
If the indicator lamp comes on, switch off the engine and replace the filter
cartridge (3-MAINTENANCE).
NOT USED
NOT USED
ENGINE OIL PRESSURE INDICATOR LAMP
If the indicator lamp comes on, stop the engine immediately and look for the cause (oil level, engine leak, etc.).
NOTE: After starting the engine, the indicator lamp remains lit for a few seconds then goes out when the correct engine
oil pressure is reached. The full engine power is then available.
WATER IN FUEL PRE-FILTER WARNING INDICATOR LAMP
If the indicator lamp comes on, switch off the engine immediately and carry out the necessary repairs (
3-MAINTENANCE).
PARTICLE FILTER MAINTENANCE INDICATOR LAMP
If the indicator lamp comes on, maintenance is required (3-MAINTENANCE).
PARTICLE FILTER FAULT INDICATOR LAMP
If the indicator lamp comes on, switch off the engine and check the condition of the filter (3-MAINTENANCE).
PARTICLE FILTER ACTIVATED LAMP
If the light comes on and stays on, automatic regeneration of the particle filter is in progress.
If the light flashes slowly, regeneration of the lift truck’s particle filter is required (
3-MAINTENANCE).
If the light flashes rapidly, a dealer service is essential.
HIGH GAS TEMPERATURE INDICATOR LAMP
If the light comes on, regeneration of the particle filter is in progress.
EXHAUST PARTICLE FILTER DEACTIVATED LAMP
