10 - ACCELERATOR PEDAL
11 - BRAKE AND "INCHING" TRANSMISSION CUT-OFF PEDAL
This pedal operates in two steps:
• 1 - Gradually press on the cut-off pedal, which cuts off the hydrostatic transmission
so as to carry out a slow approach with all the engine output.
• 2 - Continue to press the pedal gradually to stop the lift truck.

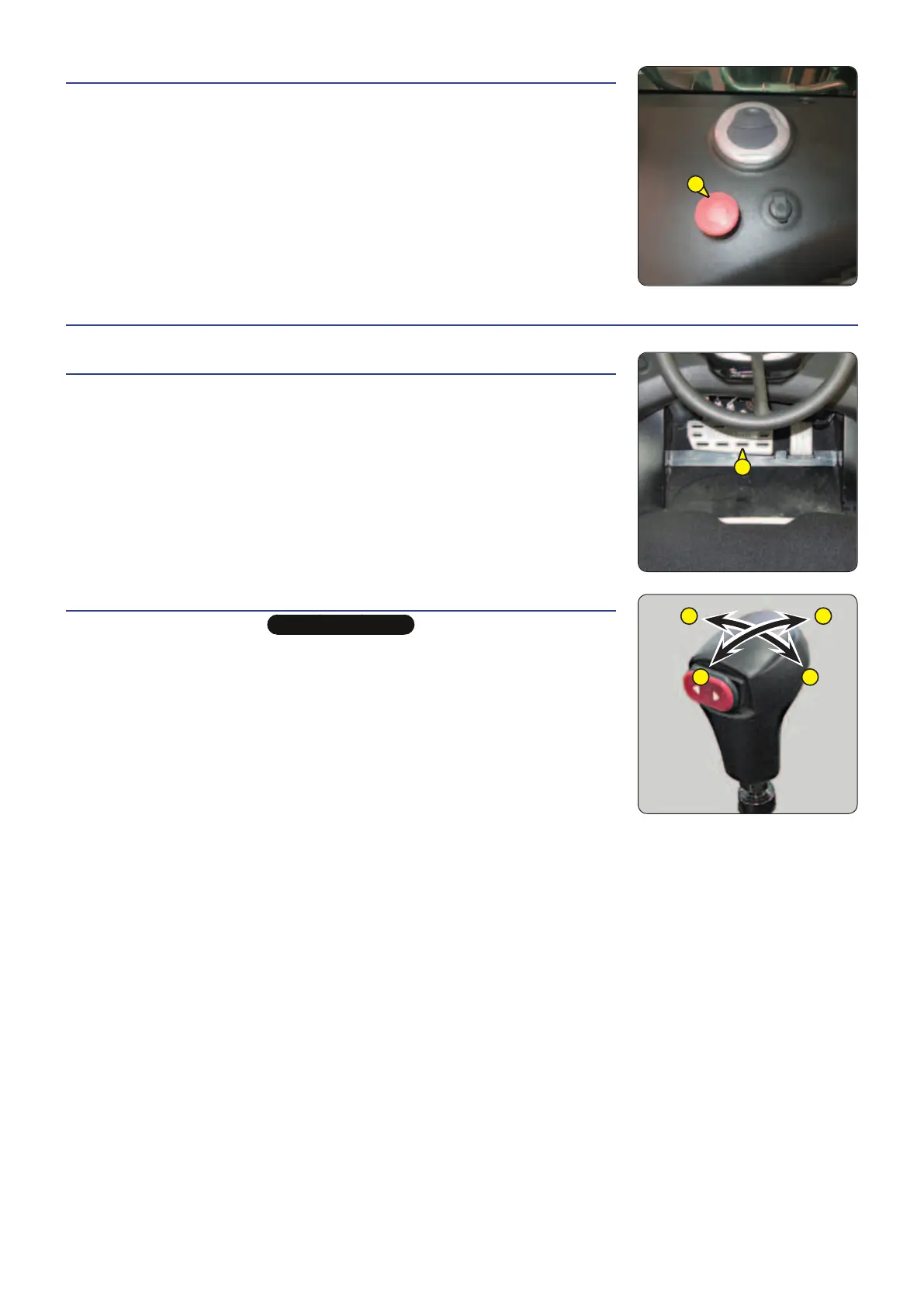

9 - EMERGENCY STOP
- Press the button (1) to stop the lift truck.
- Turn the button to unlock the emergency stop.
12 - HYDRAULIC CONTROLS
IMPORTANT
In the event of a malfunction, consult your dealer.
For your own safety, do not attempt to alter the hydraulic pressure in the system.
ANY MODIFICATION WILL INVALIDATE THE WARRANTY.
The hydraulic controls must be used carefully without jerking, to avoid accidents caused
by shaking the lift truck.
Using the hydraulic controls is only possible if the driver is present and seated correctly
in the seat.
If the operator is not present in the seat, the hydraulic controls are frozen.
A1-LIFTING
NOTE: Optionally, the engine speed is automatically increased.
A2-LOWERING
B1-CROWD
B2-DUMP
2-27
1
A2
A1B1
B2
647837 M1 (A052020)
MC 18-2/18-4 D K ST5 S1
