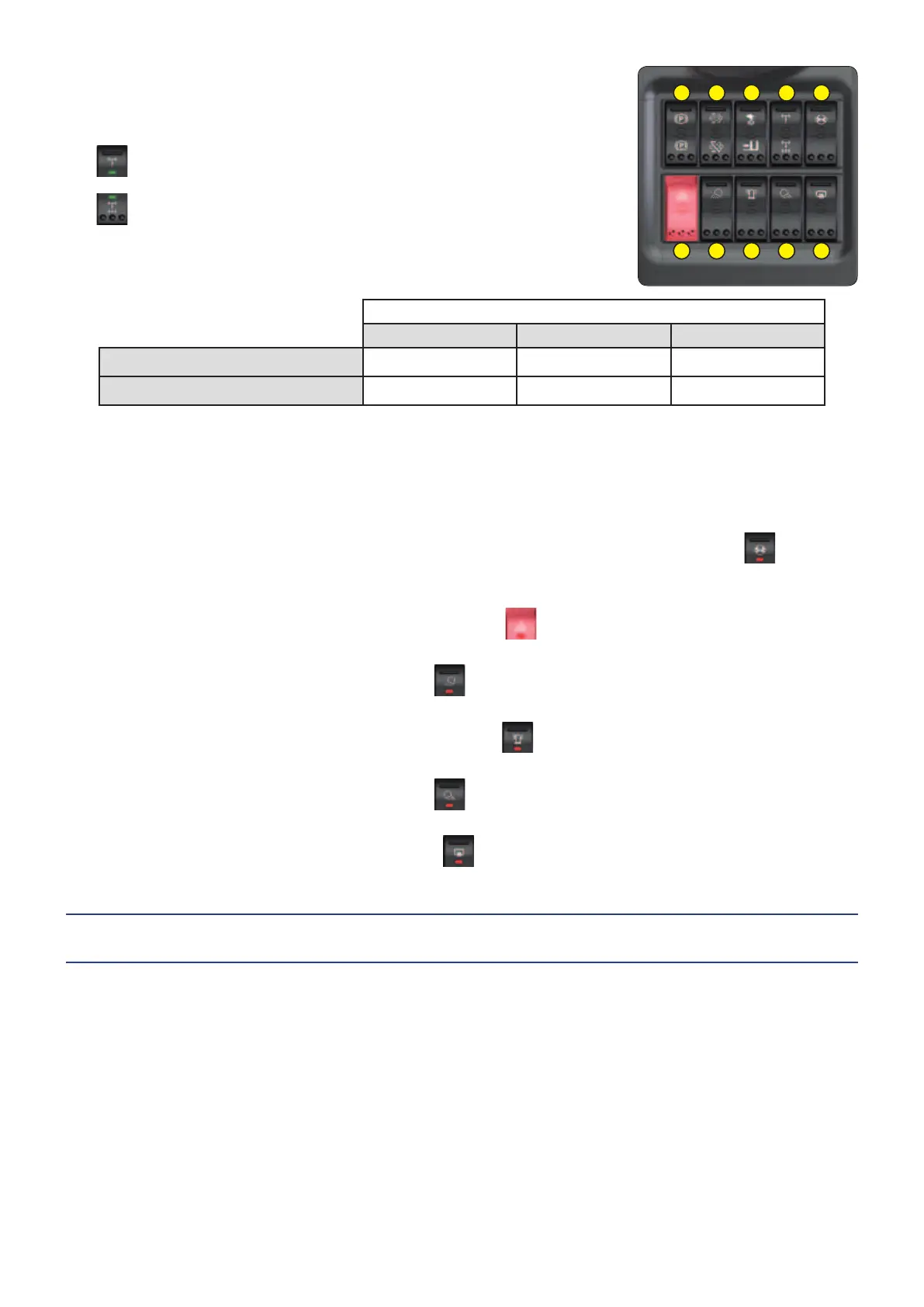

D - SWITCHING BETWEEN 4WD (low speed) <-> 2WD (high speed)
Only for MC . . -4 D
When starting the lift truck, low speed (14km/h - 4RM) is automatically selected.
- Press the top of the switch for 2 seconds to activate fast speed (24km/h - 2RM)
. The green indicator lamp on the top of the switch will come on.
- Press the bottom of the switch for 2 seconds to activate slow speed (14km/h - 4RM)
. The green indicator lamp on the bottom of the switch will come on.
CONDITIONS OF USE
FORWARD/REVERSE SELECTOR
Forward gear Neutral Reverse gear
(14km/h) 4RM --> 2RM (24km/h)
Permitted (*) Permitted (*) Impossible
(24km/h) 2RM
--> 4RM (14km/h)
Permitted (**) Permitted (**) Permitted (**)
(*) After minimum 2 seconds.
(**) With the lift truck stopped, press the service brake pedal down for 2 seconds before performing the manoeuvre.
E - DIFFERENTIAL LOCK
Only for MC . . -4 D
If skidding occurs, the differential lock improves traction, whatever the ground conditions (slippery or soft surface, etc.).
- Keep the top of the switch pressed down to enable the 4 drive wheels to rotate at the same speed
. The top red
indicator lamp will come on.
F - HAZARD WARNING LIGHTS OPTION
- Press the top of the switch to turn on the hazard warning lights . The top red indicator lamp will come on.
G - FRONT WORKING HEADLIGHTS OPTION
- Press the top of the switch to turn on the headlights . The top red indicator lamp will come on.
H - ROTATING BEACON LIGHT OPTION
- Press the top of the switch to turn on the rotating beacon light . The top red indicator lamp will come on.
I - REAR WORKLIGHTS OPTION
- Press the top of the switch to turn on the headlights . The top red indicator lamp will come on.
J - REAR DEFROST OPTION
- Press the top of the switch to demist the rear window . The top red indicator lamp will come on.
7 - HORN
8 - IGNITION KEY
This switch has 4 positions:
• P - Ignition off, parking position.
• O - Ignition cut-off and engine stop.
• I - Ignition and preheat.
• II - Start-up and return to position I as soon as the key is released.
2-26
A
GF
B
H
C
I
D
J
E
647837 M1 (A052020) MC 18-2/18-4 D K ST5 S1
