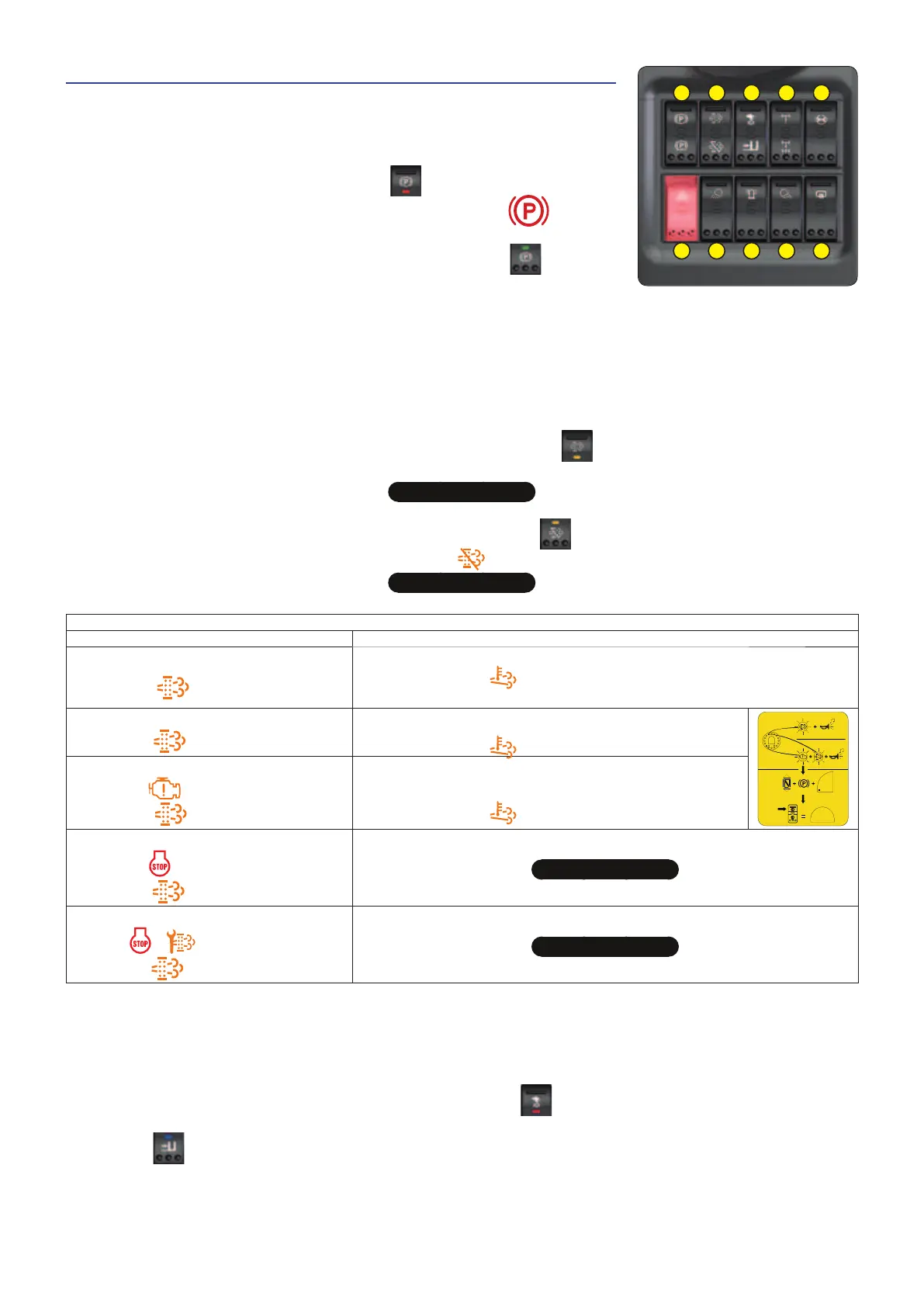

6 - SWITCHES
NOTE: The location of the switches may vary depending on the options.
A - PARKING BRAKE
The parking brake has 3 functions (brake on/automatic/released):
- Press the top of the switch to apply the brake
. The red indicator lamp on
the top of the switch will come on together with the dashboard indicator
lamp.
- Press the bottom of the switch to put the brake in automatic . The green
indicator lamp on the bottom of the switch will come on.
- Press the bottom of the switch for 2 seconds to release the parking brake. The green indicator lamp on the bottom of
the switch will go out.
NOTE: - By default, when the lift truck is started, the brake is in automatic mode.
- If there is a fault with the braking circuit, the brake indicator lamp flashes red.
B - PARTICLE FILTER REGENERATION
NOTE: By default, particle filter regeneration is inactive and the switch indicator lamps are off.
- Press the top of the switch to activate “lift truck stationary” regeneration (3-MAINTENANCE). The orange
indicator lamp on the top of the switch will come on.

IMPORTANT

If you are performing regeneration during the 500-hour routine servicing, replace the engine oil after regeneration.
- Press the bottom of the switch to deactivate automatic regeneration . The orange indicator lamp on the bottom
of the switch will come on together with the dashboard
indicator lamp.

IMPORTANT

Disabling the automatic exhaust regeneration remains a function that is only to be used in case of necessity (confined or unventilated space, etc.).
MANAGEMENT OF PARTICLE FILTER REGENERATION
SIGNALS ACTIONS
Normal soot level
+2 short beeps
• Idling speed increases, indicating that automatic regeneration is in progress.
• the indicator lamp
may come on accompanied by a long beep.
NOTE: Preferably wait until automatic regeneration is completed before switching off the ignition.
Moderate soot level
*
+ 2 short beeps
• Perform "lift truck stationary" regeneration (3-MAINTENANCE).
• the indicator lamp may come on accompanied by a long beep.
N° 52681322
WAIT
≈ 30’
2‘’
MINI
RPM
High soot level
+ 1 long beep then
*
+ 2 short beeps
• Lift truck efficiency is reduced.
• Perform "lift truck stationary" regeneration (
3-MAINTENANCE).
• the indicator lamp
may come on accompanied by a long beep.
Very high soot level
+ 2 short beeps then
**
+ 5 short beeps
• Lift truck efficiency is reduced.

IMPORTANT

Stop the lift truck and contact your dealer.
Particulate filter clogged
+ + 2 short beeps then
**
+ 5 short beeps
• The particle filter must be replaced.

IMPORTANT

Stop the lift truck and contact your dealer.
(*) slow flashing
(**) rapid flashing
C - HYDRAULIC MOVEMENT NEUTRALISATION OPTION
ADDITIONAL ATTACHMENT OPTION
- Press the top of the switch to activate hydraulic movement cut-off . The red indicator lamp on the top of the switch
will come on.
- Hold the button to use an additional attachment or hydraulic attachment locking (INSTRUMENTS AND CONTROLS).
2-25
A
GF
B
H
C
I
D
J
E
