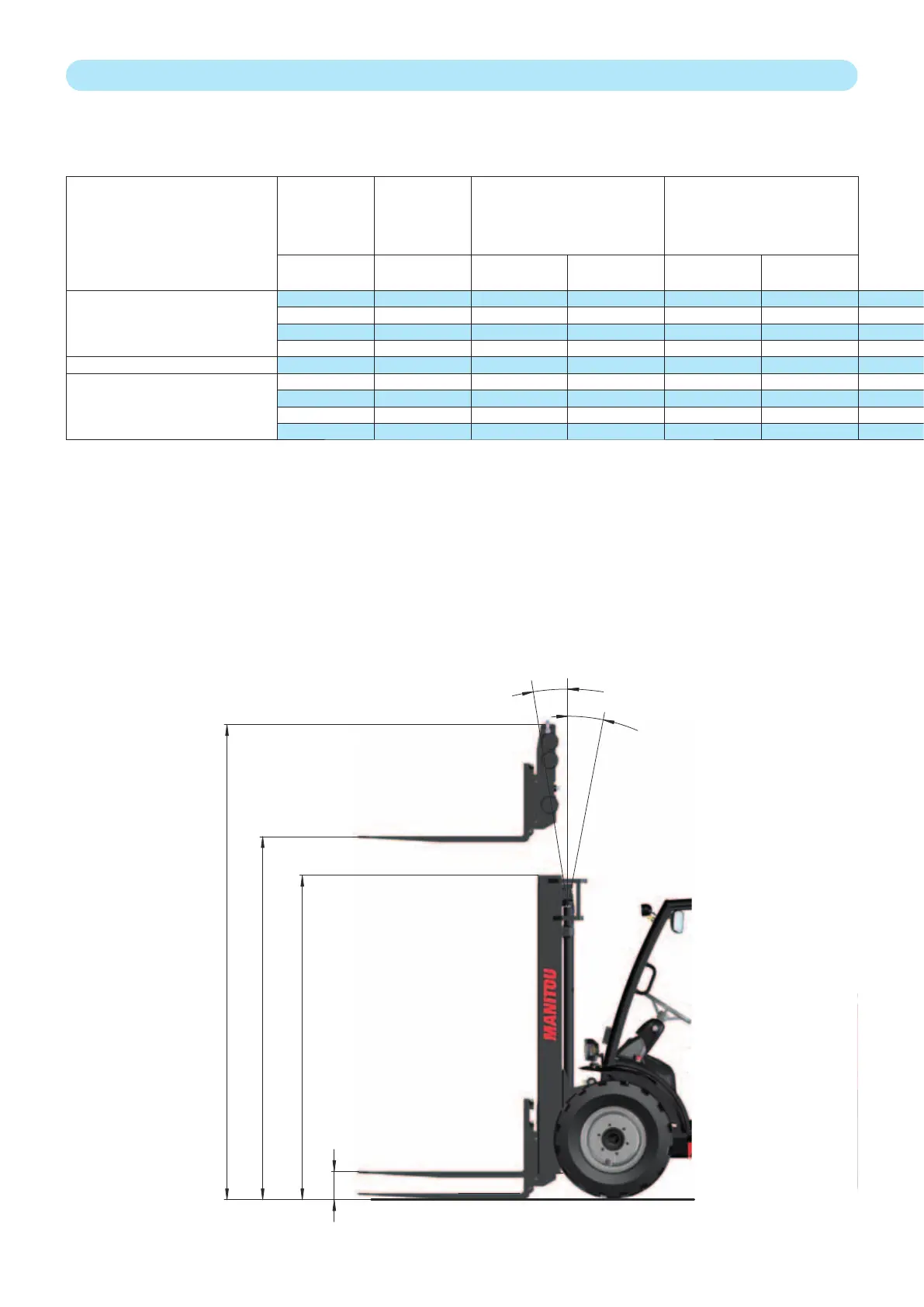

MAST CHARACTERISTICS AND LOAD CHARTS
MC 18-2 D K ST5 S1
MC 18-4 D K ST5 S1
LIFTING MAST FREE LIFT HEIGHT OF MAST TILTING
h3 (mm) h2 (mm)
h1 (mm)
lowered
h4 (mm)
extended
FRONT
α (°)
MISCELLANEOUS
β (°)
DUPLEX TOTAL VISIBILITY
3300 85 2348 4018 10 12
3700 85 2608 4428 10 12
4000 85 2798 4768 10 12
4500 85 3048 5268 10 12
TRIPLEX WITHOUT FREE LIFT 3300 135 1888 4048 10 12
TRIPLEX FREE LIFT
3700 1305 1998 4453 10 12
4300 1505 2198 5053 10 12
4700 1655 2348 5453 10 12
5500 1915 2608 6253 6 6
2-14
α~
β
~
h1
h2
h3
h4
647837 M1 (A052020)
MC 18-2/18-4 D K ST5 S1
