“PREMIUM” DRIVER'S PNEUMATIC SEAT
DESIGNED FOR MAXIMUM COMFORT, THIS SEAT CAN BE ADJUSTED AS FOLLOWS.

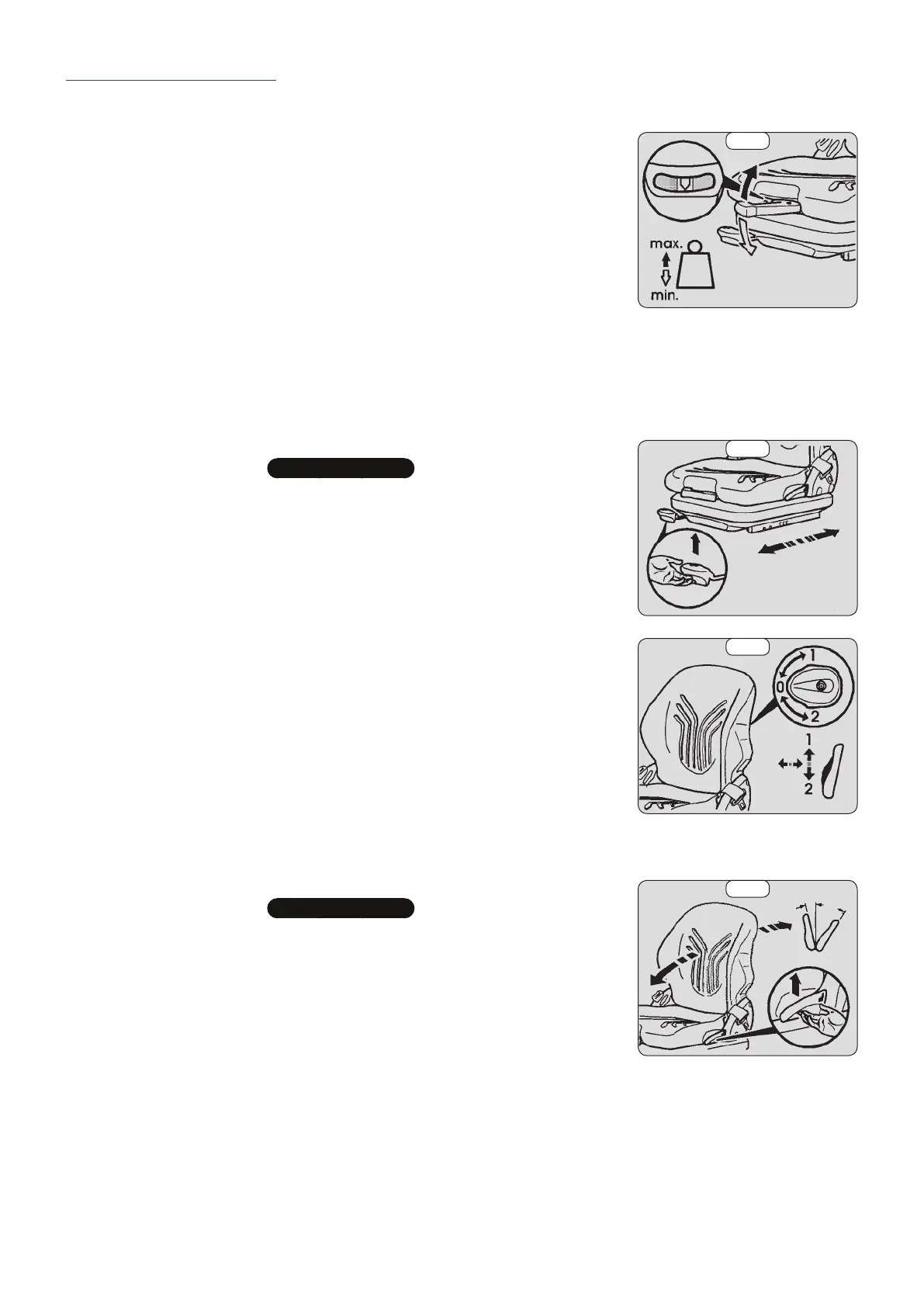

WEIGHT ADJUSTMENT (FIG. A)
Adjust the weight when the driver is sitting on the seat.
- Pull the weight adjustment lever (1) fully out.
- Move the weight adjustment lever (1) upwards to increase the weight or downwards
to reduce it.
- The driver's weight is correctly adjusted when the arrow is in the centre of the
indicator (2).
- After completing the weight adjustment, fully lower the lever (1).
NOTE: To avoid any health problems, it is recommended that the weight adjustment
is checked and adjusted before starting the lift truck.
LONGITUDINAL ADJUSTMENT (FIG. B)
IMPORTANT
Only operate the lever by its recessed section and do not grasp from below, at the risk of crushing the hand.
- Adjust the locking lever until you reach the position required. This then locks and
the seat will not shift into another position.
LUMBAR ADJUSTMENT (FIG. C)
This increases the comfort of the seat and the drivers freedom of movement.
- Turn the handle (1) to adjust the height and depth of the lumbar support of the
upper part of the back-rest.
- Turn the handle (2) to adjust the height and depth of the lumbar support of the
lower part of the back-rest.
ANGLE ADJUSTMENT OF THE BACKREST (FIG. D)
IMPORTANT
If you do not support the backrest when making adjustments, it will tilt forwards.
- Support the backrest, pull the lever and position the backrest to find the desired
position.
MAINTENANCE
- Keep your seat clean to ensure it operates efficiently
- Clean the cushions using a suitable product.
- Apply to a small hidden area first, to check the colour-fastness of covering.
- Avoid wetting the cushions.
2-34
A
B
C
D
647837 M1 (A052020)
MC 18-2/18-4 D K ST5 S1
