Manitou MC 18-2 D K ST5 S1 User Manual

REPLACE Engine oil
REPLACE Engine oil filter
Place the lift truck on level ground, let the engine run at idle for a few minutes, then
stop the engine.

IMPORTANT

Dispose of the drain oil in an ecological manner.

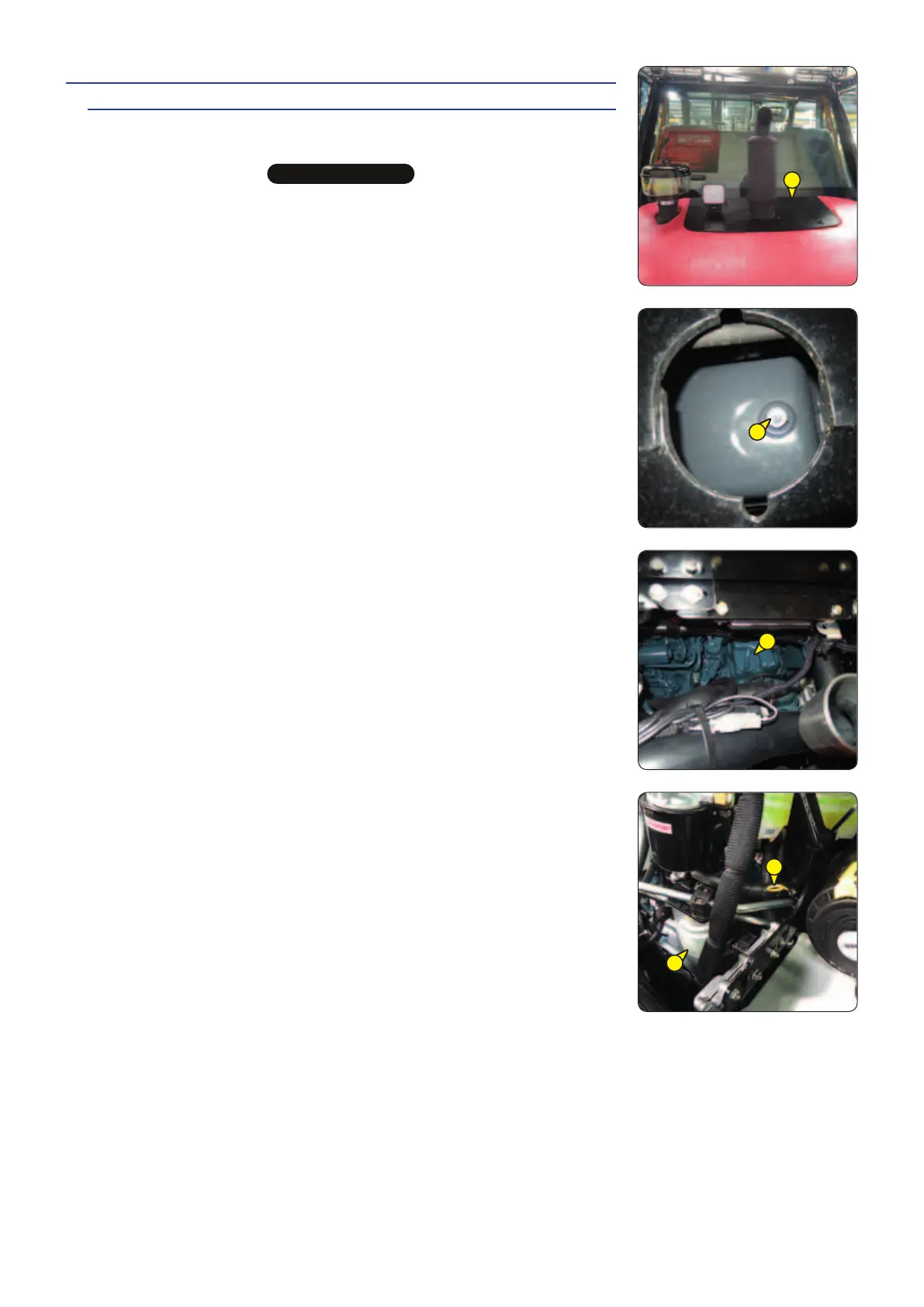

- Open the engine cover (2-DESCRIPTION-INSTRUMENTS AND CONTROLS).
- Remove the access panel 1.
- Clean the areas around the plugs and oil filter.
DRAINING THE OIL
- Place a container under the drain port 2 and unscrew the plug.
- Remove the filler plug 3 to ensure that the oil is drained properly.
REPLACEMENT OF THE FILTER
- Clean the filter bracket with a clean, lint-free cloth.
- Unscrew and recycle the engine oil filter 4, together with its seal.
- Lightly grease the seal before refitting the new oil filter ( FILTER CARTRIDGES
AND BELTS) on its bracket.
- Tighten the oil filter by hand pressure only and lock the filter in place by a quarter
turn.
FILLING WITH OIL
- Refit and tighten the drain plug2 (tightening torque 32,4-37,2 N.m).
- Fill up with oil (LUBRICANTS AND FUEL) through filler hole3.
- Wait a few minutes to allow the oil to flow into the sump.
- Start the engine and let it run for a few minutes.
- Check for possible leaks from the drain plug and the oil filter.
- Stop the engine; wait a few minutes
- Check the correct level between the two notches on the dipstick 5.
- Top up if necessary.
- Refit the filler plug3.
- Refit access panel1.
INITIALISATION OF 500-HOUR MAINTENANCE
- Consult your dealer.
3 - 21
4
5
3
2
1
647837 M1 (A052020) MC 18-2/18-4 D K ST5 S1
