Manitou MHT 10225 - Removing the Engine Components; Preparation and Safety Instructions

(05/06/2012)10-06-M184EN
10
2 ENGINE REMOVAL
1
5
6
3
4
7
5
1
8
2

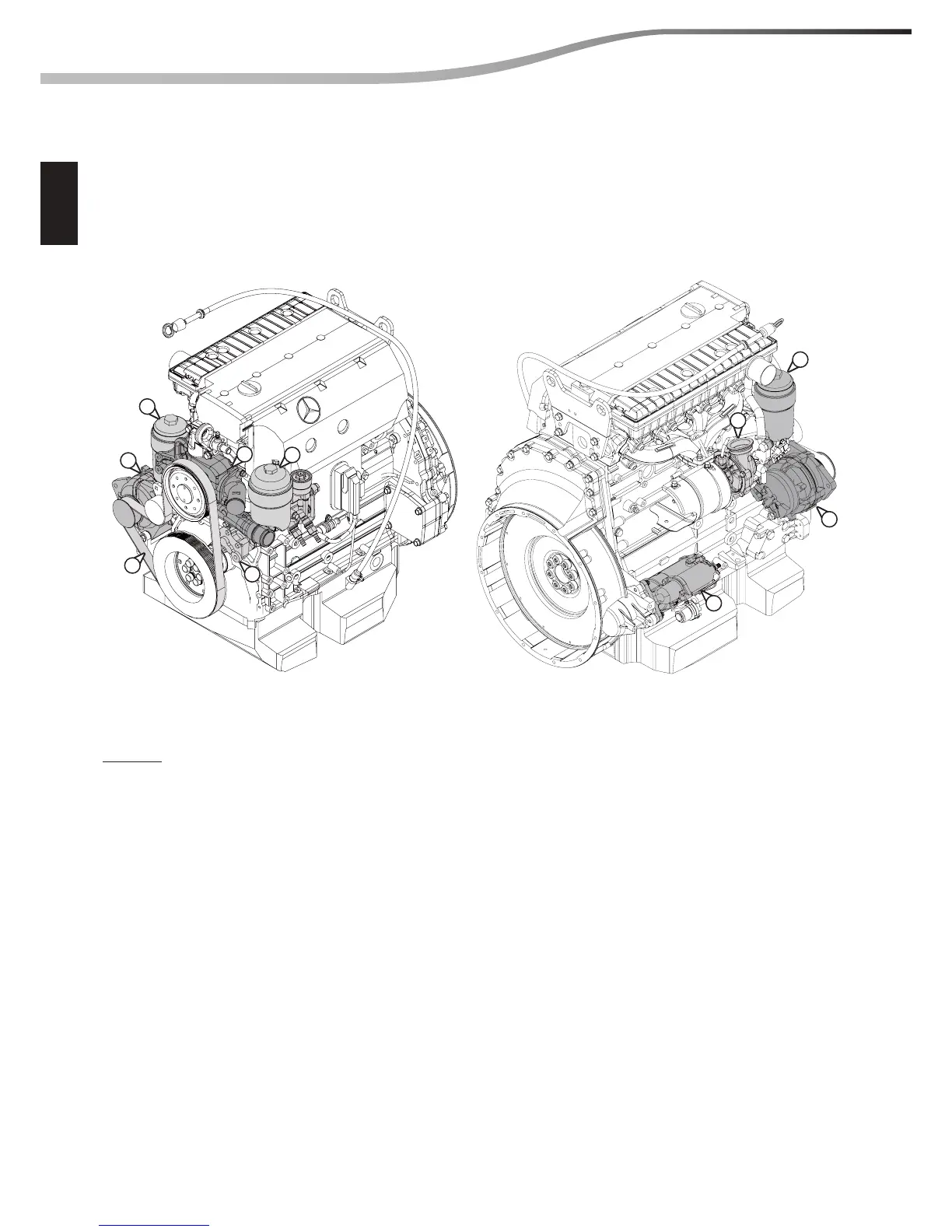

REMOVING THE ENGINE COMPONENTS
Legend:
1 - Alternator
2 - Starter motor
3 - Alternator belt
4 - Fuel  lter
5 - Oil  lter
6 - Engine cooling water pump
7 - Fuel pump
8 - Turbocompressor
PREPARATION AND SAFETY INSTRUCTIONS
Deactivate the ignition key and disconnect the negative pole from the battery.
