Manitou MHT 10225 - Removing the Radiator

(05/06/2012) 10-06-M184EN
10
19ENGINE REMOVAL

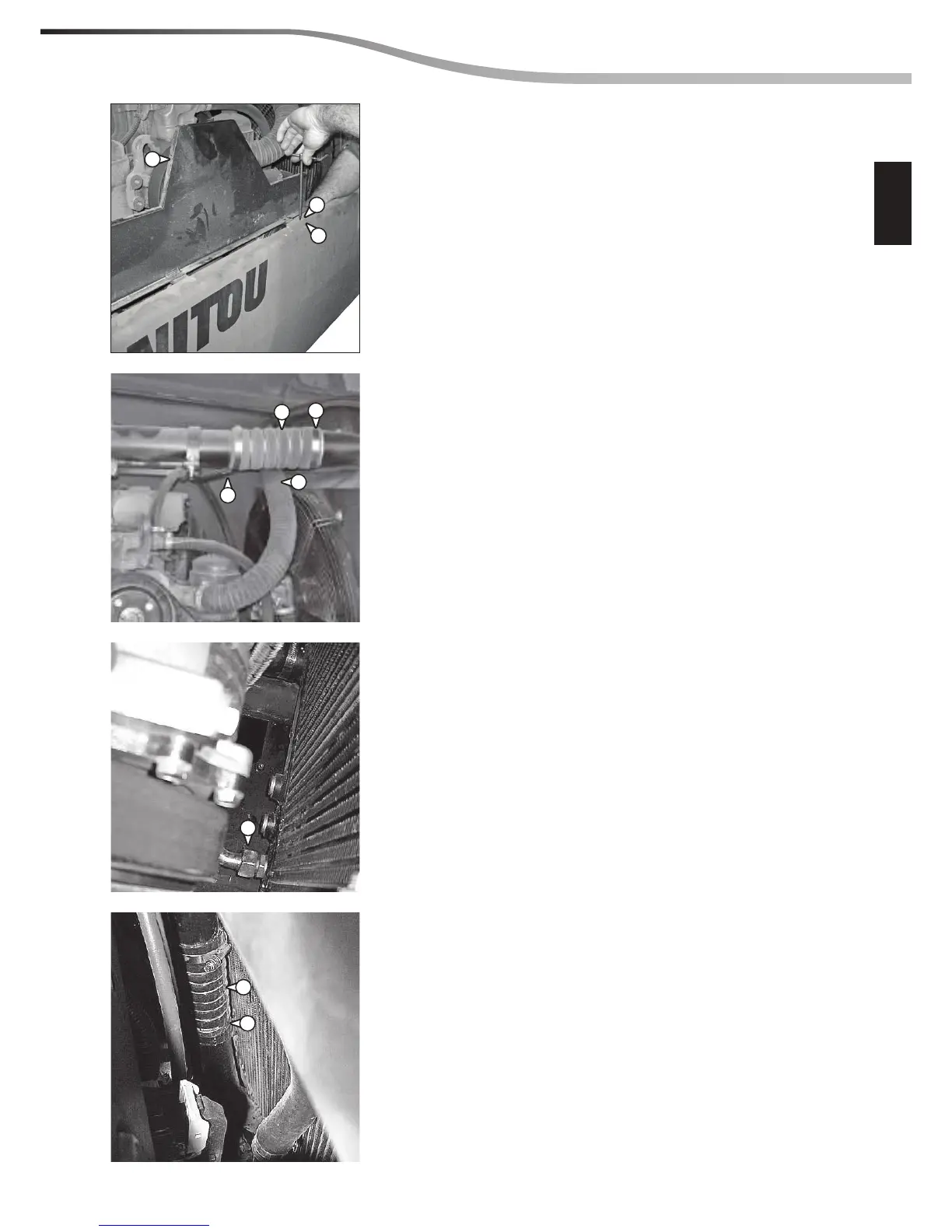

REMOVING THE RADIATOR
Carry out the "Disassembling the radiator motor" operation.
Remove the guard (Ref. 1) after unscrewing the screws (Ref. 2)
and the nuts (Ref. 3).
Slacken the clamp (Ref. 4) and remove the hose (Ref. 5).
Also disconnect pipes (Ref. 6 and 7) from the radiator.
Disconnect the tube (Ref. 8).
Slacken the clamp (Ref. 9) and remove the hose (Ref. 10).
2
1
3
4
5
7
6
9
10
8
