(25/11/2011) 10-07-M184EN
10
21ENGINE REFIT

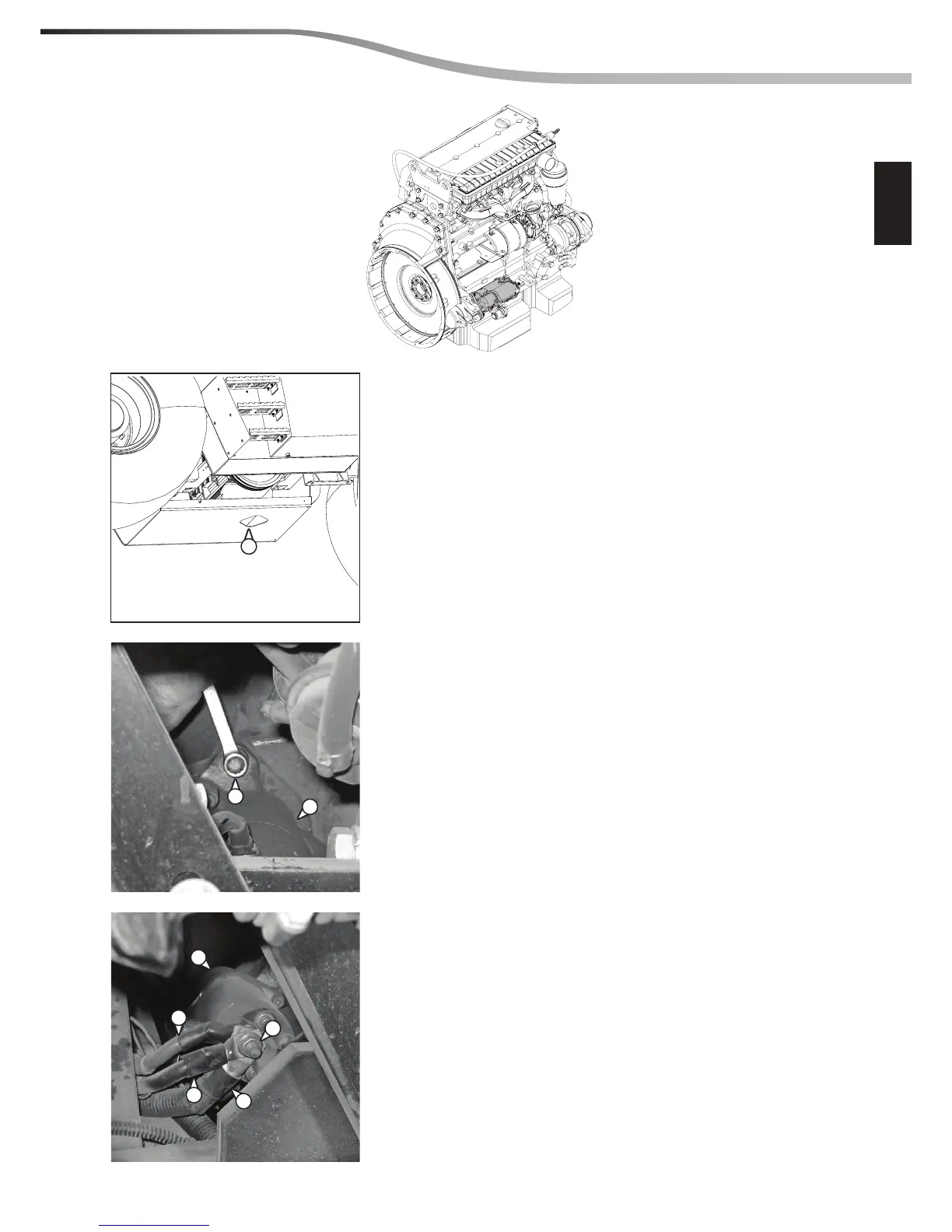

E - REINSERTING THE STARTER MOTOR
Reposition the starter motor by passing it through the slot (Ref.
1) under the engine compartment.
Re t the starter motor (Ref. 2) by means of the screws (Ref. 3)
on the engine base.
Reconnect the electric wires (Ref. 4-5-6) to the starter motor
(Ref. 2), locking it by means of the nut (Ref. 7).
1
3
2
5
4
2
6
7
