Manitou MHT 10225 - A - Removing the Alternator Belt

(05/06/2012) 10-06-M184EN
10
3ENGINE REMOVAL

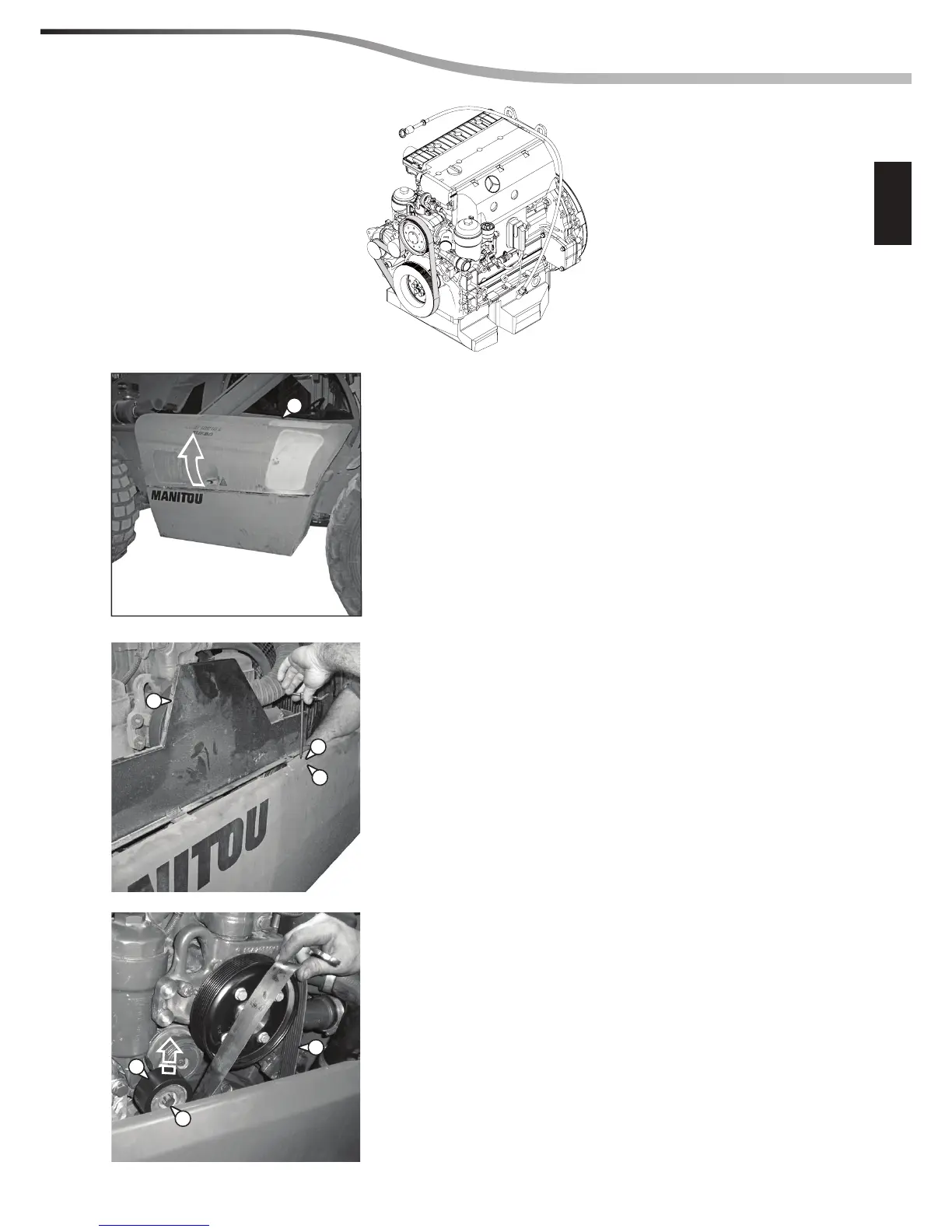

A - REMOVING THE ALTERNATOR BELT
Open the hood (Ref. 1) of the engine compartment.
Remove the guard (Ref. 2) after unscrewing the screws (Ref. 3)
and the nuts (Ref. 4).
Insert an unlocking lever on the screw (Ref. 5), tilt the belt
tensioner roller upwards (Ref. 6) and remove the belt (Ref. 7).
1
3
5
7
6
2
4
