12 ENGINE REMOVAL
2
3
1

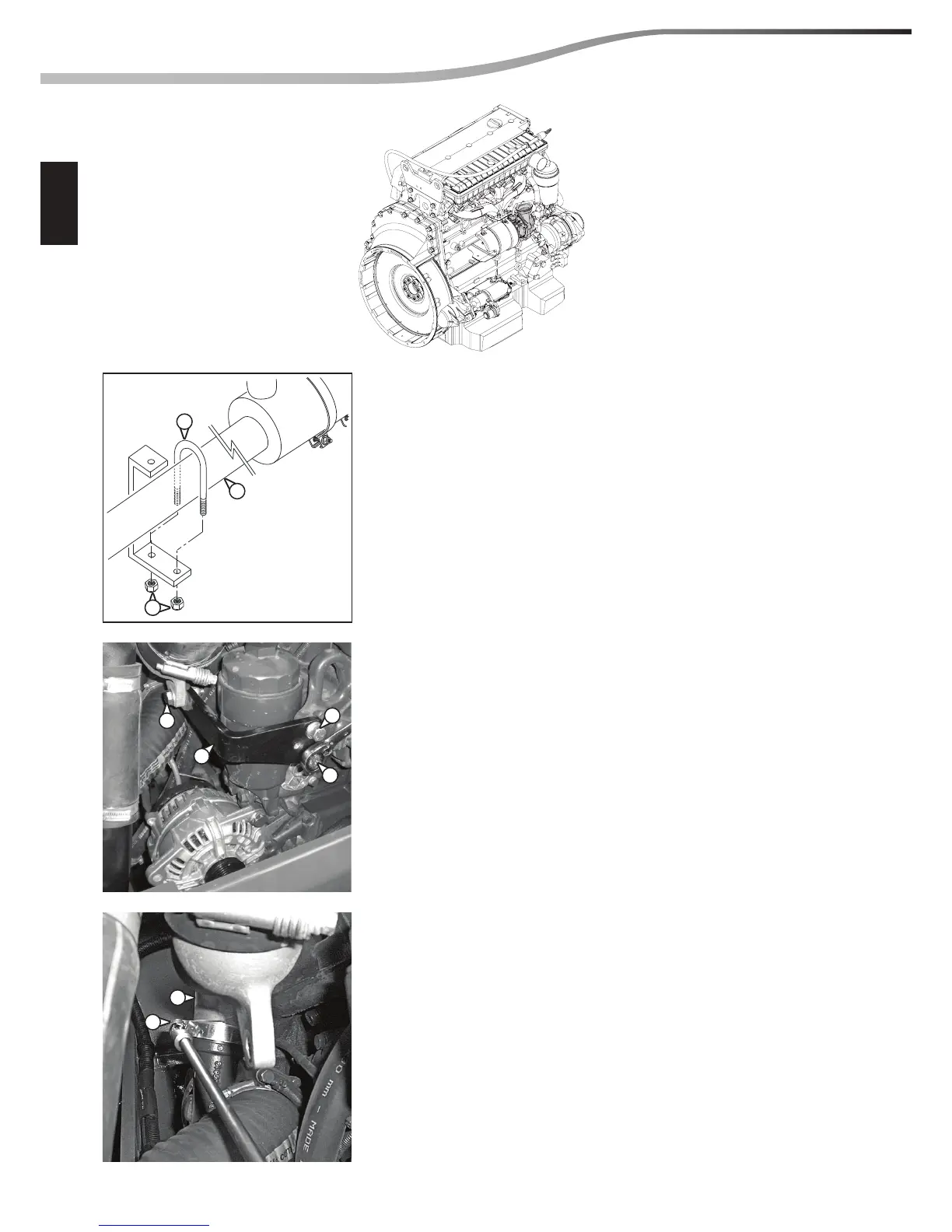

G - REMOVING THE TURBOCOMPRESSOR
Slacken the 2 nuts (Ref. 1) and remove the 2 brackets (Ref. 2)
which secure the air suction duct (Ref. 3).
Slacken the screws (Ref. 4 and 5) and remove the bracket (Ref. 6).
Slacken the clamp (Ref. 7) and remove the hose (REf. 8).
b
Fit caps on all the ducts to prevent foreign bodies from
entering the circuits.
5
6
8
7
4
4
