13ENGINE REMOVAL

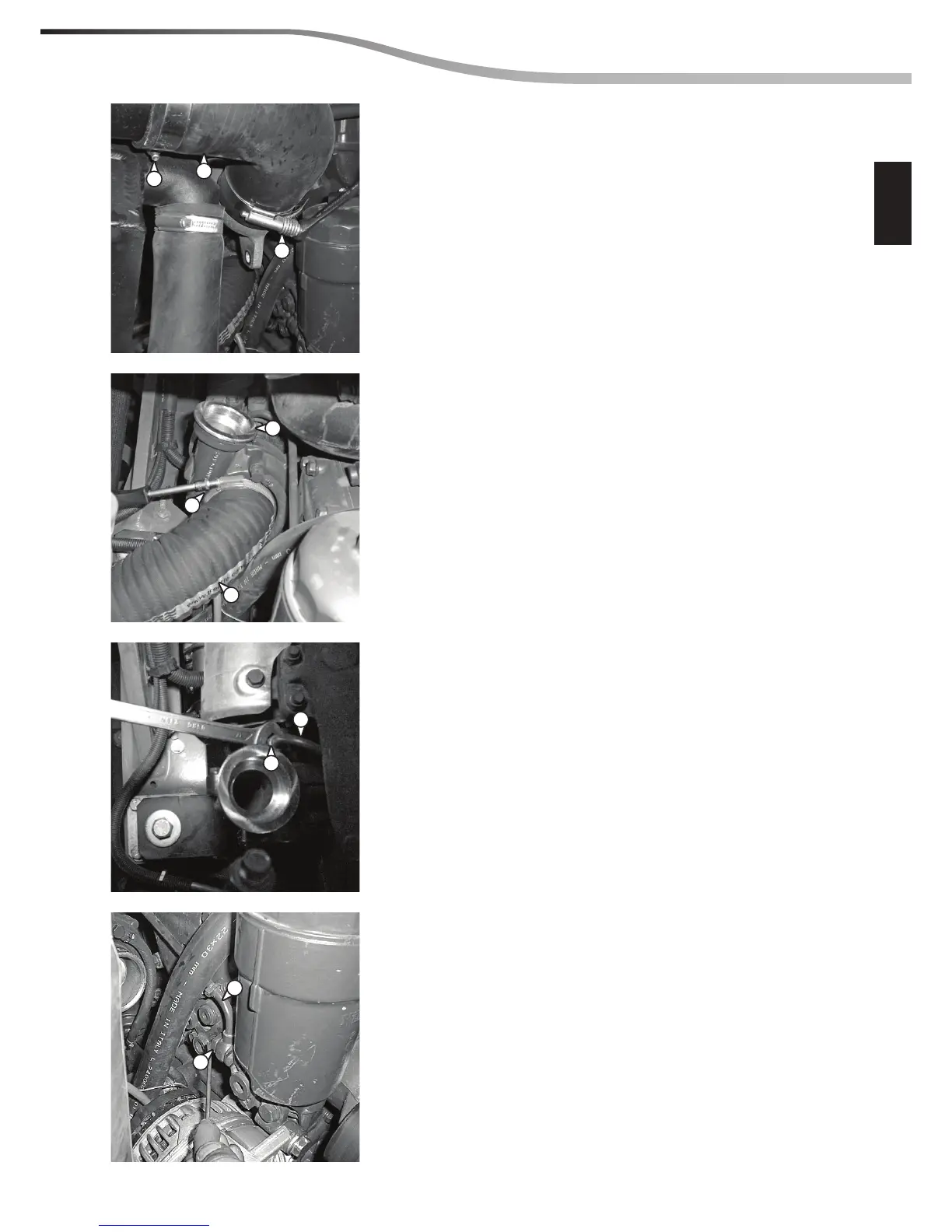

Slacken the 2 clamps (Ref. 9) and remove the suction hose (REf.
10) on the air radiator.
Slacken the clamp (Ref. 11) and remove the suction hose (Ref.
12) from the turbocompressor (Ref. 13).
Unscrew the  tting (Ref. 14) and remove the lubrication delivery
tube (Ref. 15) from the turbocompressor.
Unscrew the  tting (Ref. 16) and remove the lubrication delivery
tube (Ref. 17).
