Manitou MHT 10225 - Instructions for Assembling the Air Conditioner

(07/03/2012)110-04-M184EN
110
2
OPTIONS - ATTACHMENTS CONTROL AND
ADJUSTMENT
AIR CONDITIONER
INSTRUCTIONS FOR ASSEMBLING THE AIR CONDITIONER
Carry out the assembling operations in a dry, dust-free area. Use PAG ISO 100 SP 20 COMPRESSOR oil
for lubricating all the gaskets and sealing surfaces before assembly.
Description Type Tightening torque
Condenser outlet -  lter inlet pipe M6 16 N.m
Filter outlet - expansion valve inlet pipe M6 16 N.m
Compressor outlet - cab inlet pipe M8 25 N.m
Cab outlet - condenser inlet pipe M8 25 N.m
Expansion valve outlet - cab inlet pipe M10 33 N.m
Cab outlet - compressor inlet pipe M10 33 N.m

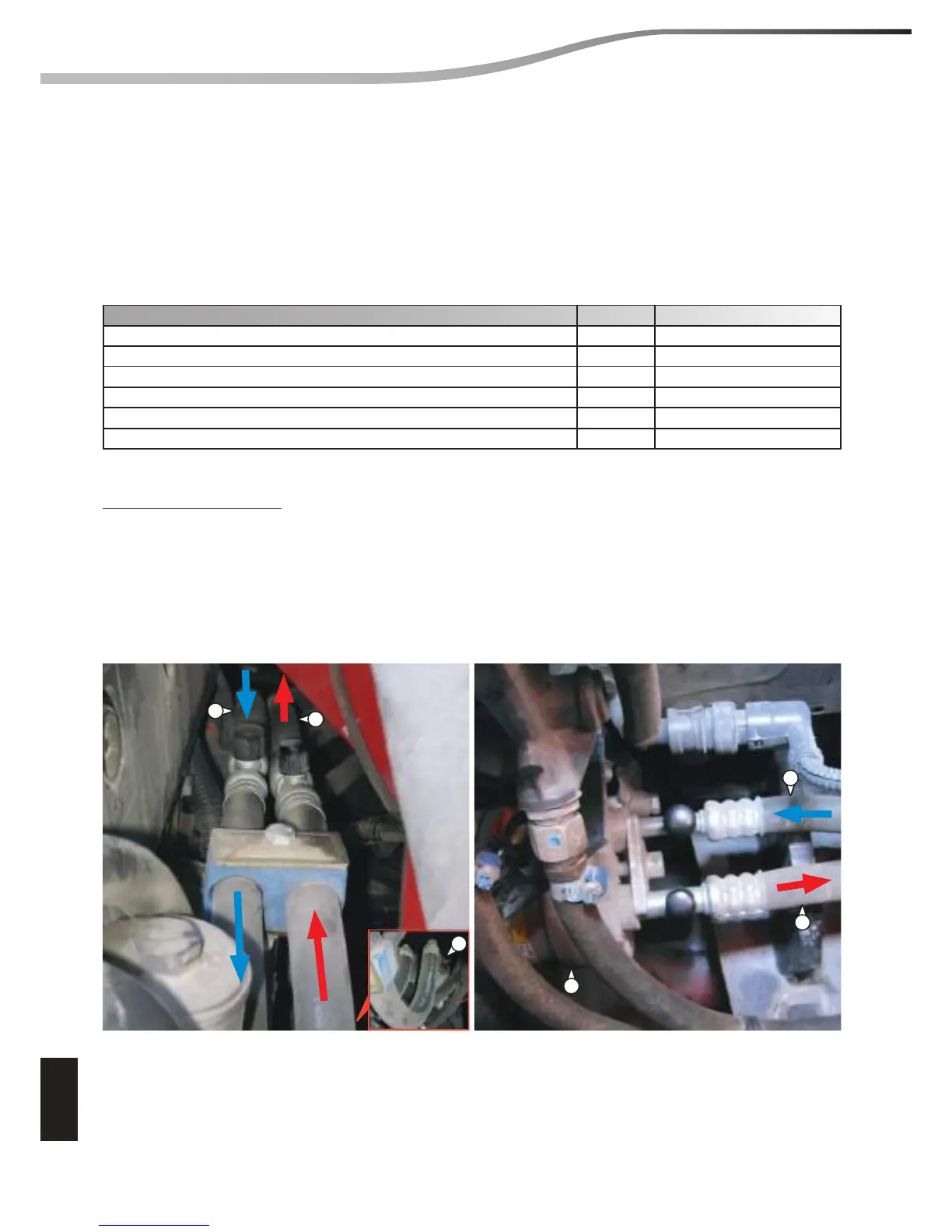

Compressor connection:
Legend:
1 - Compressor
2 - Cab outlet/compressor inlet pipe
3 - Compressor outlet/cab inlet pipe
2
3
1
1
2
3
Vehicle MHT 10120 Vehicles MHT 7140 - 990 - 10160 - 10180 -
10210 - 10225
