Manitou MHT 10225 - Reinserting the Radiator Motor

(25/11/2011) 10-07-M184EN
10
9ENGINE REFIT
REINSERTING THE RADIATOR MOTOR

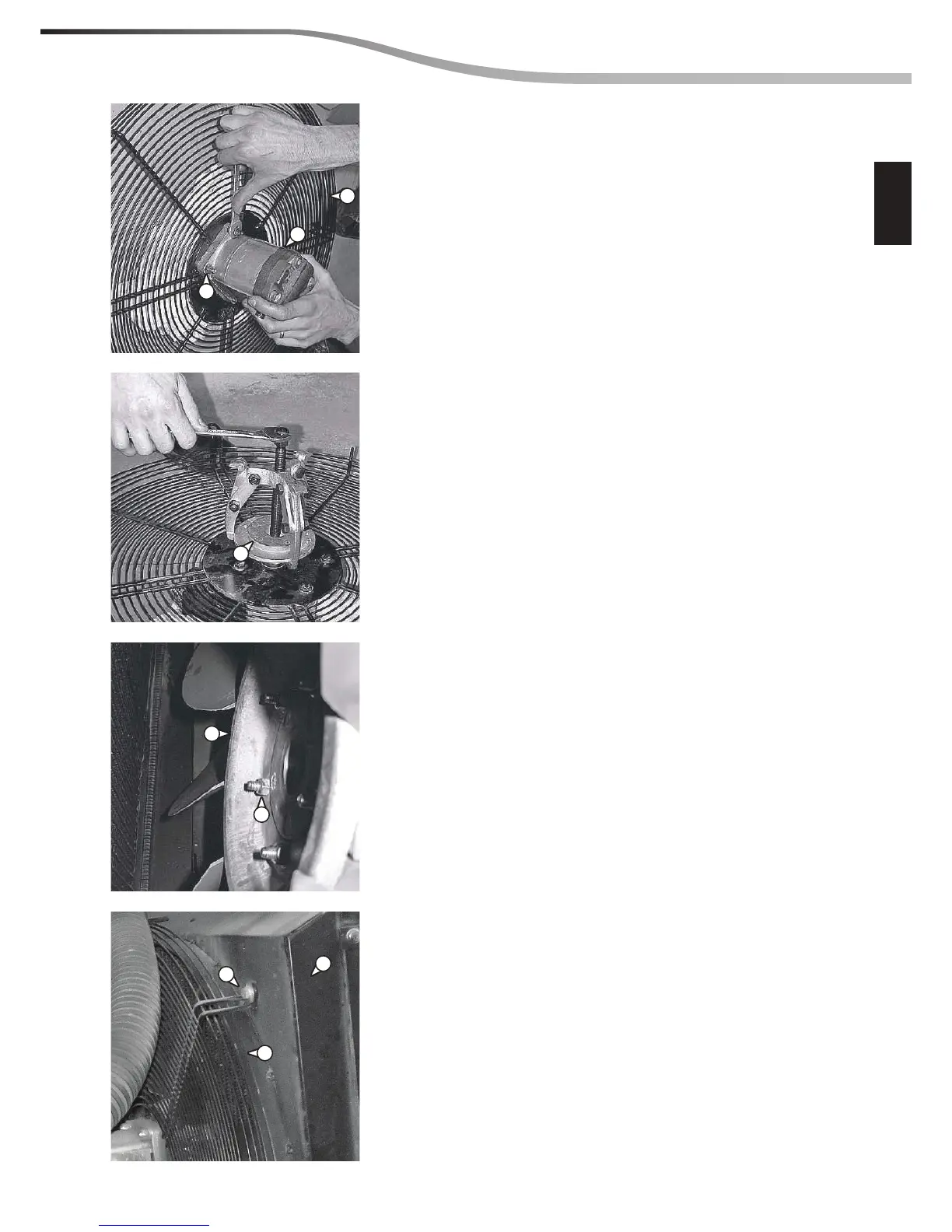

Inserting the hydraulic motor (Ref. 1) on the grille (Ref. 2) and
 x by means of screws Ref. 3).
Insert the fan hub (Ref. 4).
Tighten the nuts (Ref. 5) used for  tting the fan (Ref. 6).
Re t the grille (Ref. 2) by means of the screws (Ref. 8)
on the radiator (Ref. 7) and restore the radiator to its position
with the help of the overhead crane.
