8 ENGINE REFIT

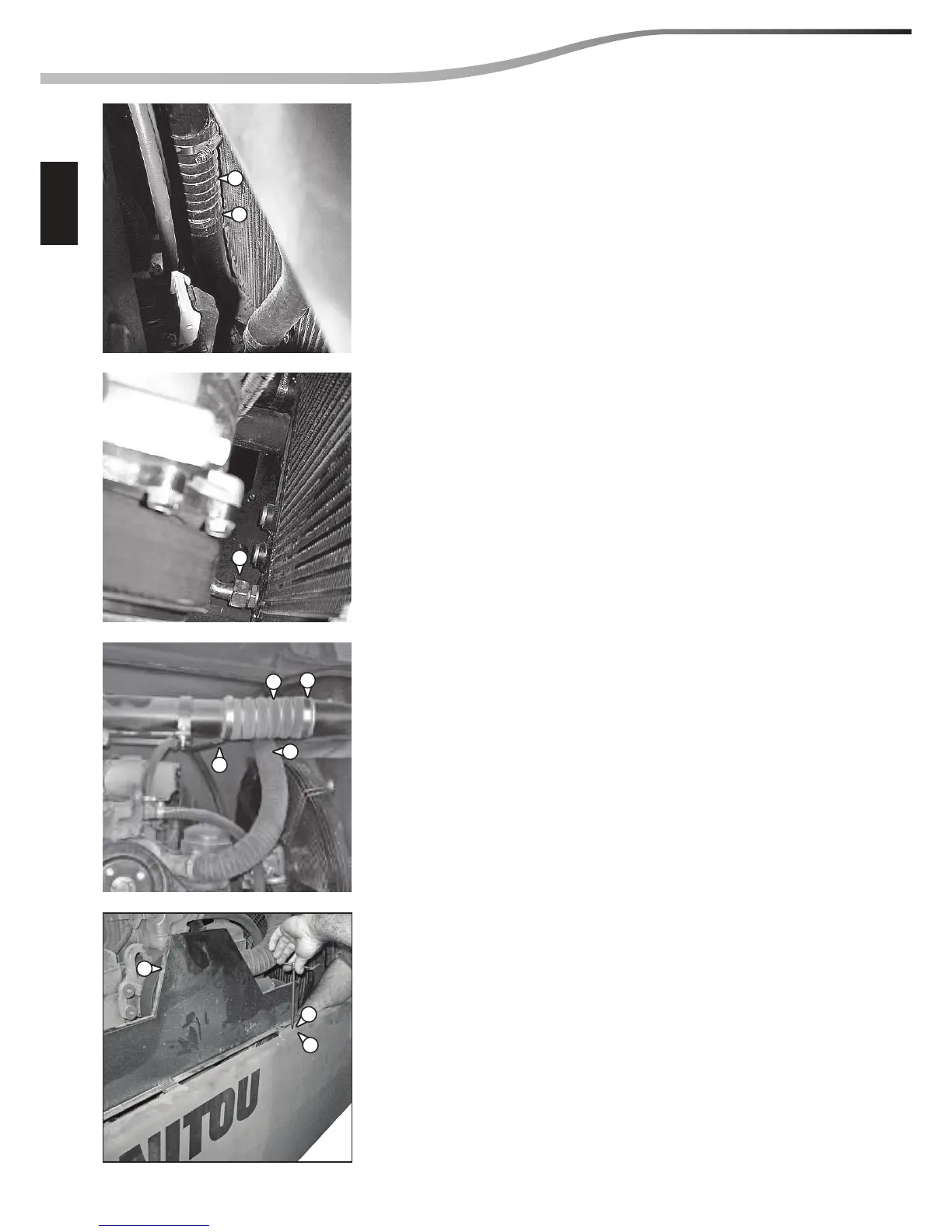

Insert the hose (Ref. 6) and screw the clamp (Ref. 7).
Connect pipe (Ref. 8).
Reconnect the pipes (Ref. 9 and 10) on the radiator.
Insert the hose (Ref. 11) and screw the clamp (Ref. 12).
Carry out the "Reassembling the radiator motor" operation.
Fit the guard (Ref. 13) by means of the screws (Ref. 14) and the
nuts (Ref. 15).
