Manitou MHT 10225 - Reinserting the Radiator

(25/11/2011) 10-07-M184EN
10
7ENGINE REFIT

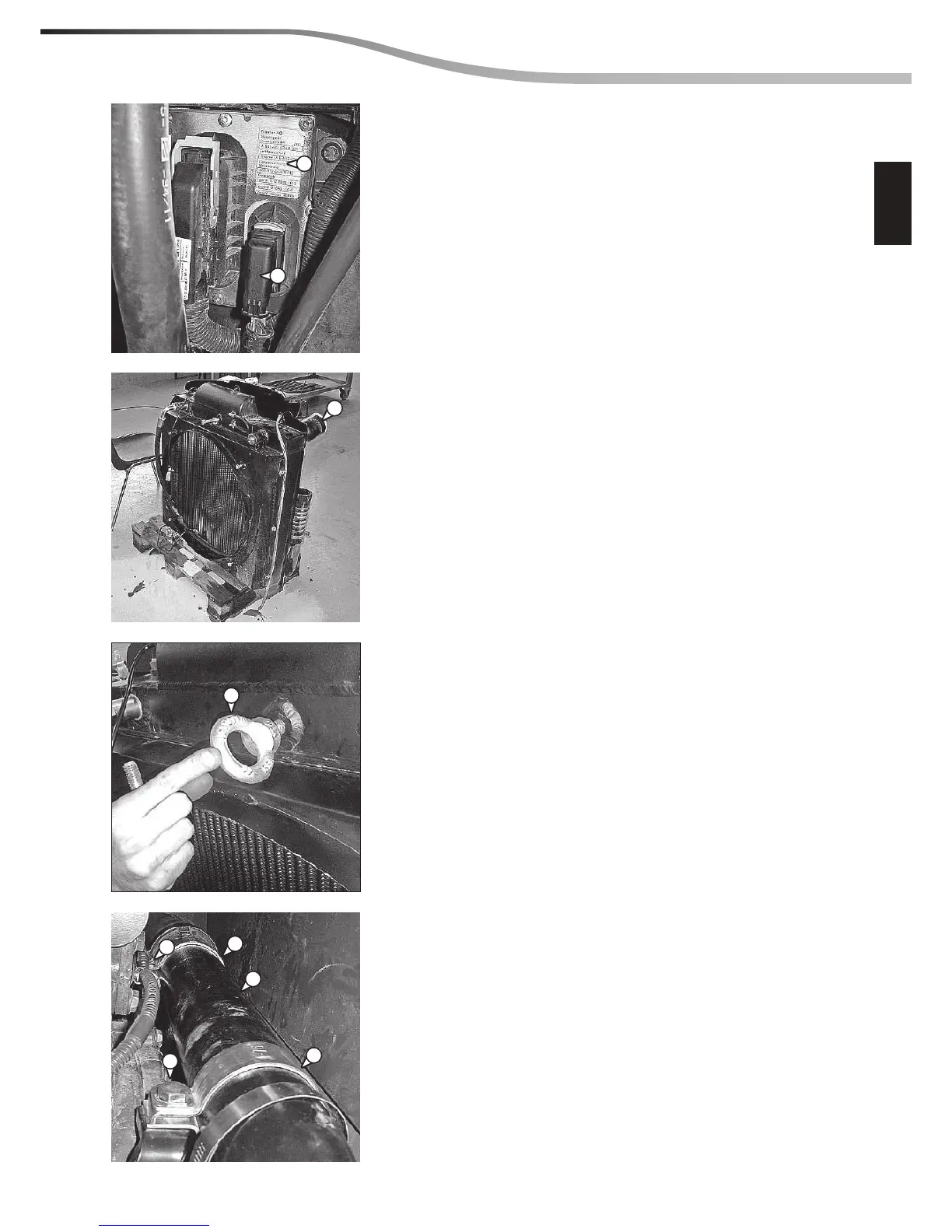

Connect the plug (Ref. 38) on the engine control unit (Ref. 39).
REINSERTING THE RADIATOR
Insert the radiator (Ref. 1) on the vehicle with the help of an
overhead crane.
Remove the eyebolt (Ref. 2) from the radiator.
Insert the pipe (Ref. 3) and  t the brackets (Ref. 4) using the
screws (Ref. 5).
