Manitou MHT 10225 - D - Removing the Oil Filter

(05/06/2012) 10-06-M184EN
10
7ENGINE REMOVAL

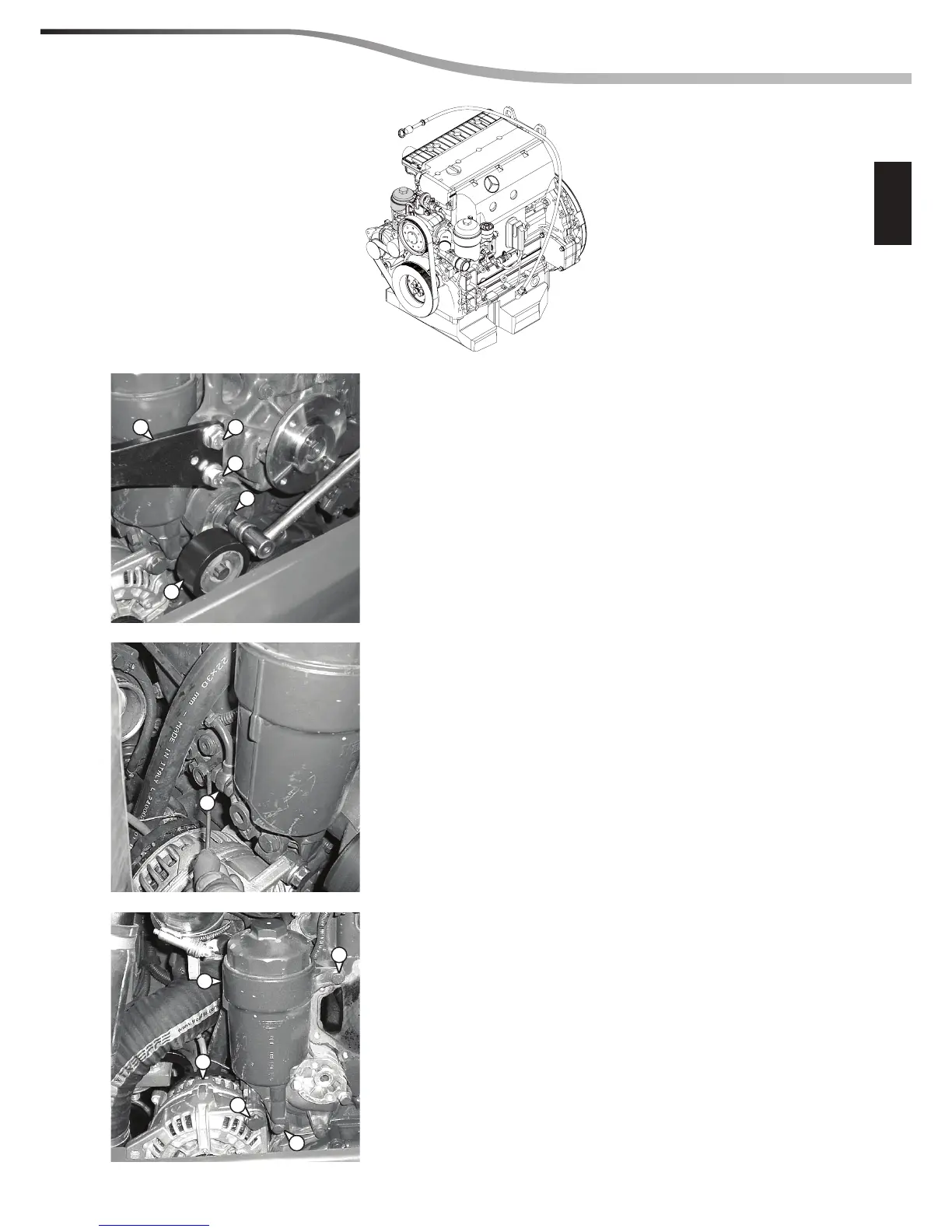

D - REMOVING THE OIL FILTER
Carry out operation B.
Slacken the screw (Ref. 1) and remove the belt tensioner (Ref. 2).
Slacken the screws (Ref. 3) and remove the bracket (Ref. 4).
Disconnect the oil inlet pipe (Ref. 5) .
Fix the pipe using a clamp so that it does not slip in the bottom
part of the engine housing and oil does not leak out.
Slacken the screw (Ref. 6) to free the alternator (Ref. 7) and rotate
it downwards.
Slacken the screws (Ref. 8) which block the oil  lter (Ref. 9) on
the engine supports and remove the  lter from the engine.
2
1
5
8
8
6
7
9
34
3
