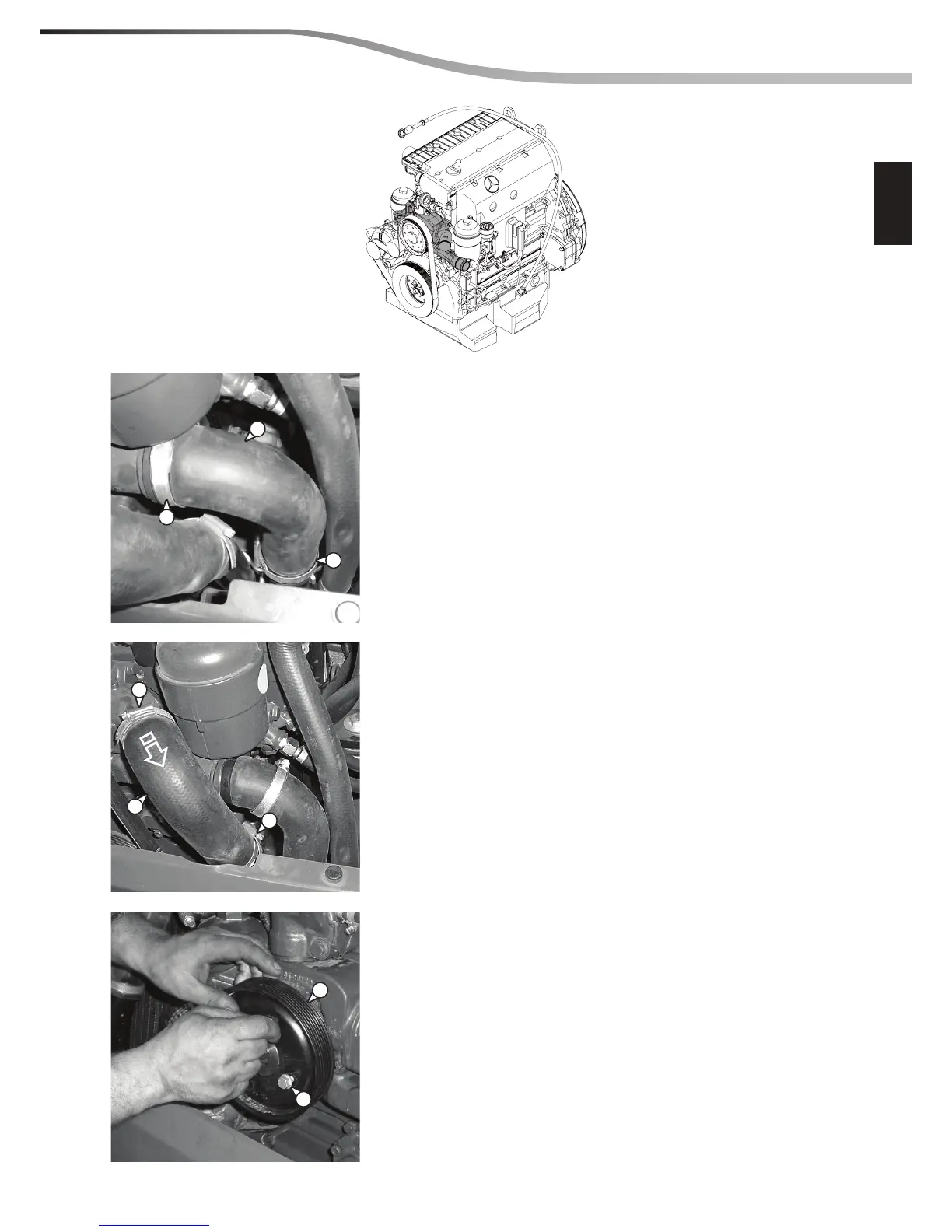

F - REMOVING THE ENGINE COOLING WATER PUMP
Carry out operation A.
b
Carry out the operations on the cooling system only if
the coolant temperature is below 30.
Slacken the 2 clamps (Ref. 1) on the lower hose (Ref. 2).
Place suitable sized containers to hold the quantity of liquid to
be collected under the engine compartment.
Disconnect the lower hose (Ref. 2) from the pump, slowly
discharge overpressure from the system, let the liquid drain out
of the cooling system, and empty it completely.
Slacken the 2 clamps (Ref. 3) on the upper hose (Ref. 4) and
disconnect it from the pump.
Slacken the 4 screws (Ref. 5) and remove the pulley (Ref. 6).
6
2
1
1
3
4
3
5
