10 ENGINE REMOVAL

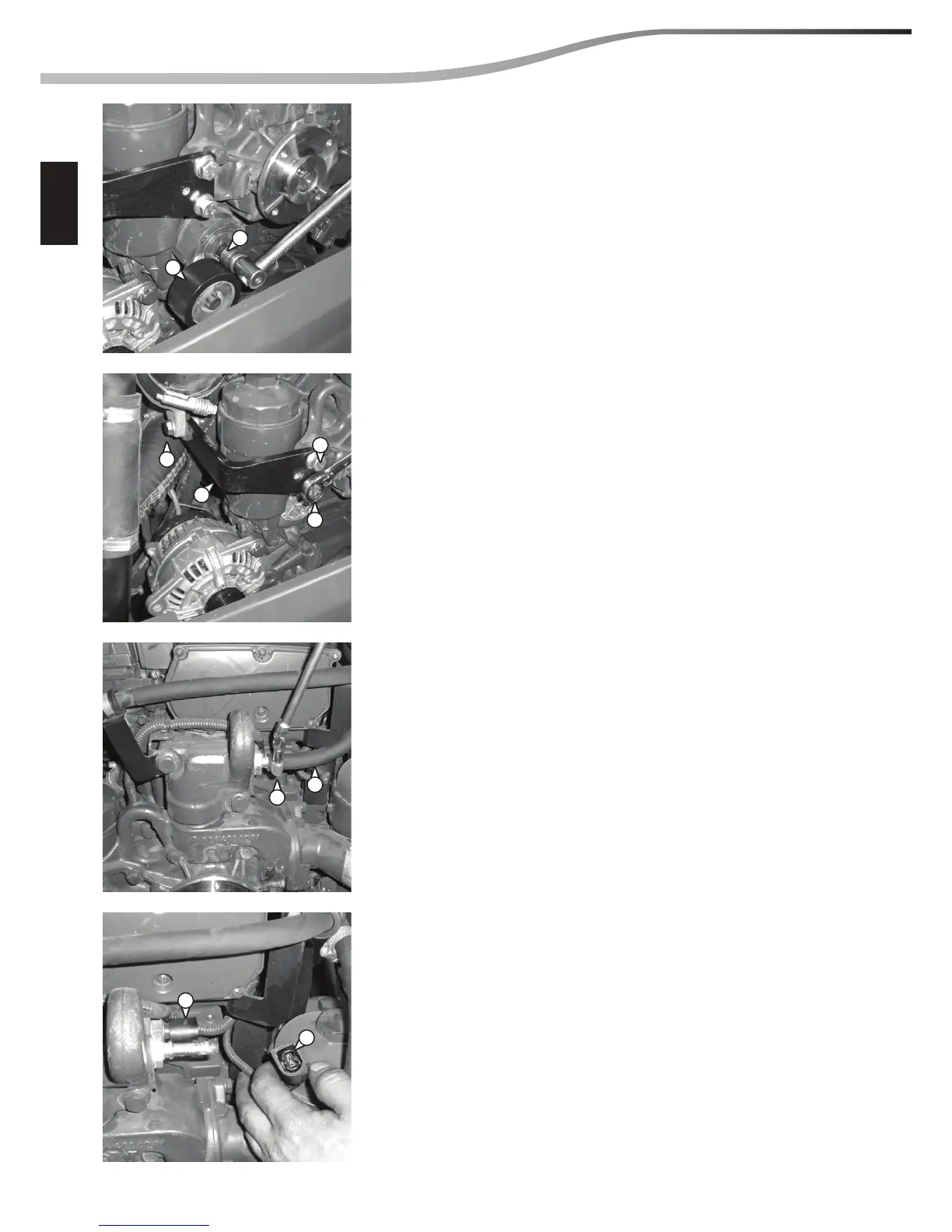

Slacken the screw (Ref. 7) and remove the belt tensioner (Ref. 8).
Slacken the screws (Ref. 9 and 10) and remove the bracket (Ref.
11).
Slacken the clamp (Ref. 12) and disconnect the drainage tube
(Ref. 13) from the thermostatic valve.
Disconnect the temperature sensor (Ref. 15) from the thermostatic
valve (Ref. 14).
