Manitou MHT 10225 - C - Removing the Starter Motor

(05/06/2012)10-06-M184EN
10
6 ENGINE REMOVAL
C - REMOVING THE STARTER MOTOR

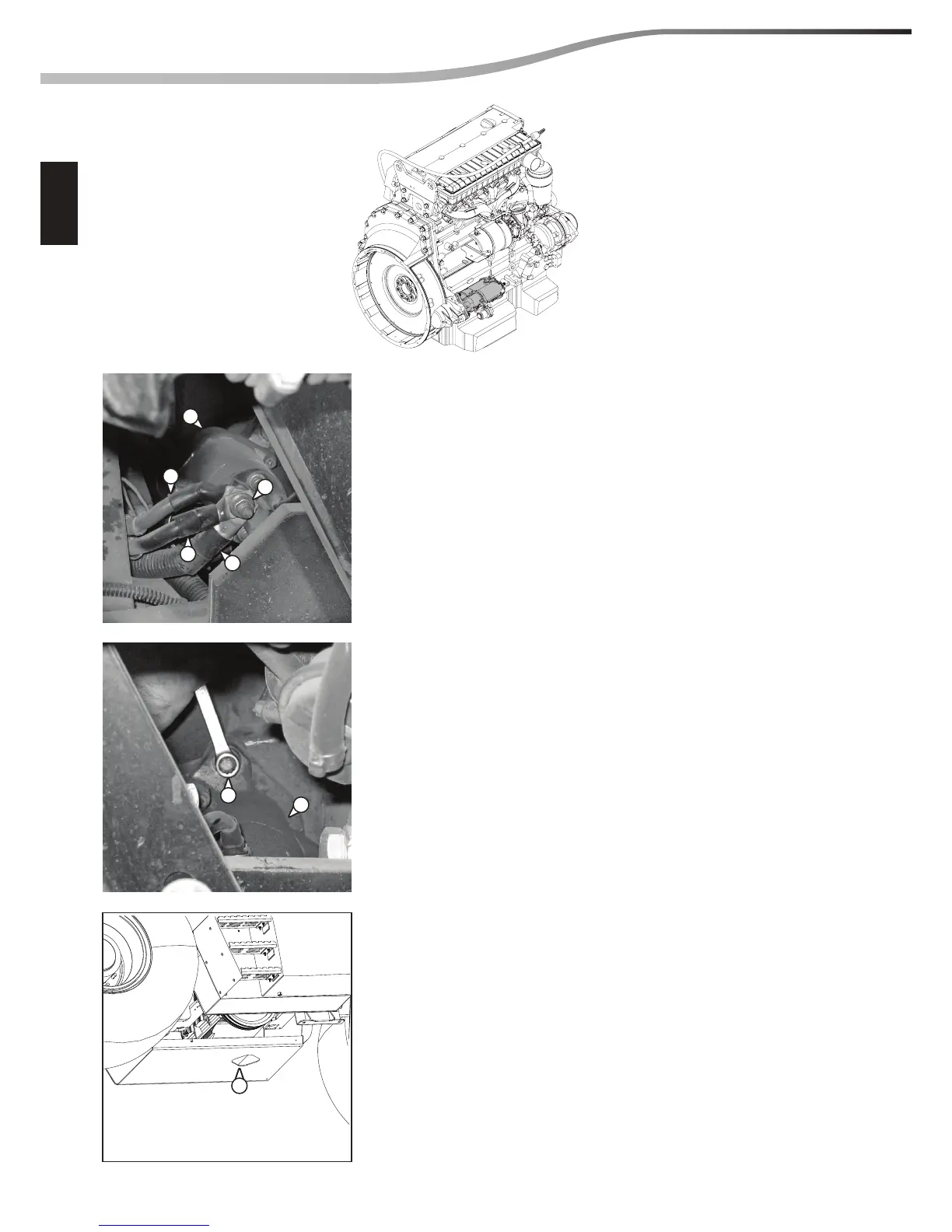

Slacken the nut (Ref. 1) and remove the electric wires (Ref. 2-3-4)
for the starter motor connection (Ref. 5)
Slacken the screws (Ref. 6) and remove the starter motor
(Ref. 5) from the engine base.
Remove the starter motor (Ref. 5) from the slot (Ref.f) under the
engine compartment.
5
5
4
1
2
3
6
7
