Manitou MHT 10225 - A - Reinserting the Turbocompressor

(25/11/2011)10-07-M184EN
10
12 ENGINE REFIT

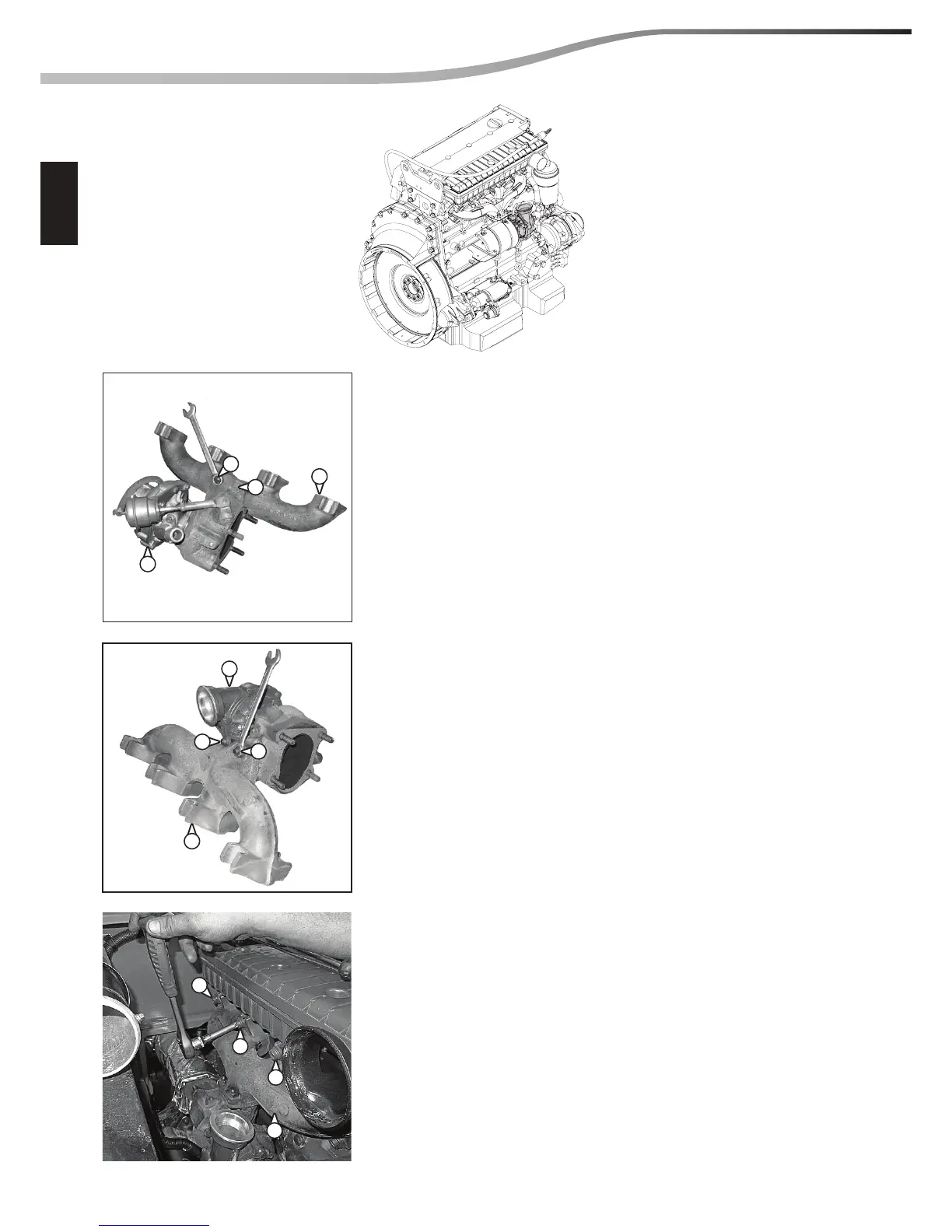

A - REINSERTING THE TURBOCOMPRESSOR
Re t the turbocompressor (Ref. 1) on the exhaust manifold (Ref.
2) by screwing the nuts (Ref. 3); use a 30 Nm tightening torque.
Re t the exhaust manifold (Ref. 2) on the engine base using the
8 screws (Ref. 4); use a 30 Nm tightening torque.
3
3
2
1
1
3
3
2
4
4
4
2
