Manitou MHT 10225 - Page 60

(25/11/2011) 10-07-M184EN
10

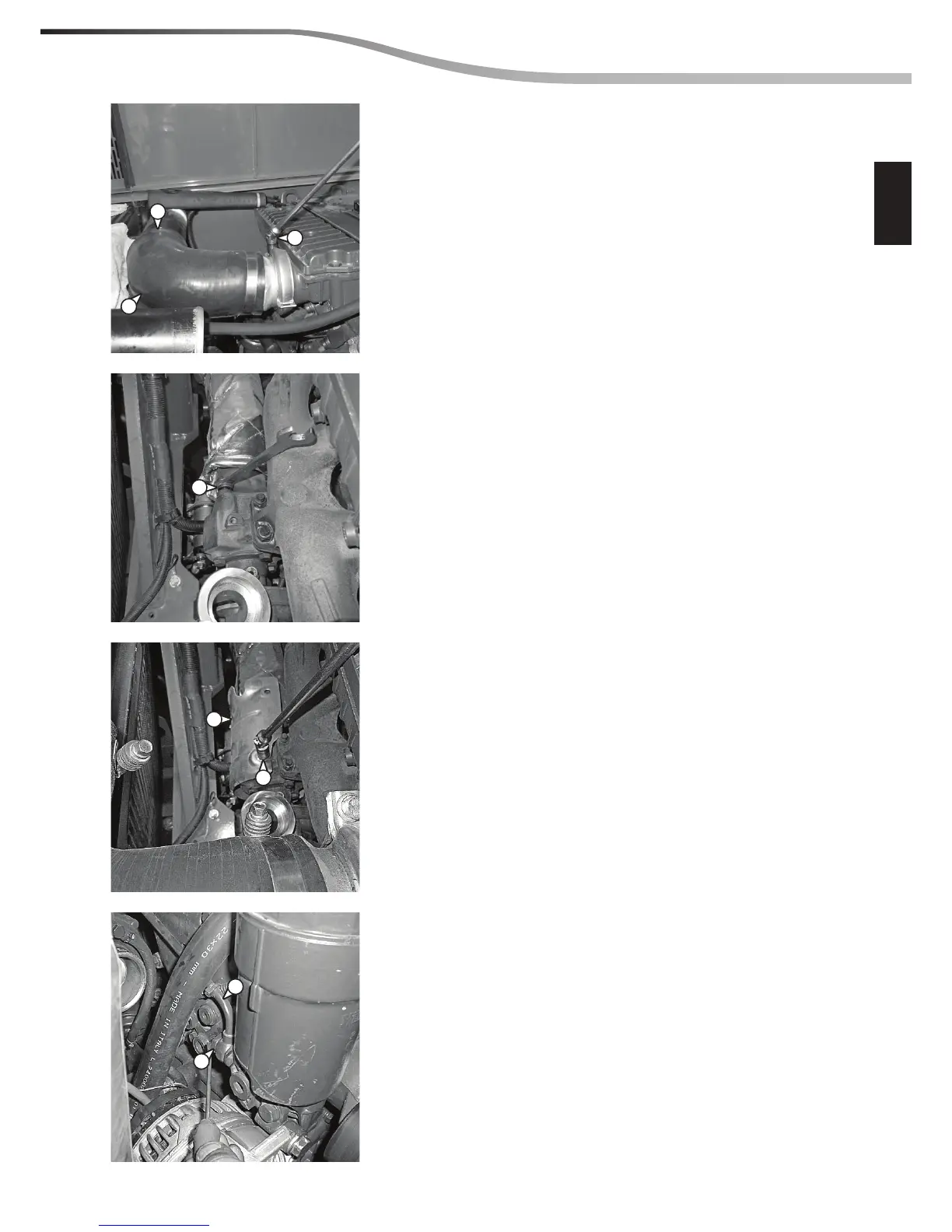

13ENGINE REFIT
Reconnect the suction hose (Ref. 5) to the engine and tighten
the 2 clamps (Ref. 6).
Block the turbocompressor to the engine by tightening the
screws (Ref. 7).
Re t the cover plate (Ref. 8) on the exhaust mnifold by means
of the 4 screws (Ref. 9).
Re t the lubrication extraction pipe (Ref. 10) by screwing in the
 tting (Ref. 11).
6
5
6
7
8
9
10
11
