Manitou MHT 10225 - Reinserting the Engine

(25/11/2011) 10-07-M184EN
10
3ENGINE REFIT
REINSERTING THE ENGINE

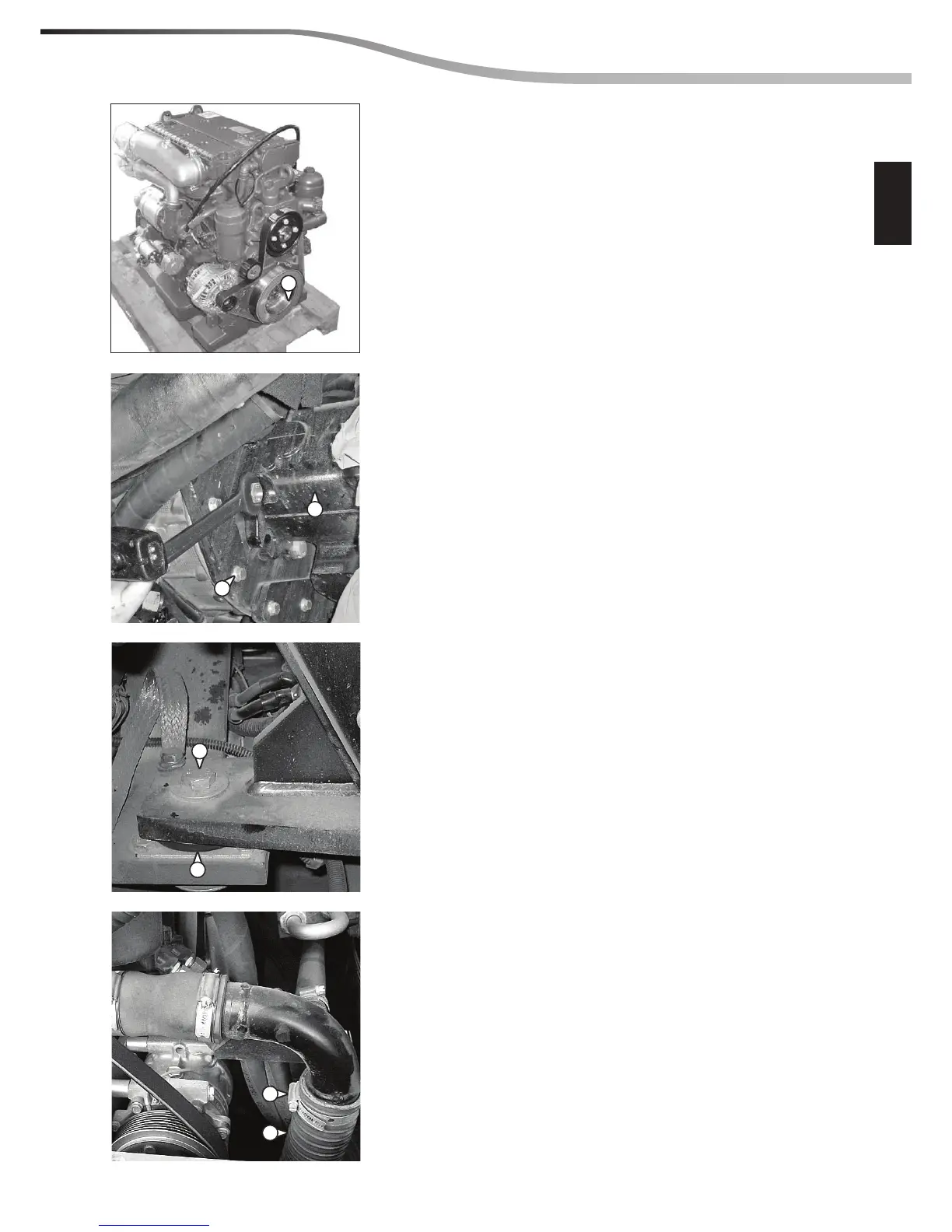

Secure the engine (Ref. 1) to an overhead crane and reposition
it on the vehicle.
Fit the screws (Ref. 2) to block the engine and remove the
hydraulic jack, positioned under the hydraulic pump (Ref. 3)
during the disassembly.
Using an overhead crane, insert the four silent blocks (Ref. 4)
and  x the engine to the chassis by means of the screws meant
for the purpose (Ref. 5).
Insert the hose (Ref. 6) on the water pump and tighten the
clamp (Ref. 7).
1
2
3
5
4
7
6
