(25/11/2011)10-07-M184EN
10
4 ENGINE REFIT

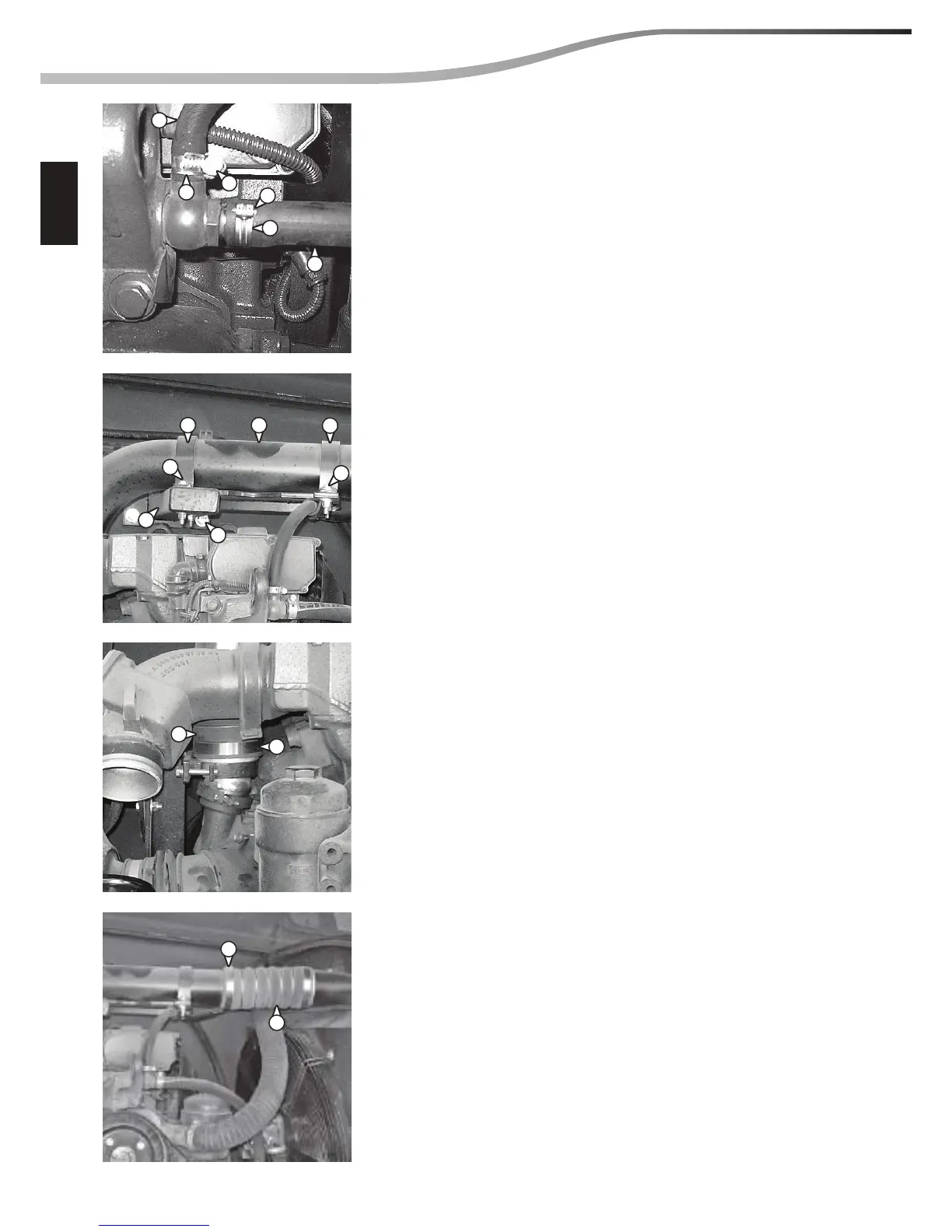

Connect the upper (Ref. 8) and lower (Ref. 9) heating pipes.
Tighten the clamps (Ref. 10) by tightening the screws (Ref. 11).
Fit the support (Ref. 12) on the vehicle by means of the screws
(Ref. 13).
Insert the cooling system pipe (Ref. 14) and tighten the brackets
(Ref. 15) by means of the screws (Ref. 16).
Insert the hose (Ref. 17) on the turbocompressor and tighten
the clamp (Ref. 18).
Insert the hose (Ref. 19) on the radiator pipe and tighten the
clamp (Ref. 20).
8
9
10
10
11
11
15
15
16
16
14
13
12
18
17
20
19
