5ENGINE REFIT

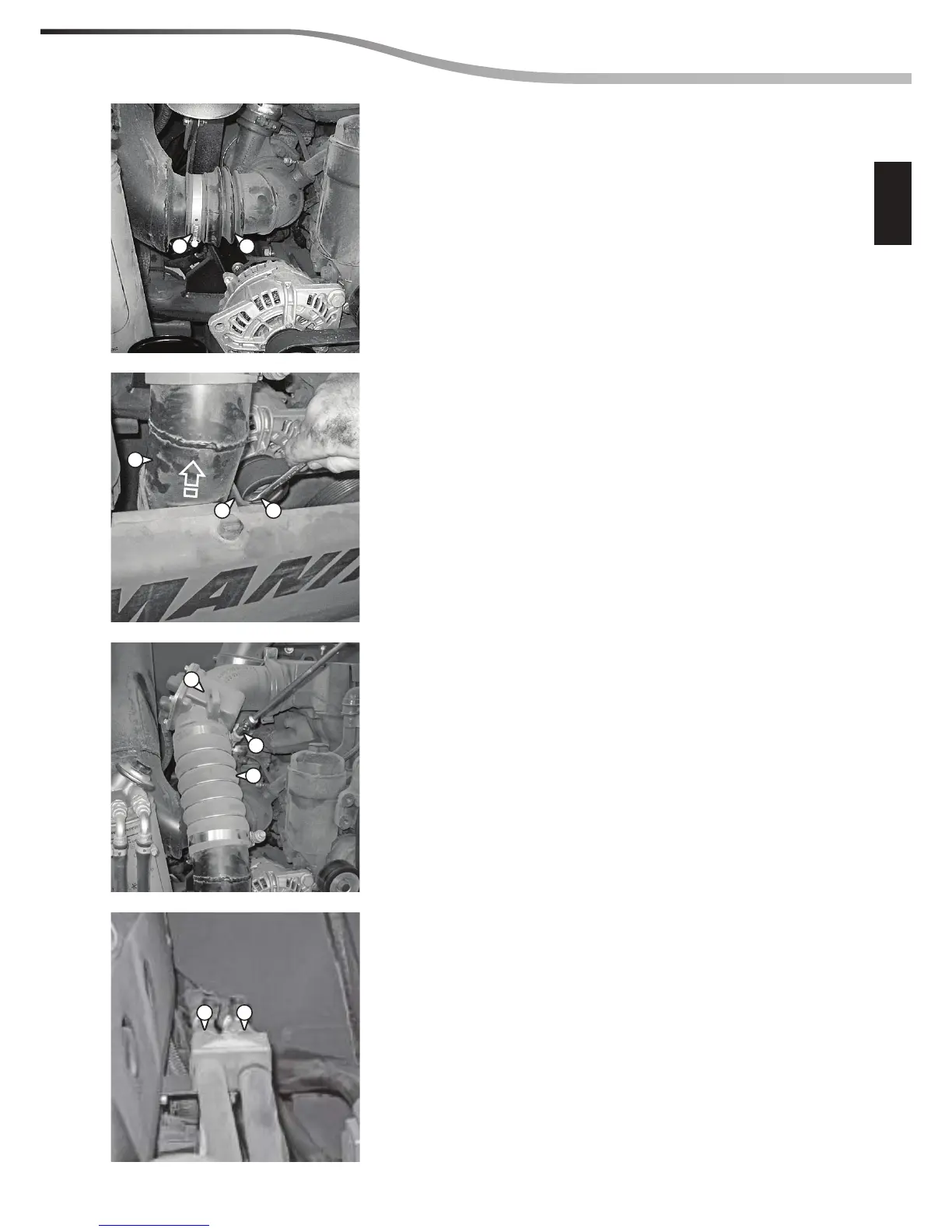

Insert the hose (Ref. 21) for the exhaust gases and tighten the
clamp (Ref. 22).
Restore the radiator pipe (Ref. 23) to its position.
Fit the bracket (Ref. 24) by means of the screws
(Rif. 25) to block the pipe.
Insert the hose (Ref. 26) on the suction duct
(Ref. 27) and tighten the clamp (Ref. 28).
Connect the tubes (Ref. 29) for the air conditioner on the
compressor.
22 21
23
2524
27
26
28
2929
