Manitou MHT 10225 - D - Reinserting the Oil Filter

(25/11/2011)10-07-M184EN
10
20 ENGINE REFIT
D - REINSERTING THE OIL FILTER

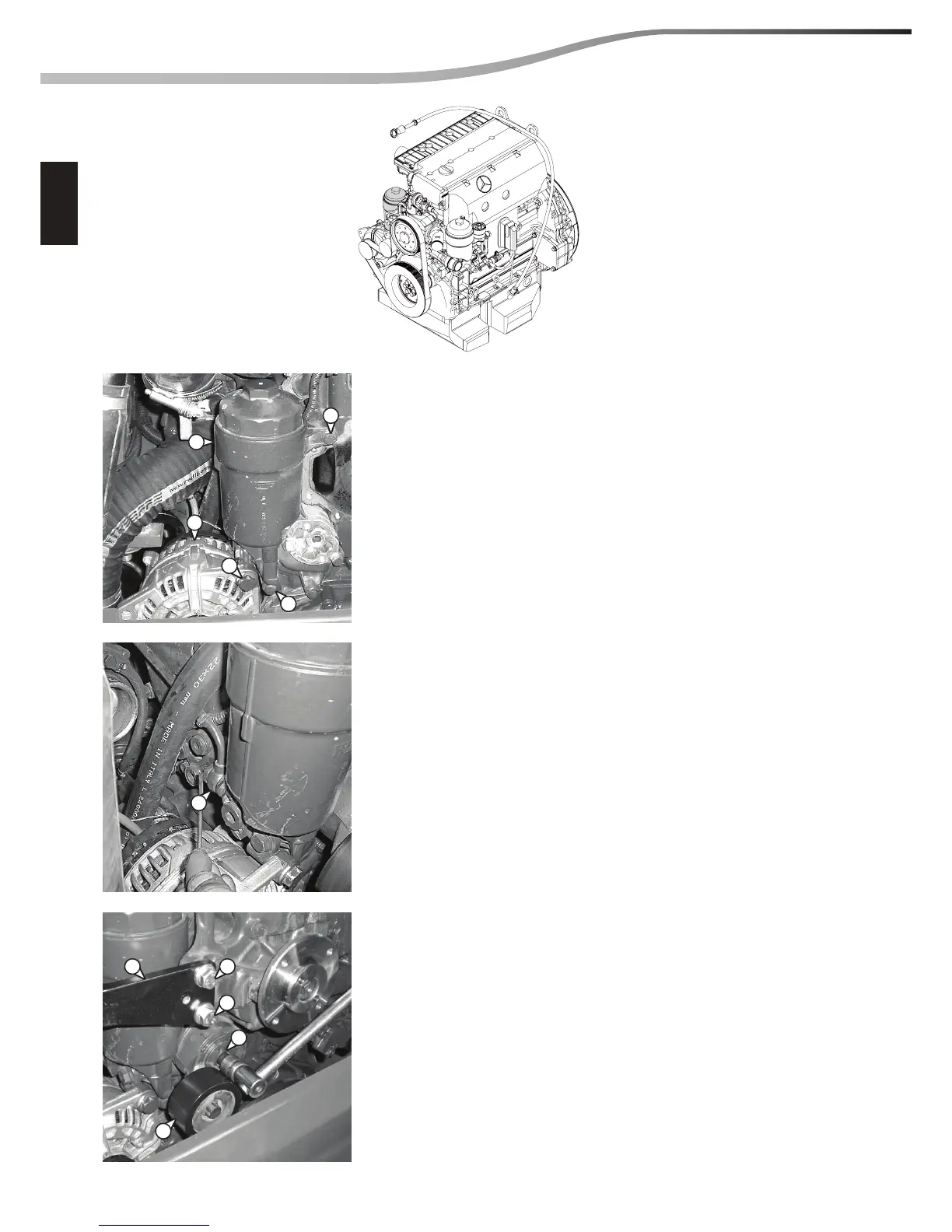

Reposition the  lter (Ref. 1) on the engine supports by means
of the screws (Ref. 2).
Restore the alternator (Ref. 3) to the correct position and tighten
the screws (Ref. 4).
Release the oil inlet pipe (Ref. 5) from the clamp by means of
which it is fixed in the disassembly phase and refit it on the
 lter (Ref. 1).
Reposition the tensioner (Ref. 6) using the screw (Ref. 7).
Reposition the bracket (Ref. 8) using the screws (Ref. 9).
